Fast Construction Emergency Bridge Prefab Steel Bridge For Emergency Transfer

Name: Fast Construction Emergency Bridge Prefab Steel Bridge For Emergency Transfer
Brand: EVERCROSS BRIDGE TECHNOLOGY (SHANGHAI) CO.,LTD.
SKU: COMPACT-200; COMPACT-100; CHINA 321 ; PB 100; LSB; GWD; DELTA; 450,etc
Price: 1,500.00 USD
Availability: InStock

Brand Name:	Evercross
Model Number:	COMPACT-200; COMPACT-100; CHINA 321 ; PB 100; LSB; GWD; DELTA; 450,etc
MOQ:	negotiation
Price:	1000USD ~ 2000USD Per ton
Delivery Time:	negotiation
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CNAS; COC; PVOC; SONCAP; CIDB;FORM E;FORM L; FORM M, etc

Product Name:

Emergency Mechanized Bridge

Crawler Loading:

25t

Wheel Load Axle Pressure:

10t

Length:

22.5m

Loading Capacity:

Hl93/Ha+20hb/T44/Class A/B/MLC110/dB24

Steel Grade:

S355/ S460/Gr 55c/Gr350/Gr50/Gr65/GB355/460

Packaging Details:

According to detailed order

Highlight:

Fast Construction Emergency Bridge

Fast Construction Prefab Steel Bridge

Emergency Transfer Prefab Steel Bridge

Product Description

Fast Construction Emergency Bridge Prefab Steel Bridge For Emergency Transfer

Product Specifications

Product Name	Emergency Mechanized Bridge
Crawler Loading	25t
Wheel Load Axle Pressure	10t
Length	22.5m
Loading Capacity	Hl93/Ha+20hb/T44/Class a/B/MLC110/dB24
Steel Grade	S355/ S460/Gr 55c/Gr350/Gr50/Gr65/GB355/460

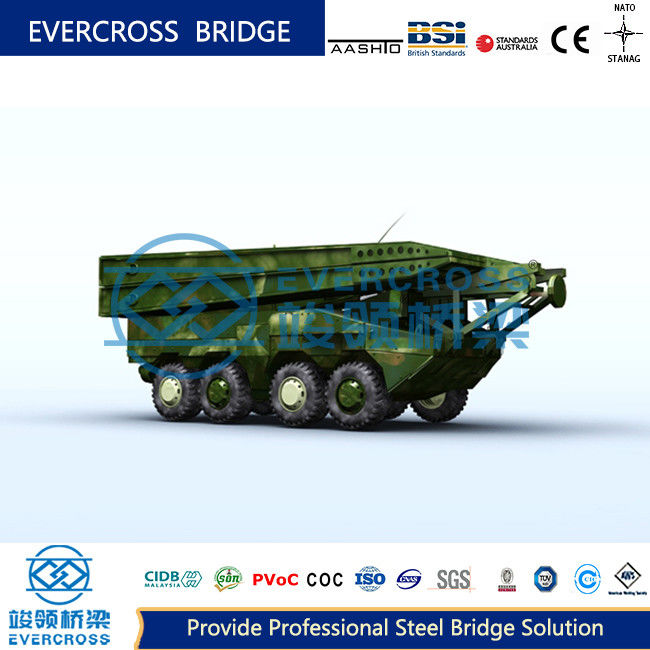

Emergency Mechanized Bridge Overview

The emergency mechanized bridge combines a prefabricated steel bridge with a specialized erecting vehicle, featuring rapid installation, high mechanization, and self-propelled operation. This system can deploy bridges across spans up to 19 meters with a 3.3m passable width, supporting vehicles with crawler loads up to 60 tons.

This critical rescue equipment quickly establishes temporary crossings over rivers, gullies, and damaged bridges, ensuring rapid transit for emergency personnel, supplies, and vehicles during disasters.

Technical Parameters

Gross weight	30.6t
Shipping dimensions (L×W×H)	11600mm × 3200mm × 3700mm
Design span	Single span 15m, unlimited continuous length
Design load	Crawler load 60t, wheeled axial load 13t
Bridge Deck	Steel bridge deck, width 3.8m
Installation time	Single span: 9-11min; 75m: 55-65min
Operators	Single span: 7 people; 75m: 12 people
Design scope	Max obstacle depth 5.5m, max flow rate 2m/s, adjustable height 3.32-5m

Key Advantages

Enhanced Safety

Mechanized operations minimize personnel exposure in hazardous environments, significantly reducing rescue worker risks.

Operational Flexibility

Quick withdrawal capability allows rapid redeployment to new emergency sites after mission completion.

Eco-Friendly Design

High efficiency reduces energy consumption and CO2 emissions compared to manual bridge alternatives.

Product Features

Vehicle-bridge integrated structure for rapid disaster site access
Excellent mobility with "bridge on vehicle" capability
High mechanization level for convenient operation
60-ton load capacity with 80 km/h maximum speed
Remote-controlled operation by two personnel
Adjustable bridge deck height for versatile applications

Applications

This emergency bridge system enables light equipment and vehicles to overcome natural obstacles including:

Earthquake disaster response for damaged infrastructure
Crossing small/medium rivers, dry ditches, and swamps
Emergency scenarios with bridge damage or road washouts
