GB355B Steel Convenient Transfer Mechanized Bridge Emergency Bridge

Name: GB355B Steel Convenient Transfer Mechanized Bridge Emergency Bridge
Brand: EVERCROSS BRIDGE TECHNOLOGY (SHANGHAI) CO.,LTD.
SKU: COMPACT-200; COMPACT-100; CHINA 321 ; PB 100; LSB; GWD; DELTA; 450,etc
Price: 1,500.00 USD
Availability: InStock

Brand Name:	Evercross
Model Number:	COMPACT-200; COMPACT-100; CHINA 321 ; PB 100; LSB; GWD; DELTA; 450,etc
MOQ:	negotiation
Price:	1000USD ~ 2000USD Per ton
Delivery Time:	negotiation
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CNAS; COC; PVOC; SONCAP; CIDB;FORM E;FORM L; FORM M, etc

Product Name:

Emergency Mechanized Bridge

Crawler Loading:

25t

Wheel Load Axle Pressure:

10t

Length:

22.5m

Loading Capacity:

Hl93/Ha+20hb/T44/Class A/B/MLC110/dB24

Steel Grade:

S355/ S460/Gr 55c/Gr350/Gr50/Gr65/GB355/460

Packaging Details:

According to detailed order

Highlight:

Convenient Transfer Mechanized Bridge

GB355B Steel Mechanized Bridge

GB355B Steel Emergency Bridge

Product Description

GB355B Steel Convenient Transfer Mechanized Bridge Emergency Bridge

Product Specifications

Attribute	Value
Product Name	Emergency Mechanized Bridge
Crawler Loading	25t
Wheel Load Axle Pressure	10t
Length	22.5m
Loading Capacity	Hl93/Ha+20hb/T44/Class a/B/MLC110/dB24
Steel Grade	S355/ S460/Gr 55c/Gr350/Gr50/Gr65/GB355/460

Product Overview

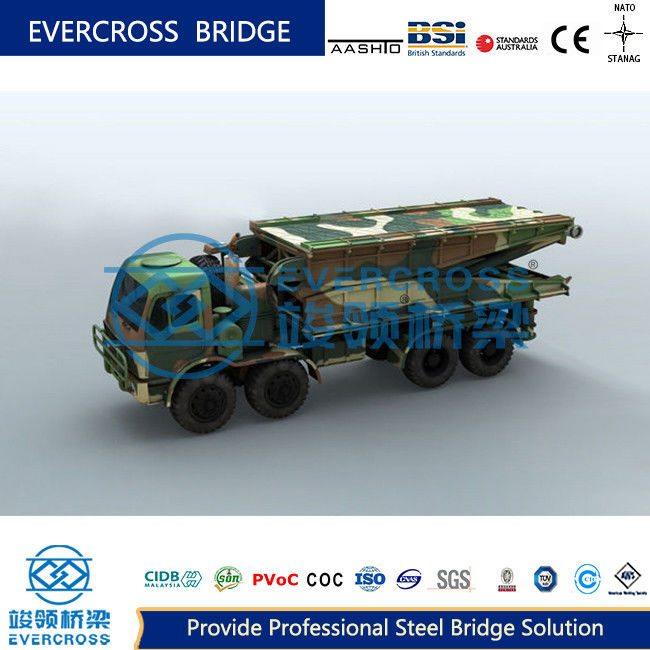

The GB355B Steel Bailey Bridge is a high-performance emergency mechanized bridge solution designed for rapid deployment in critical situations. Combining an emergency bridge with an erecting vehicle, this system features fast installation, high mechanization, self-propulsion, and self-withdrawal capabilities.

Technical Parameters

Gross weight	30.6t
Shipping dimensions (L × W × H)	11600mm × 3200mm × 3700mm
Design span	Single span 15m, unlimited continuous length
Design load	Crawler load 60t, wheeled axial load 13t
Bridge Deck	Steel bridge deck, width 3.8m
Installation time	Single span: 9-11min; Whole (75m): 55-65min
Operators (including drivers)	Single span: 7 people; Set (75m): 12 people
Design scope	Max obstacle depth 5.5m, max flow rate 2m/s, adjustable bridge floor height 3.32-5m

Key Advantages

Safety & Reliability

Reduces personnel risk through mechanized operations
High-strength materials and stable structure ensure performance in harsh environments

Efficiency & Environmental Benefits

Reduces energy consumption compared to manual bridges
Minimizes environmental impact through rapid deployment

Operational Flexibility

Quick withdrawal capability for rapid transfer between sites
Self-propelled functionality eliminates need for additional transport equipment

Product Features

Vehicle-bridge integrated structure for rapid deployment
Excellent mobility with "bridge on car" configuration
High mechanization level for convenient operation
Strong 60-ton carrying capacity with 80 km/h maximum speed
Remote-controlled operation by two operators
Adjustable bridge deck height for versatile applications

Applications

The emergency mechanized bridge is designed for supporting light equipment and vehicles to overcome various obstacles including mountain streams, ditches, rivers, and craters during rapid mobile operations.

Earthquake disaster response for damaged road bridges
Crossing small/medium rivers, dry trenches, and swamps
Emergency rescue operations for bridge damage and road washouts
