Composite Steel Cable Suspension Bridges With Iconic Structures

Name: Composite Steel Cable Suspension Bridges With Iconic Structures
Brand: EVERCROSS BRIDGE TECHNOLOGY (SHANGHAI) CO.,LTD.
SKU: COMPACT-200; COMPACT-100; CHINA 321 ; PB 100; LSB; GWD; DELTA; 450,etc
Price: 1,500.00 USD
Availability: InStock

Brand Name:	EVERCROSS
Model Number:	COMPACT-200; COMPACT-100; CHINA 321 ; PB 100; LSB; GWD; DELTA; 450,etc
MOQ:	negotiation
Price:	1000USD ~ 2000USD Per ton
Delivery Time:	negotiation
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CNAS; COC; PVOC; SONCAP; CIDB;FORM E;FORM L; FORM M, etc

Product Name:

Steel Cable Suspension Bridge

Material:

Steel

Spans:

Large Spans

Type:

Suspension Bridges

Usage:

Heavy Loading, Railway Traffic

Decking Material:

Steel Concrete

Packaging Details:

According to detailed order

Highlight:

Composite Steel Cable Suspension Bridges

Iconic Structures Steel Cable Suspension Bridges

Iconic Structures metal suspension bridge

Product Description

Composite Steel Cable Suspension Bridges With Iconic Structures

Key Specifications

Attribute	Value
Product Name	Steel Cable Suspension Bridge
Material	Steel
Spans	Large Spans
Type	Suspension Bridges
Usage	Heavy Loading, Railway Traffic
Decking Material	Steel Concrete

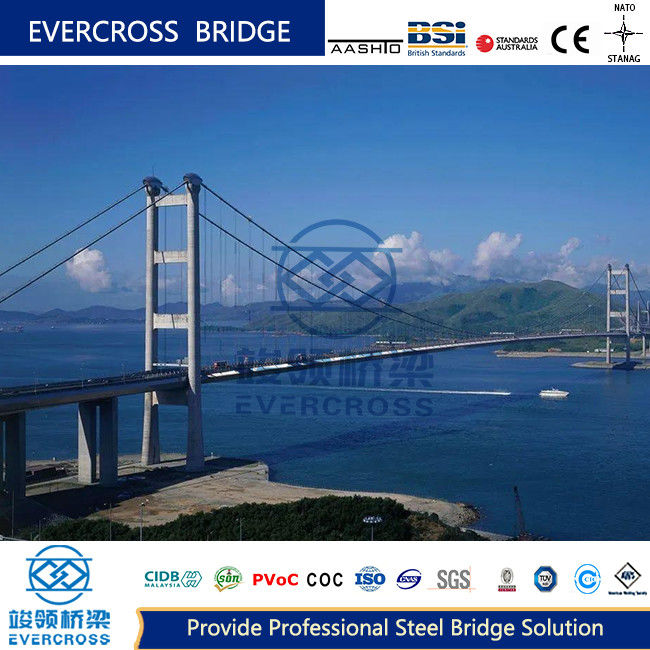

Steel Cable Suspension Bridges are iconic structures that utilize steel cables under tension to support the bridge deck. Known for their long spans and graceful appearance, these bridges are ideal for spans greater than 1000m.

Structural Components

The bridge consists of several key components working together:

Main Cable: Primary load-bearing component that deforms under load
Bridge Tower: Main vertical load-bearing structure
Stiffening Beam: Provides structural stiffness and ensures vehicle stability
Sling: Transmits loads between stiffened beam and main cable
Anchor: Secures main cable tension to the foundation
Saddle: Supports main cable at tower and anchor points

Main Cable Types

The main cable comes in two configurations:

Wire Rope Main Cable: 7-strand construction for smaller spans
Parallel Wire Bundle Main Cable: Prefabricated parallel steel wire strands for larger spans

Bridge Tower Configurations

Bridge towers are designed in various structural forms:

Rigid Tower: Minimal horizontal displacement
Flexible Tower: Significant horizontal displacement
Rocking Column Tower: Hinged single-column for small spans

Stiffening Beam Types

Various stiffening beam configurations are available:

Steel truss beams
Steel box beams
Concrete beams
Steel-concrete composite beams

Classification by Span Configuration

Single-span suspension bridge
Three-span suspension bridge
Four-span suspension bridge
Five-span suspension bridge

Anchoring Systems

Two primary anchoring methods are employed:

Ground Anchorage: Transfers tension to foundation via gravity or tunnel anchors
Self-Anchoring: Directly transmits tension to stiffening beam

Construction Process

Anchor foundation and bridge tower construction
Superstructure component fabrication
Main cable installation and tensioning
Stiffened beam segment hoisting and assembly
Bridge deck construction

Protection Systems

Comprehensive protection measures ensure longevity:

Concrete Protection: High-performance concrete, protective coatings, corrosion inhibitors
Steel Protection: Paint coatings, thermal spray metals, weathering steel

Applications

Highway bridges spanning large bodies of water or deep valleys
Pedestrian and cyclist crossings in scenic or urban areas

Advantages

Exceptional span capacity (1000m+)
Superior seismic performance
Lightweight yet strong structure
Aesthetic, graceful appearance

Evercross Steel Bridges Overview

Product Range	Bailey bridge, Modular bridge, Truss Bridge, Warren bridge, Arch bridge, Plate bridge, Beam bridge, Box girder bridge, Suspension bridge, Cable-stayed bridge, Floating bridge
Design Spans	10M TO 300M Single span
Carriage Way	SINGLE LANE, DOUBLE LANES, MULTILANE, WALKWAY
Loading Capacity	AASHTO HL93.HS15-44, HS20-44, HS25-44, BS5400 HA+20HB, HA+30HB, AS5100 Truck-T44, IRC 70R Class A/B, NATO STANAG MLC80/ MLC110
Steel Grade	EN10025 S355JR S355J0/EN10219 S460J0/ EN10113 S460N/BS4360 Grade 55C, AS/NZS3678/3679/1163 Grade 350, ASTM A572/A572M GR50/GR65, GB1591 GB355B/C/D/460C
Certificates	ISO9001, ISO14001, ISO45001, EN1090, CIDB, COC, PVOC, SONCAP
