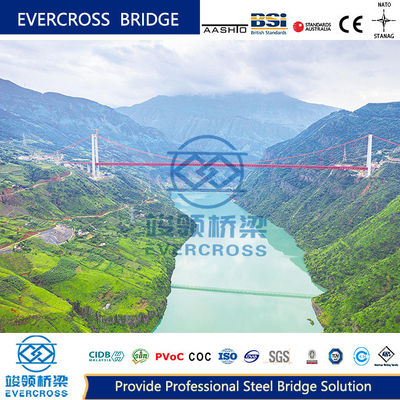

High Stiffness Structural Steel Cable Suspension Bridge Professtional Painted

Name: High Stiffness Structural Steel Cable Suspension Bridge Professtional Painted
Brand: EVERCROSS BRIDGE TECHNOLOGY (SHANGHAI) CO.,LTD.
SKU: COMPACT-200; COMPACT-100; CHINA 321 ; PB 100; LSB; GWD; DELTA; 450,etc
Price: 1,500.00 USD
Availability: InStock

Brand Name:	EVERCROSS
Model Number:	COMPACT-200; COMPACT-100; CHINA 321 ; PB 100; LSB; GWD; DELTA; 450,etc
MOQ:	negotiation
Price:	1000USD ~ 2000USD Per ton
Delivery Time:	negotiation
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CNAS; COC; PVOC; SONCAP; CIDB;FORM E;FORM L; FORM M, etc

Product Name:

Steel Cable Suspension Bridge

Material:

Steel

Spans:

Large Spans

Type:

Suspension Bridges

Usage:

Heavy Loading, Railway Traffic

Decking Material:

Steel Concrete

Packaging Details:

According to detailed order

Highlight:

Painted Steel Cable Suspension Bridge

Painted steel wire suspension bridge

structural Steel Cable Suspension Bridge

Product Description

High Stiffness Structural Steel Cable Suspension Bridge

Product Specifications

Attribute	Value
Product Name	Steel Cable Suspension Bridge
Material	Steel
Spans	Large Spans
Type	Suspension Bridges
Usage	Heavy Loading, Railway Traffic
Decking Material	Steel Concrete

Structural Overview

The Steel Cable Suspension Bridge is a flexible suspension combination system composed of a main cable and stiffened beam, combining the stress characteristics of both cable and beam structures. Key components include:

Bridge tower
Main cable
Sling
Stiffening beam
Anchor
Saddle

Load Characteristics

The load is transmitted from the sling to the cable, then to the anchor, pier and tower. Both the main cable and stiffened beam bear the force equally under external loads.

Key Structural Components

Main Cable: Primary load-bearing component that deforms under load, affecting the bridge's internal force and deformation. Available in wire rope or parallel wire bundle configurations.

Bridge Tower: Main vertical load-bearing structure available in rigid, flexible, or rocking column configurations.

Stiffening Beam: Secondary structure ensuring vehicle stability, available in steel truss, steel box, concrete, or composite forms.

Classification Types

By span number: Single-span, three-span, four-span, five-span
By anchoring: Ground anchor or self-anchoring systems

Construction Process

The construction sequence includes anchor foundation, bridge tower construction, main cable installation, stiffened beam assembly, and deck completion. The width-span ratio typically ranges from 1/60 to 1/40 for optimal lateral stiffness.

Protection Systems

Concrete Protection: High-performance concrete, protective coatings, corrosion inhibitors

Steel Protection: Paint coatings, thermal spray metals, weathering steel

Key Advantages

Superior span capacity (1000m+)
Excellent seismic performance
Lightweight structural appearance
Adaptable to various loading requirements

Note: Design and construction require careful engineering analysis of loadings, material properties, and site conditions. Regular maintenance and inspection are essential for long-term safety.

Evercross Steel Bridges Specifications

Category	Specifications
Bridge Types	Bailey bridge, Modular bridge, Truss Bridge, Warren bridge, Arch bridge, Plate bridge, Beam bridge, Box girder bridge, Suspension bridge, Cable-stayed bridge, Floating bridge
Design Spans	10M to 300M Single span
Carriage Way	SINGLE LANE, DOUBLE LANES, MULTILANE, WALKWAY
Loading Capacity	AASHTO HL93.HS15-44, HS20-44, HS25-44, BS5400 HA+20HB, HA+30HB, AS5100 Truck-T44, IRC 70R Class A/B, NATO STANAG MLC80/MLC110, Truck-60T, Trailer-80/100Ton
Steel Grade	EN10025 S355JR S355J0/EN10219 S460J0/ EN10113 S460N/BS4360 Grade 55C, AS/NZS3678/3679/1163/Grade 350, ASTM A572/A572M GR50/GR65, GB1591 GB355B/C/D/460C
Certificates	ISO9001, ISO14001, ISO45001, EN1090, CIDB, COC, PVOC, SONCAP
