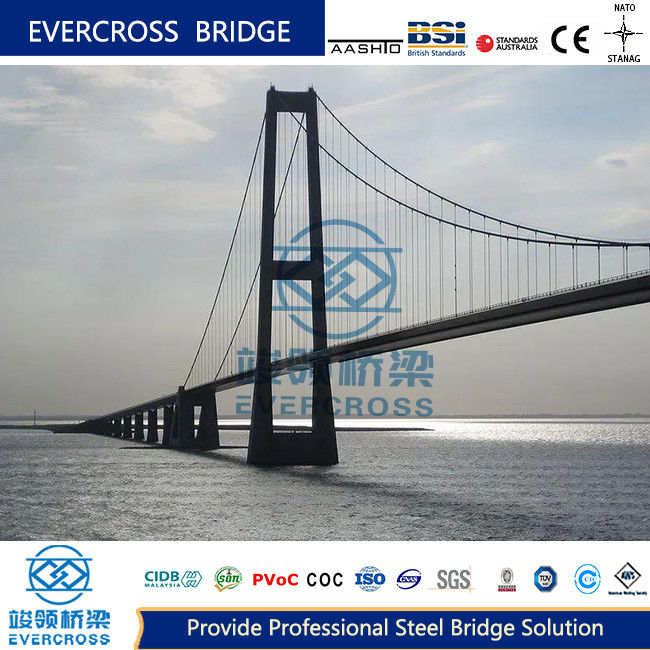

High Strength Cable Stayed Suspension Bridge Customized Large Span

Name: High Strength Cable Stayed Suspension Bridge Customized Large Span
Brand: EVERCROSS BRIDGE TECHNOLOGY (SHANGHAI) CO.,LTD.
SKU: COMPACT-200; COMPACT-100; CHINA 321 ; PB 100; LSB; GWD; DELTA; 450,etc
Price: 1,500.00 USD
Availability: InStock

Brand Name:	EVERCROSS
Model Number:	COMPACT-200; COMPACT-100; CHINA 321 ; PB 100; LSB; GWD; DELTA; 450,etc
MOQ:	negotiation
Price:	1000USD ~ 2000USD Per ton
Delivery Time:	negotiation
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CNAS; COC; PVOC; SONCAP; CIDB;FORM E;FORM L; FORM M, etc

Product Name:

Steel Cable Suspension Bridge

Material:

Steel

Spans:

Large Spans

Type:

Suspension Bridges

Usage:

Heavy Loading, Railway Traffic

Decking Material:

Steel Concrete

Packaging Details:

According to detailed order

Highlight:

Customized Cable Stayed Suspension Bridge

Large Span Cable Stayed Suspension Bridge

Customized suspended deck suspension bridge

Product Description

High Strength Cable Stayed Suspension Bridge Customized Large Span

Product Specifications

Product Name	Steel Cable Suspension Bridge
Material	Steel
Spans	Large Spans
Type	Suspension Bridges
Usage	Heavy Loading, Railway Traffic
Decking Material	Steel Concrete

Product Description

The Steel Cable Suspension Bridge is a flexible suspension combination system composed of a main cable and stiffened beam, combining the stress characteristics of both cable and beam structures. This engineering solution is ideal for spans exceeding 1000m, making it the preferred choice for large-scale bridge projects.

Structural Components

Main Cable: Primary load-bearing component that deforms under load, affecting the bridge's internal force and deformation

Bridge Tower: Main vertical load-bearing structure that resists vertical forces

Stiffening Beam: Secondary structure ensuring vehicle stability and providing structural stiffness

Sling: Force transmission component connecting stiffened beam to main cable

Anchor: Structure that anchors the main cable and transmits tension to the foundation

Main Cable Types

Wire Rope Main Cable: Twisted strands used for small span suspension bridges (typically 7 strands)

Parallel Wire Bundle Main Cable: Prefabricated parallel steel wire strands (PPWS method) for accelerated construction

Bridge Tower Configurations

Rigid Tower: Minimal horizontal displacement at top

Flexible Tower: Significant horizontal displacement at top

Rocking Column Tower: Hinged single-column structure for small spans

Stiffening Beam Types

Available in multiple configurations including steel truss beams, steel box beams, concrete beams, and steel-mixed composite beams.

Classification

By Suspension Span: Single-span, three-span, four-span, and five-span configurations available

By Anchoring Form: Ground anchor (tension transferred to foundation) or self-anchoring (tension transferred to stiffening beam)

Protection Systems

Comprehensive protection measures ensure long-term durability:

Concrete Structure: High-performance concrete, protective coatings, reinforcement protection

Steel Structure: Paint coatings, thermal spray protection, weathering steel, environmental controls

Key Advantages

Superior span capacity exceeding 1000m

Excellent seismic performance and structural flexibility

Lightweight yet strong appearance

Material-efficient design minimizing weight and cost

Resilience against dynamic forces including wind and traffic loads

Evercross Steel Bridges Overview

Product Line	Bailey bridge (Compact-200, Compact-100, LSB, PB100, China-321, BSB) Modular bridge (GWD, Delta, 450-type, etc.) Truss Bridge, Warren bridge, Arch bridge Plate bridge, Beam bridge, Box girder bridge Suspension bridge, Cable-stayed bridge, Floating bridge
Design Spans	10M TO 300M Single span
Carriage Way	SINGLE LANE, DOUBLE LANES, MULTILANE, WALKWAY
Loading Capacity	AASHTO HL93.HS15-44, HS20-44, HS25-44 BS5400 HA+20HB, HA+30HB AS5100 Truck-T44 IRC 70R Class A/B NATO STANAG MLC80/ MLC110 Truck-60T, Trailer-80/100Ton
Steel Grade	EN10025 S355JR S355J0/EN10219 S460J0/ EN10113 S460N/BS4360 Grade 55C AS/NZS3678/ 3679/ 1163/ Grade 350 ASTM A572/A572M GR50/GR65 GB1591 GB355B/C/D/460C
Certificates	ISO9001, ISO14001, ISO45001, EN1090, CIDB, COC, PVOC, SONCAP
