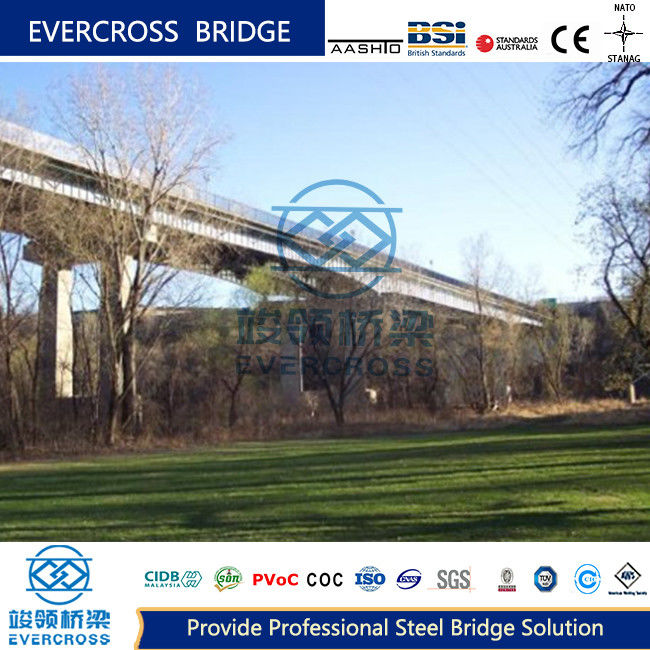

Steel plate girder bridge is a bridge composed of steel plates welded, bolted or riveted to form a solid belly steel beam as the main bearing structure, and the cross section is mostly I-shaped.

According to the driving mode, it is divided into: upper bearing plate beam and bottom bearing plate beam.

According to the connection: riveted plate beam, fully welded plate beam and bolted welded plate beam.

The economic span of simply supported steel plate girder bridge is generally below 40m, and the economic span of continuous steel plate girder bridge can reach 60m.

1. Composition of upper bearing plate and beam:

• Load-bearing structure (main beam), bridge floor, connecting system, support
• No road and bridge structure (deck system)
• Load-bearing structure (main beam): composed of two I-beams
• Bridge deck: bridge pillow, track, guard rail, fender, hook bolt composition
• Connection system: upper horizontal longitudinal link, lower horizontal longitudinal link, cross link, cross brace composition

The upper structure of the upper bearing steel plate girder bridge mainly includes: kingbeam, bracing, bridge floor, support.

The bridge deck is located on the upper flange of the main beam. Longitudinal connection bridge deck system. The main load-bearing structure is composed of two steel plate beams, which mainly bear vertical loads.

The small span can be used equal section beam. The large span can be used variable section beam.

The vertical stiffener and horizontal stiffener are set at the same time to ensure the local stability of the web.

The vertical stiffener at the end of the beam is called the end stiffener, which transmits the beam end reaction force.

Simple structure, save steel, can be transported in the whole hole, the whole hole erection, often used to small span.

When the span is less than 40m, the steel plate girder bridge is more economical than the steel truss bridge, so the small-span steel bridge is commonly used as a plate girder bridge.

Composition of Undercarriage steel plate girder bridge:

• Load-bearing structure (main beam), bridge deck, connecting system, bridge deck system, support
• Load-bearing structure (main beam): Composed of two I-beams, the center distance of the two main beams in standard design is 5.4m
• The structure is the same as the upper bearing plate beam
• Bridge deck: bridge pillow, track, rail, fender, hook bolt composition, structure with the upper bearing plate beam
• The bridge deck is located at the lower flange of the main beam

Building height (from rail bottom to beam bottom) is low.

Use more materials (increase the bridge floor system) and manufacturing also cost labor.

Because of the width, it cannot be transported in the whole hole, which increases the workload of loading and framing.

railway steel plate beam and highway steel plate beam

• The components are particularly suitable for manufacturing by industrial methods, easy to transport, and the installation speed of the site is fast, so the construction period of the steel bridge is short.
• Steel Bridges are easy to repair and replace after damage.
• The weather resistance is poor, easy to rust, and the noise is large and the maintenance cost is high when the railway steel bridge adopts the open deck.

• Simple structure
• Easy production
• Whole hole transportation
• Convenient installation and maintenance and maintenance
