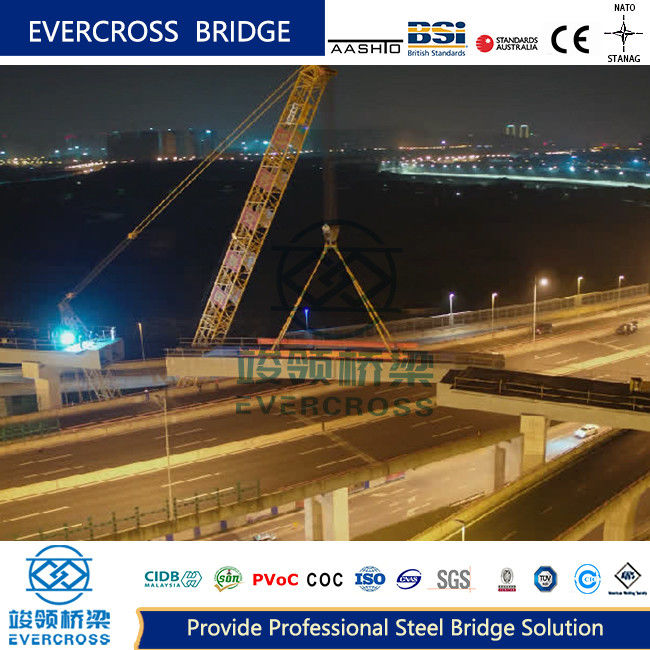

OEM Simple Prefabricated Steel Box Girder Bridge Large Span Sleek Design

Name: OEM Simple Prefabricated Steel Box Girder Bridge Large Span Sleek Design
Brand: EVERCROSS BRIDGE TECHNOLOGY (SHANGHAI) CO.,LTD.
SKU: COMPACT-200; COMPACT-100; CHINA 321 ; PB 100; LSB; GWD; DELTA; 450,etc
Price: 1,500.00 USD
Availability: InStock

Brand Name:	EVERCROSS
Model Number:	COMPACT-200; COMPACT-100; CHINA 321 ; PB 100; LSB; GWD; DELTA; 450,etc
MOQ:	negotiation
Price:	1000USD ~ 2000USD Per ton
Delivery Time:	negotiation
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CNAS; COC; PVOC; SONCAP; CIDB;FORM E;FORM L; FORM M, etc

Product Name:

Steel Box-girder Bridge

Bridge Deck:

Concrete

Type:

Steel Box Girder Bridges

Material:

Prefabricated Steel

Application:

Road/Bridge

Design:

As Needs

Load Capacity:

High

Weight:

5000tons

Aesthetics:

Sleek

Weather Resistance:

Excellent

Lifespan:

100years

Height:

Maintenance:

Low

Cost:

Moderate

Corrosion Resistance:

Strong

Length:

5000m

Width:

10m

Packaging Details:

According to detailed order

Highlight:

Prefabricated Steel Box Girder Bridge

Large Span Steel Box Girder Bridge

OEM Box Girder Bridges

Product Description

OEM Simple Prefabricated Steel Box Girder Bridge Large Span Sleek Design

Product Specifications

Attribute	Value
Product Name	Steel Box-girder bridge
Bridge Deck	Concrete
Type	Steel Box Girder Bridges
Material	Prefabricated Steel
Application	Road/Bridge
Design	As Needs
Load Capacity	High
Weight	5000tons
Aesthetics	Sleek
Weather Resistance	Excellent
Lifespan	100years
Height	3m
Maintenance	Low
Cost	Moderate
Corrosion Resistance	Strong
Length	5000m
Width	10m

Product Description

The steel box-girder bridge is composed of top plate (bridge panel), beam web, bottom plate, longitudinal stiffener, transverse stiffener, and diaphragm plate (cross beam). The thickness of the top plate, beam web and bottom plate is generally 12~30mm, with secondary plate thickness of 10~20mm.

Orthotropic Steel Bridge Panels

The basic forms of longitudinal rib section are open and closed. The cross-section form of the ribs is typically inverted T shape, with spacing determined by the span of the longitudinal ribs. Transverse ribs feature notches to allow continuous passage of longitudinal ribs.

Structural Forms

Single Box Steel Beam Bridge: Ideal for bridges with width ≤3 lanes or width-to-span ratio <1/10. For 4-6 lanes, double width single box girder bridges can be implemented.

Double Box Steel Girder Bridge: Used when bridge width is large or single box size becomes impractical for production, transportation, or installation.

Multi-box Steel Girder Bridge: Optimal for small spans with large bridge widths, featuring uniformly-spaced main beams for balanced force distribution.

Structural Components

Longitudinal Beam

Reduces span of reinforced concrete bridge panels (≤3m spacing) and enhances steel bridge panel stiffness. For steel panels with small beam spacing, longitudinal beams may be omitted.

Transverse Beam

Ensures even stress distribution across multiple boxes, supports longitudinal beams/bridge panels, and improves overall torsional resistance. Spacing ≤6m with longitudinal beams, ≤20m without.

Support Systems

Single-box bridges require two end supports for stability. Multi-box bridges use one support per box. Temporary fulcrums with jacks provide additional structural reinforcement during installation.

Mechanical Characteristics

Potential Failure Modes:

Compression flange instability under bending moment
Box girder distortion under torque
Web crumpling near concentrated forces

Structural Reinforcement Measures:

Transverse partitions to prevent distortion
Stiffening ribs for compression flange stability
Web stiffeners to resist buckling
Proper rib spacing during fabrication

Key Advantages

Structural Efficiency: Superior strength-to-weight ratio enables longer spans with less material
Stiffness & Stability: Closed box section provides high torsional rigidity and bending resistance
Versatility: Adaptable to straight, curved, or cable-stayed configurations
Construction Efficiency: Prefabricated modules reduce on-site assembly time
Durability: Corrosion-resistant steel ensures decades of service with proper maintenance

Evercross Steel Bridges Specifications

Bridge Types	Bailey bridge (Compact-200, Compact-100, LSB, PB100, China-321, BSB), Modular bridge (GWD, Delta, 450-type), Truss Bridge, Warren bridge, Arch bridge, Plate bridge, Beam bridge, Box girder bridge, Suspension bridge, Cable-stayed bridge, Floating bridge
Design Spans	10M TO 300M Single span
Carriage Way	SINGLE LANE, DOUBLE LANES, MULTILANE, WALKWAY
Loading Capacity	AASHTO HL93.HS15-44, HS20-44, HS25-44, BS5400 HA+20HB, HA+30HB, AS5100 Truck-T44, IRC 70R Class A/B, NATO STANAG MLC80/MLC110, Truck-60T, Trailer-80/100Ton
Steel Grade	EN10025 S355JR S355J0/EN10219 S460J0/EN10113 S460N/BS4360 Grade 55C, AS/NZS3678/3679/1163/Grade 350, ASTM A572/A572M GR50/GR65, GB1591 GB355B/C/D/460C
Certifications	ISO9001, ISO14001, ISO45001, EN1090, CIDB, COC, PVOC, SONCAP
