Temporary Prefabricated Steel Bailey Bridge For Car And Pedestrian BS5400 Standard

Name: Temporary Prefabricated Steel Bailey Bridge For Car And Pedestrian BS5400 Standard
Brand: EVERCROSS BRIDGE TECHNOLOGY (SHANGHAI) CO.,LTD.
SKU: COMPACT-200; COMPACT-100; CHINA 321 ; PB 100; LSB; GWD; DELTA; 450,etc
Price: 1,500.00 USD
Availability: InStock

Brand Name:	EVERCROSS
Model Number:	COMPACT-200; COMPACT-100; CHINA 321 ; PB 100; LSB; GWD; DELTA; 450,etc
MOQ:	negotiation
Price:	1000USD ~ 2000USD Per ton
Delivery Time:	negotiation
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CNAS; COC; PVOC; SONCAP; CIDB;FORM E;FORM L; FORM M, etc

Product Name:

Bailey Bridge

Steel:

S355JR, S355J0, S460J0, ASTM Gr65, Gr50, Etc

Type:

CB100, CB200

Deck:

Steel Deck

Standard:

AASHTO, BS5400, AS5100, IRC, Etc

Annual Output:

100,000 Tons

Packaging Details:

According to detailed order

Highlight:

Temporary Steel Bailey Bridge

BS5400 Standard Steel Bailey Bridge

BS5400 Standard temporary bailey bridge

Product Description

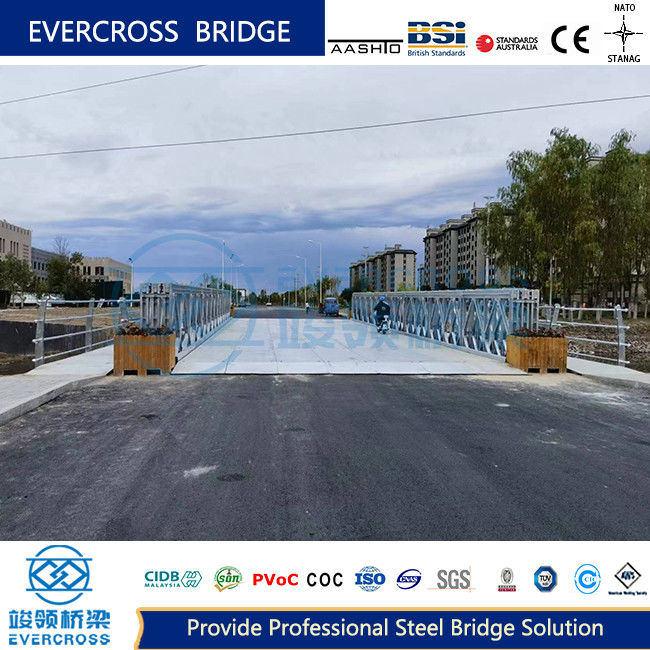

Temporary Prefabricated Steel Bailey Bridge For Car And Pedestrian BS5400 Standard

Product Specifications

Attribute	Value
Product Name	Bailey Bridge
Steel	S355JR, S355J0, S460J0, ASTM Gr65, Gr50, etc
Type	CB100, CB200
Deck	Steel Deck
Standard	AASHTO, BS5400, AS5100, IRC, etc
Annual output	100,000 Tons

Product Overview

Bailey Bridge is a modular, portable bridge with excellent corrosion resistance, designed for quick assembly and disassembly. Originally developed for military use, it consists of prefabricated panels that can be connected with minimal tools and manpower.

Technical Specifications

Compact-200 Bailey Bridge Truss Allowable Internal Force Table (Half-bridge)

Configuration	Allowable Bending Moment [M] (kN*m)	Allowable Shear Force [Q] (kN)	High-shear Union Allowable Shear Force [Q]H (kN)
SS	1127	257	348
SSR	2254	257	348
DS	2525	514	696
DSR1	3381	514	696
DSR2	5050	514	696
TS	3800	771	1044
TSR2	5635	771	1044
TSR3	7600	771	1044
QS	5050	1028	1392
QSR3	7889	1028	1392
QSR4	10100	1028	1392

Bridge Dimensions

Configuration	Roadway Width	Span Length
Single lane	3.15m / 4.2m	30ft-200ft
Double lane	7.35m	30ft-180ft

Key Features

Modular Design: Standardized components enable easy transport and flexible configurations

High Load Capacity: Supports heavy military vehicles and construction equipment

Lightweight Construction: High-strength steel reduces weight while maintaining durability

Corrosion Resistance: Treated steel components withstand harsh environmental conditions

Rapid Deployment: Quick assembly with minimal tools and manpower

Applications

Military operations and troop movements
Disaster relief and emergency infrastructure
Temporary construction site crossings
Pedestrian access in remote areas
Maintenance bypass routes

Competitive Advantages

Cost-Effective: Lower material and labor costs compared to permanent bridges

Reusable: Components can be disassembled and redeployed multiple times

Versatile: Adaptable to various terrains and access challenges

Minimal Equipment: Requires only basic tools for assembly

Certifications & Standards

Steel Grades: EN10025 S355JR/S355J0, EN10219 S460J0, ASTM A572 GR50/GR65, GB355B/C/D/460C

Certifications: ISO9001, ISO14001, ISO45001, EN1090, CIDB, COC, PVOC, SONCAP

Welding Standards: AWS D1.1/D1.5, AS/NZS 1554

Galvanization: ISO1461, AS/NZS 4680, ASTM-A123, BS1706
