Modular Truss Steel Structures Bailey Type Bridge Strong For Emergency

Name: Modular Truss Steel Structures Bailey Type Bridge Strong For Emergency
Brand: EVERCROSS BRIDGE TECHNOLOGY (SHANGHAI) CO.,LTD.
SKU: COMPACT-200; COMPACT-100; CHINA 321 ; PB 100; LSB; GWD; DELTA; 450,etc
Price: 1,500.00 USD
Availability: InStock

Brand Name:	EVERCROSS
Model Number:	COMPACT-200; COMPACT-100; CHINA 321 ; PB 100; LSB; GWD; DELTA; 450,etc
MOQ:	negotiation
Price:	1000USD ~ 2000USD Per ton
Delivery Time:	negotiation
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CNAS; COC; PVOC; SONCAP; CIDB;FORM E;FORM L; FORM M, etc

Product Name:

Bailey Bridge

Steel:

S355JR, S355J0, S460J0, ASTM Gr65, Gr50, Etc

Type:

CB100, CB200

Deck:

Steel Deck

Standard:

AASHTO, BS5400, AS5100, IRC, Etc

Annual Output:

100,000 Tons

Packaging Details:

According to detailed order

Highlight:

Steel Structures Bailey Type Bridge

Steel Structure Bridge For Emergency

Modular emergency bridges

Product Description

Modular Truss Steel Structures Bailey Type Bridge Strong For Emergency

Product Specifications

Attribute	Value
Product Name	Bailey Bridge
Steel	S355JR, S355J0, S460J0, ASTM Gr65, Gr50, etc
Type	CB100, CB200
Deck	Steel Deck
Standard	AASHTO, BS5400, AS5100, IRC, etc
Annual output	100,000 Tons

Product Overview

Bailey Bridge is a fabricated steel bridge characterized by light components, convenient disassembly, and strong adaptability. It can be built quickly with simple tools and manpower.

Originally developed for military use, Bailey Bridges are now widely used in rescue and disaster relief, traffic engineering, municipal water conservancy projects, and dangerous bridge reinforcement. For example, during the 5.12 Wenchuan earthquake in 2008, Bailey Bridges played a key role in transporting relief materials and evacuating people.

Key Features

Rapid Construction: Can be assembled quickly in the field, often within hours
Modular Design: Standardized components for easy transport and reconfiguration
High Load Capacity: Supports heavy loads including military and construction vehicles
Minimal Equipment Needed: Requires only basic tools for assembly
Versatility: Suitable for temporary and permanent installations

Applications

Event Infrastructure: Temporary access for festivals and sports events
Mining Operations: Access in remote mining sites
Rural Accessibility: Practical solution for isolated areas
Maintaining Traffic Flow: Temporary crossings during construction
Pedestrian Access: Adapted for parks and urban areas

Technical Specifications

Section Properties (One Truss)

Const.	Section Area of Chord (cm²)	Bending Factor (cm³)	Moment of Inertia (cm⁴)
SS	25.48	5437	580174
SSR	50.96	10875	1160348
DS	50.96	10875	1160348
DSR1	76.44	16312	1740522
DSR2	101.92	21750	2320696
TS	76.44	16312	1740522
TSR2	127.40	27185	2900870
TSR3	152.88	32625	3481044
QS	101.92	21750	2320696
QSR3	178.36	38059	4061218
QSR4	203.84	43500	4641392

Material yield strength of panel: σS=345MPa

Material allowable stress: [σ]=0.8×σS=276 MPa

Allowable bearing stress: [N]= [σ]×F×φ=276×2548×0.751=528kN=54t

Allowable moment of panel: [M]= [N]×h=528×2.134=1127kN·m=115t·m

Bridge Specifications

Single lane:	Standard roadway: 3.15m / 4.2m	Single lane: 30ft-200ft
Double lane:	Standard roadway:7.35m	Double lane:30ft-180ft
Load:	Design according to different requirements
Deck:	Steel deck
Bridge type:	CB100, CB200

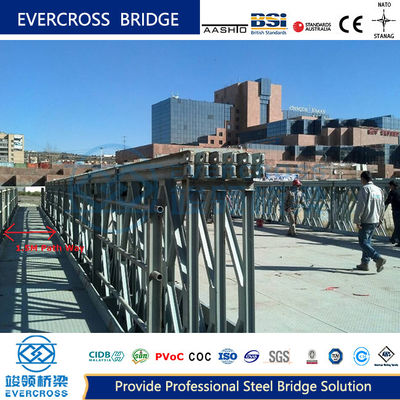

Product Demonstration

Modular Truss Steel Structures Bailey Type Bridge Strong For Emergency 3

Evercross Steel Bridges Overview

Category	Specifications
EVERCROSS STEEL BRIDGE	Bailey bridge (Compact-200, Compact-100, LSB, PB100, China-321, BSB), Modular bridge (GWD, Delta, 450-type, etc.), Truss Bridge, Warren bridge, Arch bridge, Plate bridge, Beam bridge, Box girder bridge, Suspension bridge, Cable-stayed bridge, Floating bridge, etc.
DESIGN SPANS	10M TO 300M Single span
CARRIAGE WAY	SINGLE LANE, DOUBLE LANES, MULTILANE, WALKWAY, ETC
LOADING CAPACITY	AASHTO HL93.HS15-44, HS20-44, HS25-44, BS5400 HA+20HB, HA+30HB, AS5100 Truck-T44, IRC 70R Class A/B, NATO STANAG MLC80/MLC110. Truck-60T, Trailer-80/100Ton, etc.
STEEL GRADE	EN10025 S355JR S355J0/EN10219 S460J0/EN10113 S460N/BS4360 Grade 55CAS/NZS3678/3679/1163/Grade 350, ASTM A572/A572M GR50/GR65GB1591 GB355B/C/D/460C, etc.
CERTIFICATES	ISO9001, ISO14001, ISO45001, EN1090, CIDB, COC, PVOC, SONCAP, etc.
WELDING	AWS D1.1/AWS D1.5AS/NZS 1554 or equivalent
BOLTS	ISO898, AS/NZS1252, BS3692 or equivalent
GALVANIZATION CODE	ISO1461AS/NZS 4680ASTM-A123,BS1706or equivalent
