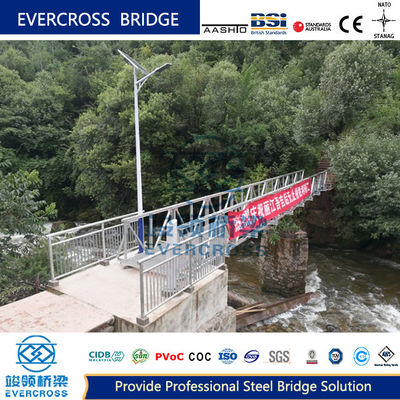

The PB100 Modular Footbridge is a portable steel bridge solution designed for rural connectivity. Its key features include adaptable spans, load-bearing capacity, lightweight components, and easy assembly with basic tools and manpower.

Compared to conventional bridges, the PB100 offers economical small-scale connectivity for remote villages. Designed exclusively for pedestrian use with a 3kN/m² load capacity, it prohibits vehicle and agricultural machinery traffic.

Developed by EVERCROSS engineers, the PB100 incorporates Bailey bridge technology with optimized materials. The design considers functional requirements, environmental conditions, technical feasibility, transportation logistics, and cost efficiency.

The lightweight footbridge consists of:

• Load-bearing bailey panels
• Transoms (floor beams)
• Decks
• Support members

Standardized prefabricated components enable simple assembly with controlled budgets.

• Reduced construction time
• Minimal environmental disruption
• Cost-effective solution
• Factory-controlled quality
• Quick on-site assembly

1. High strength-to-weight ratio reduces structural height and self-weight
2. Uniform steel material properties ensure predictable performance
3. Factory prefabrication with simple pin/bolt connections
4. Industrialized manufacturing and easy transportation
5. Long service life with recyclable materials

Ideal for rural and mountainous areas, the footbridge requires only manual labor and simple machinery for installation. Available in two standard widths (1.25m and 1.45m clear width) to accommodate pedestrian and livestock traffic while preventing vehicle misuse.

• Temporary Bridges
• Emergency Bridges
• Fixed Bridges

The system enables various span configurations without heavy equipment, exemplifying efficient military engineering principles.
