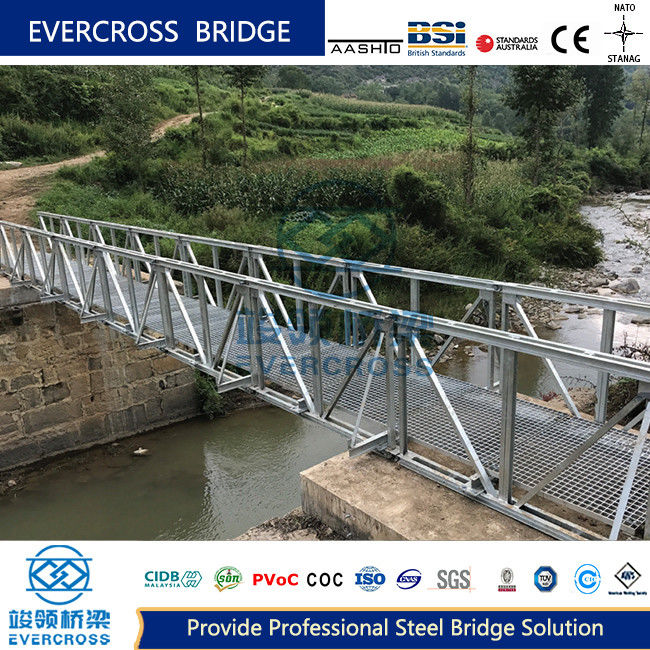

PB 100 Modular Steel Foot Bridge Quick Disassembly Walkway OEM

Name: PB 100 Modular Steel Foot Bridge Quick Disassembly Walkway OEM
Brand: EVERCROSS BRIDGE TECHNOLOGY (SHANGHAI) CO.,LTD.
SKU: COMPACT-200; COMPACT-100; CHINA 321 ; PB 100; LSB; GWD; DELTA; 450,etc
Price: 1,500.00 USD
Availability: InStock

Brand Name:	EVERCROSS
Model Number:	COMPACT-200; COMPACT-100; CHINA 321 ; PB 100; LSB; GWD; DELTA; 450,etc
MOQ:	negotiation
Price:	1000USD ~ 2000USD Per ton
Delivery Time:	negotiation
Payment Terms:	L/C, D/A, T/T, D/P, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CNAS; COC; PVOC; SONCAP; CIDB;FORM E;FORM L; FORM M, etc

Product Name:

Steel Modular Footbridge

Type:

PB 100

Load:

Pedestrian 3KN/m²

Panel Weight:

120kg

Sidewalk Net Width:

1.2m / 1.45m

The Maximum Single Span Of The Footbridge:

16m

Packaging Details:

According to detailed order

Highlight:

Modular Steel Foot Bridge

Quick Disassembly Steel Foot Bridge

Product Description

PB 100 Modular Steel Foot Bridge Quick Disassembly Walkway OEM

Product Specifications

Attribute	Value
Product Name	Steel Modular Footbridge
Type	PB 100
Load	Pedestrian 3KN/m²
Panel weight	120kg
Sidewalk net width	1.2m / 1.45m
The maximum single span of the footbridge	16m

Modular Footbridge Overview

The PB100 Modular Footbridge is a portable steel bridge solution designed for quick assembly and disassembly. Its key features include versatile span configurations, excellent load-bearing capacity, lightweight components, and adaptability for various environments. The system can be installed using simple tools and manual labor.

Key Applications

PB100 Modular footbridges provide economical connectivity solutions for rural areas, specifically designed for pedestrian and livestock use. With a design loading of 3kN/m², these bridges are not intended for vehicle or agricultural machinery traffic.

Structural Composition

The modular footbridge system consists of load-bearing bailey panels, transoms (floor beams), decks, and support members. All components are standardized prefabricated steel elements designed for simple assembly and budget control.

Design Advantages

Simple, standardized structure with prefabricated components
Controlled construction costs and rapid installation
Environmental benefits through reduced waste and recyclable materials
High strength-to-weight ratio with uniform material properties
Factory prefabrication with simple on-site assembly
Easy transportation, repair, and replacement
Long service life with recyclable materials

Technical Features

High strength and stiffness with reduced self-weight compared to concrete
Uniform material properties ensuring predictable performance
Quick assembly unaffected by seasonal conditions
Industrialized manufacturing process for consistent quality
Easy maintenance and material recycling capability

Application Scope

Ideal for rural and mountainous areas, the PB100 Modular Footbridge can be erected quickly using manual labor and simple machinery. Available in two standard widths (1300mm and 1500mm between truss centers), with the wider option suitable for livestock passage. The design intentionally limits width to prevent vehicle misuse.

Configuration Options

The PB100 system supports various configurations including temporary bridges, emergency bridges, and fixed installations. The design allows for varied spans with minimal components, requiring no special tools or heavy equipment for construction.

Competitive Advantages

Light Structural Design:

Standard bailey panels weigh less than 120kg each, enabling cost-effective transportation and assembly while minimizing resource waste.

Convenient Transportation:

Lightweight components are easily transported to remote locations and assembled on-site with minimal equipment.

Moderate Construction Difficulty:

Simplified, standardized components require only basic tools and limited skilled labor, enabling broader community participation.

Good Durability:

Open steel sections with zinc galvanization prevent rust and water accumulation, eliminating the need for traditional anti-rust paints.

Long Span Capability:

The design minimizes riverbed disturbance with fewer required piers compared to alternative solutions.

Evercross Steel Bridges Overview

Category	Specifications
Bridge Types	Bailey bridge (Compact-200, Compact-100, LSB, PB100, China-321, BSB), Modular bridge (GWD, Delta, 450-type, etc), Truss Bridge, Warren bridge, Arch bridge, Plate bridge, Beam bridge, Box girder bridge, Suspension bridge, Cable-stayed bridge, Floating bridge
Design Spans	10M to 300M single span
Carriage Way	Single lane, double lanes, multilane, walkway
Loading Capacity	AASHTO HL93.HS15-44, HS20-44, HS25-44, BS5400 HA+20HB, HA+30HB, AS5100 Truck-T44, IRC 70R Class A/B, NATO STANAG MLC80/MLC110, Truck-60T, Trailer-80/100Ton
Steel Grade	EN10025 S355JR S355J0/EN10219 S460J0/EN10113 S460N/BS4360 Grade 55C, AS/NZS3678/3679/1163/Grade 350, ASTM A572/A572M GR50/GR65, GB1591 GB355B/C/D/460C
Certificates	ISO9001, ISO14001, ISO45001, EN1090, CIDB, COC, PVOC, SONCAP
Welding Standards	AWS D1.1/AWS D1.5, AS/NZS 1554 or equivalent
Bolts	ISO898, AS/NZS1252, BS3692 or equivalent
Galvanization Code	ISO1461, AS/NZS 4680, ASTM-A123, BS1706 or equivalent
