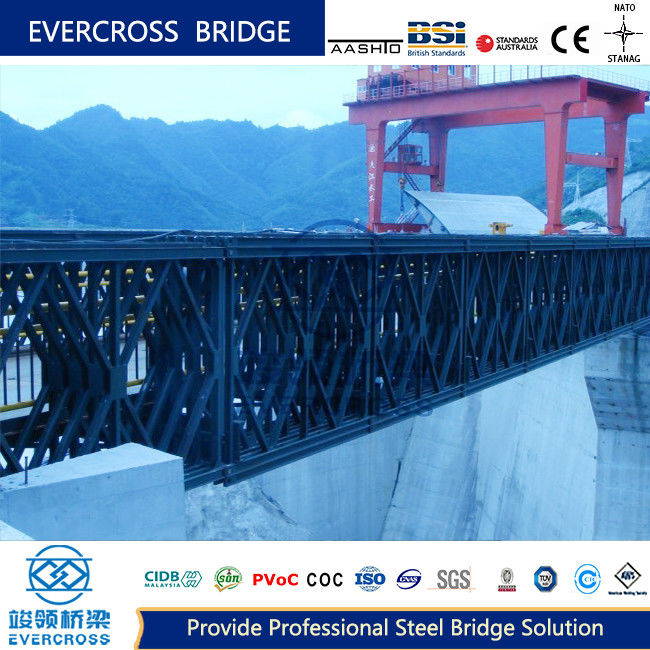

Prefabricated Bailey Bridge Single Design Load Long Life

Bailey Bridges which are portable steel bridge have been widely used in various fields, its most important feature is to achieve a variety of spans, bear carrying capacity, light and handy components, easy to dismantle and strong adaptability can be quickly completed with simple tools and manpower.

The surface protection can be paint or hot-dip galvanized.

Bailey Bridge is a standard bridge equipment, adopted extensively and the most popular in the world

• Simple structure
• Convenient transport
• Speedy erection
• Easy disassembling
• Heavy loading capacity
• Great stability
• Long fatigue life
• Capable of alternative span and loading capacity

• Heavy loading capacity
• Great stability
• Long fatigue life
• Light weight
• Low cost
• Easy and fast erection

A useful feature of the Bailey bridge is its ability to be launched from one side of a gap. In this system the front-most portion of the bridge is angled up with wedges into a "launching nose" and most of the bridge is left without the roadbed and ribands. The bridge is placed on rollers and simply pushed across the gap, using manpower or a truck or tracked vehicle, at which point the roller is removed (with the help of jacks) and the ribands and roadbed installed, along with any additional panels and transoms that might be needed.

Beam bridge, arch bridge, rigid frame bridge, cable-stayed bridge, suspension bridge, passenger foot-bridge

Mixture form to erect all kinds of Bailey Bridges:

• Temporary Bridges
• Emergency Bridges
• Fixed Bridges

Using the bridge equipment, the suspension bridges of varied span can be erected. Bailey Bridge requires no special tools or heavy equipment for construction, the bridge elements are small enough to be carried in, and the bridge is strong enough to carry. It is considered a great example of military engineering.

Pre-arch method is used to additionally cut down mid-span and vertical deflection to a larger degree.
