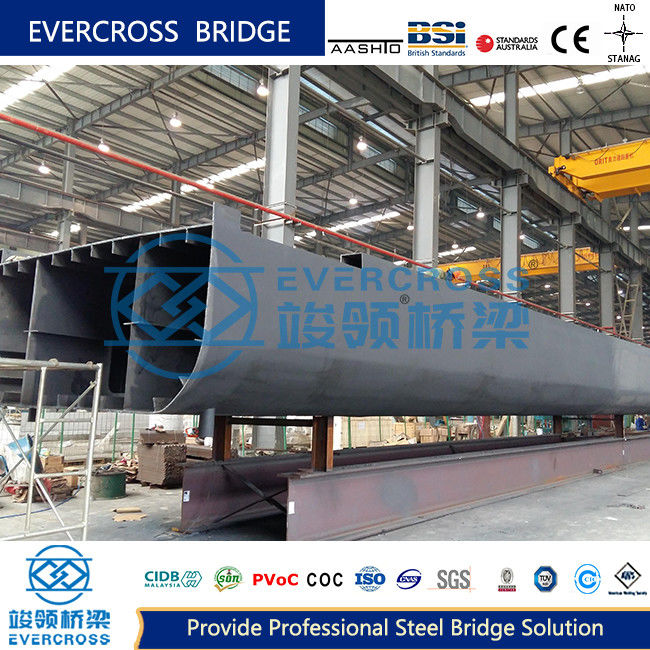

Customizable Steel Bridge Structure Easy Assembly And Transportation

Name: Customizable Steel Bridge Structure Easy Assembly And Transportation
Brand: EVERCROSS BRIDGE TECHNOLOGY (SHANGHAI) CO.,LTD.
SKU: COMPACT-200; COMPACT-100; CHINA 321 ; PB 100; LSB; GWD; DELTA; 450,etc
Price: 1,500.00 USD
Availability: InStock

Brand Name:	EVERCROSS
Model Number:	COMPACT-200; COMPACT-100; CHINA 321 ; PB 100; LSB; GWD; DELTA; 450,etc
MOQ:	negotiation
Price:	1000USD ~ 2000USD Per ton
Delivery Time:	negotiation
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CNAS; COC; PVOC; SONCAP; CIDB;FORM E;FORM L; FORM M, etc

Product Name:

Steel Structures

Loading Standard:

Hl93/Ha+20hb/T44/Class A/B/MLC110/dB24

Standard:

AISI, ASTM, BS, DIN, GB, JIS

Specification:

Customizable

Application:

Roads, Railways, Highways, Etc.

Packaging Details:

According to detailed order

Highlight:

Steel Bridge Structure Easy Assembly

Customizable Steel Bridge Structure

Easy Assembly bridge steel structure

Product Description

Customizable Steel Bridge Structure - Easy Assembly And Transportation

Product Specifications

Attribute	Value
Product Name	Steel Structures
Loading Standard	HL93/HA+20HB/T44/Class A/B/MLC110/dB24
Standard	AISI, ASTM, BS, DIN, GB, JIS
Specification	Customizable
Application	Roads, Railways, Highways, etc.

Steel Structure Overview

Steel structures, such as those used in buildings, bridges, and industrial facilities, undergo a series of processing steps to transform raw steel materials into the final assembled components.

According to the bridge floor position, steel truss bridges are classified as:

Upper bearing steel truss bridge - bridge floor located in the upper part of the main truss
Lower bearing steel truss bridge - bridge floor located in the lower part of the main truss

Structural Components

Main Girder

The primary load-bearing structure that supports vertical loads. Composed of:

Upper chord
Lower chord
Belly rod (divided into diagonal bar and vertical bar)

Nodes are classified as large or small nodes, with pitch referring to the distance between nodes.

Bracing

Classification and functions:

Longitudinal connection: Upper and lower horizontal systems that withstand transverse loads including wind and centrifugal forces
Transverse connection: Bridge frame and crosslink that enhance torsional stiffness and adjust force distribution

Bridge Deck System

Composed of longitudinal beams, beams, and their connections. Force transmission path:

Load acts on longitudinal beam
Transferred to beam
Finally transferred to main truss

Bridge Deck

The surface for vehicles and pedestrians, with forms similar to steel beam bridges and combined beam bridges.

Key Advantages

Large span capability
Fast construction speed
Energy efficient
Aesthetically pleasing
Excellent seismic performance

Evercross Steel Bridge Specifications

Category	Details
Bridge Types	Bailey bridge (Compact-200, Compact-100, LSB, PB100, China-321, BSB), Modular bridge (GWD, Delta, 450-type), Truss Bridge, Warren bridge, Arch bridge, Plate bridge, Beam bridge, Box girder bridge, Suspension bridge, Cable-stayed bridge, Floating bridge
Design Spans	10M to 300M single span
Carriage Way	Single lane, double lanes, multilane, walkway
Loading Capacity	AASHTO HL93.HS15-44, HS20-44, HS25-44, BS5400 HA+20HB, HA+30HB, AS5100 Truck-T44, IRC 70R Class A/B, NATO STANAG MLC80/MLC110, Truck-60T, Trailer-80/100Ton
Steel Grade	EN10025 S355JR S355J0/EN10219 S460J0/EN10113 S460N/BS4360 Grade 55C, AS/NZS3678/3679/1163/Grade 350, ASTM A572/A572M GR50/GR65, GB1591 GB355B/C/D/460C
Certifications	ISO9001, ISO14001, ISO45001, EN1090, CIDB, COC, PVOC, SONCAP

Applications

Steel truss bridges are extensively used in highway and road bridge construction, offering versatility for various span lengths and terrain conditions.
