Customizable Arch Steel Bridge Diverse Design Steel Concrete Bridge

Name: Customizable Arch Steel Bridge Diverse Design Steel Concrete Bridge
Brand: EVERCROSS BRIDGE TECHNOLOGY (SHANGHAI) CO.,LTD.
SKU: COMPACT-200; COMPACT-100; CHINA 321 ; PB 100; LSB; GWD; DELTA; 450,etc
Price: 1,500.00 USD
Availability: InStock

Brand Name:	EVERCROSS
Model Number:	COMPACT-200; COMPACT-100; CHINA 321 ; PB 100; LSB; GWD; DELTA; 450,etc
MOQ:	negotiation
Price:	1000USD ~ 2000USD Per ton
Delivery Time:	negotiation
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CNAS; COC; PVOC; SONCAP; CIDB;FORM E;FORM L; FORM M, etc

Product Name:

Steel Arch Bridge

Bridge Deck:

Concrete Deck

Type:

Upper Bearing Type, Middle Bearing Type, Lower Bearing Type

Material:

Prefabricated Steel

Surface Finish:

Shot Blasting ,painted

Application:

Highway, Railway, Pedestrian Bridge

Packaging Details:

According to detailed order

Highlight:

Customizable Arch Steel Bridge

Arch Steel Bridge Diverse Design

Diverse Design Steel Concrete Bridge

Product Description

Customizable Arch Steel Bridge Diverse Design Steel Concrete Bridge

Product Specifications

Attribute	Value
Product Name	Steel Arch Bridge
Bridge Deck	Concrete Deck
Type	Upper bearing type, Middle bearing type, Lower bearing type
Material	Prefabricated Steel
Surface Finish	Shot blasting, painted
Application	Highway, Railway, Pedestrian Bridge

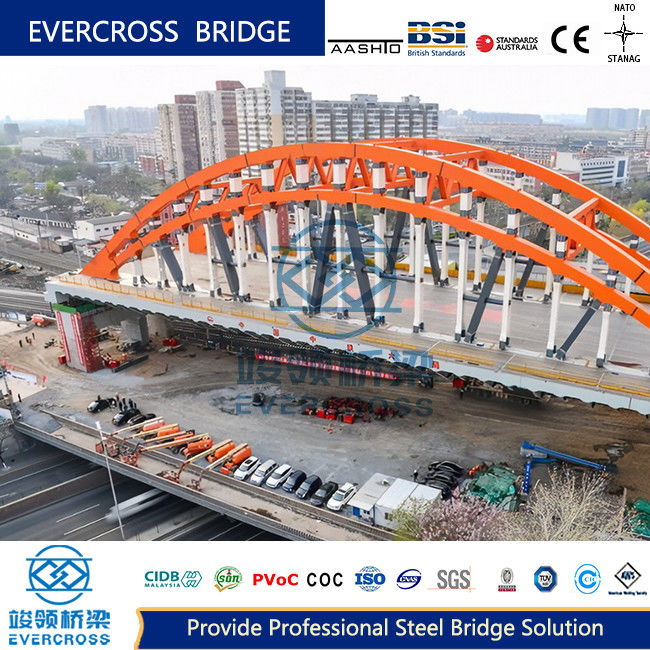

Main Structural Form of Steel Arch Bridge

Steel arch bridges have both composite system arch bridges and simple system arch bridges. There are several kinds of combined system arch Bridges, such as tie arch, loser arch, lange arch and other combined system arch bridges.

Classification by Structure Form:

Section form of main arch ring: steel box arch, steel pipe arch, steel truss arch
Space posture of two arch ribs: parallel arch ribs, basket arch ribs, butterfly arch ribs
Position of carriageway system: upper bearing type, middle bearing type and lower bearing type arch bridge
Layout of the boom: parallel vertical boom, inclined boom, mesh boom

Rigid frame arch plates can be constructed by cast-in-place or prefabricated installation, which should be determined according to transportation conditions and installation capacity, and most of them use the latter at present.

System Types:

Simple system arch bridge: Only the arch ring is the main force component, and the simple system is a thrust arch structure
Combined system arch bridge: Carriageway beam and arch combination, common force

Main Components of Steel Arch Bridge

1. Arch Rib

The main load-bearing members of the structure mainly bear axial pressure, but also bear part of the bending moment. According to the form of section is divided into: box, pipe, truss type. Trussed arch rib has light weight, greater span capacity and good economy.

2. Boom

A force transfer component that transfers the deck load to the arch rib. The boom is mainly an axial tension member. The rigid boom is made of multi-purpose steel pipe or section steel and can withstand pressure. The flexible boom is made of high-strength steel wire bundle or steel strand.

3. Tie Bar (Beam)

For the non-thrust arch, the thrust of the arch is borne by the tie rod, and the tie rod bears the larger axial tension. Divided into: rigid tie rod, flexible tie rod.

4. Cross Brace

Ensures the transverse stiffness and stability of the two arch ribs and withstands the transverse horizontal forces. Common structural forms: "one-word brace", "K-shaped brace", "X-shaped brace", "meter-shaped brace".

Properties and Features

Key Properties:

Flexibility: Can be shaped, bent, and fabricated into various forms
Durability: Withstands harsh environmental conditions
Ductility: Can undergo large deformations and absorb energy before failure

Main Features:

Deck and Roadway for vehicle and pedestrian traffic
Abutments and Piers to support the arch structure
Various configurations for different applications

Evercross Steel Bridges Specifications

EVERCROSS STEEL BRIDGE	Bailey bridge (Compact-200, Compact-100, LSB, PB100, China-321, BSB) Modular bridge (GWD, Delta, 450-type, etc.), Truss Bridge, Warren bridge, Arch bridge, Plate bridge, Beam bridge, Box girder bridge, Suspension bridge, Cable-stayed bridge, Floating bridge, etc.
DESIGN SPANS	10M TO 300M Single span
CARRIAGE WAY	SINGLE LANE, DOUBLE LANES, MULTILANE, WALKWAY, ETC
LOADING CAPACITY	AASHTO HL93.HS15-44, HS20-44, HS25-44, BS5400 HA+20HB, HA+30HB, AS5100 Truck-T44, IRC 70R Class A/B, NATO STANAG MLC80/MLC110. Truck-60T, Trailer-80/100Ton, etc.
STEEL GRADE	EN10025 S355JR S355J0/EN10219 S460J0/EN10113 S460N/ BS4360 Grade 55CAS/NZS3678/3679/1163/Grade 350, ASTM A572/A572M GR50/GR65GB1591 GB355B/C/D/460C, etc.
CERTIFICATES	ISO9001, ISO14001, ISO45001, EN1090, CIDB, COC, PVOC, SONCAP, etc.
WELDING	AWS D1.1/AWS D1.5AS/NZS 1554 or equivalent
BOLTS	ISO898, AS/NZS1252, BS3692 or equivalent
GALVANIZATION CODE	ISO1461AS/NZS 4680ASTM-A123,BS1706or equivalent
