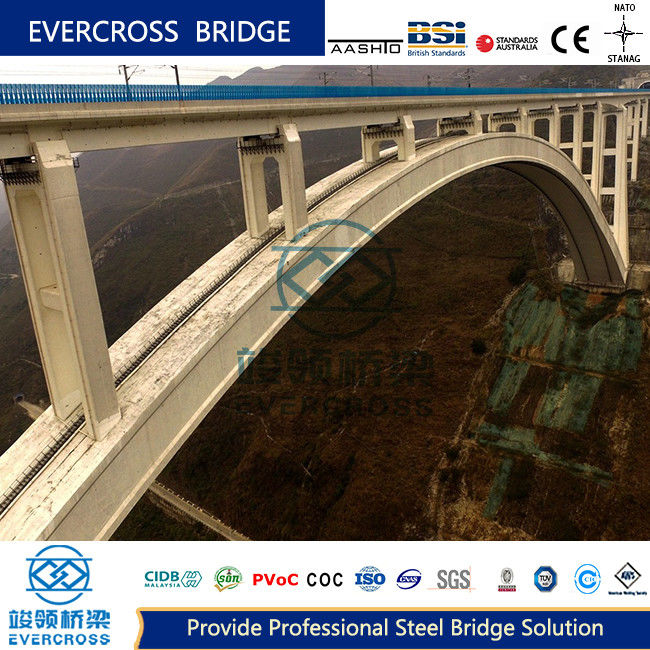

Simple System Metal Arch Bridge Convenient And Fast Installation

Name: Simple System Metal Arch Bridge Convenient And Fast Installation
Brand: EVERCROSS BRIDGE TECHNOLOGY (SHANGHAI) CO.,LTD.
SKU: COMPACT-200; COMPACT-100; CHINA 321 ; PB 100; LSB; GWD; DELTA; 450,etc
Price: 1,500.00 USD
Availability: InStock

Brand Name:	EVERCROSS
Model Number:	COMPACT-200; COMPACT-100; CHINA 321 ; PB 100; LSB; GWD; DELTA; 450,etc
MOQ:	negotiation
Price:	1000USD ~ 2000USD Per ton
Delivery Time:	negotiation
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CNAS; COC; PVOC; SONCAP; CIDB;FORM E;FORM L; FORM M, etc

Product Name:

Steel Arch Bridge

Bridge Deck:

Concrete Deck

Type:

Upper Bearing Type, Middle Bearing Type, Lower Bearing Type

Material:

Prefabricated Steel

Surface Finish:

Shot Blasting ,painted

Application:

Highway, Railway, Pedestrian Bridge

Packaging Details:

According to detailed order

Highlight:

Simple System Metal Arch Bridge

Fast Installation Metal Arch Bridge

Simple Arch Bridge Fast Installation

Product Description

Steel Arch Bridge - Convenient and Fast Installation

Product Specifications

Attribute	Value
Product Name	Steel Arch Bridge
Bridge Deck	Concrete Deck
Type	Upper bearing type, Middle bearing type, Lower bearing type
Material	Prefabricated Steel
Surface Finish	Shot blasting, painted
Application	Highway, Railway, Pedestrian Bridge

Structural Components

The upper structure of steel arch bridge is mainly composed of:

Arch ring
Suspension rod (or arch column)
Tie rod
Bridge beam

Classification by Structure

Section form of main arch ring:

Steel box arch
Steel pipe arch
Steel truss arch

Space posture of two arch ribs:

Parallel arch ribs
Basket arch ribs
Butterfly arch ribs

Position of carriageway system:

Upper bearing type
Middle bearing type
Lower bearing type arch bridge

Structural Systems

Simple system arch bridge: Only the arch ring is the main force component, with thrust directly borne by the pier or foundation.

Combined system arch bridge: Carriageway beam and arch combination with common force distribution.

Key Features

Versatile span lengths from short to long distances
High strength-to-weight ratio of steel construction
Elegant architectural aesthetics enhancing urban landscapes
Durable construction with shot blasting and painted finish
Multiple bearing type options for different applications

Applications

Highway crossings
Railway bridges
Pedestrian walkways
Urban infrastructure projects
Scenic landscape bridges

Evercross Steel Bridges Overview

Product Range	Bailey bridge (Compact-200, Compact-100, LSB, PB100, China-321, BSB) Modular bridge (GWD, Delta, 450-type, etc.) Truss Bridge, Warren bridge, Arch bridge, Plate bridge Beam bridge, Box girder bridge, Suspension bridge Cable-stayed bridge, Floating bridge
Design Spans	10M TO 300M Single span
Carriage Way	SINGLE LANE, DOUBLE LANES, MULTILANE, WALKWAY
Loading Capacity	AASHTO HL93.HS15-44, HS20-44, HS25-44 BS5400 HA+20HB, HA+30HB AS5100 Truck-T44 IRC 70R Class A/B NATO STANAG MLC80/MLC110 Truck-60T, Trailer-80/100Ton
Steel Grade	EN10025 S355JR S355J0/EN10219 S460J0/EN10113 S460N/BS4360 Grade 55C AS/NZS3678/3679/1163/Grade 350 ASTM A572/A572M GR50/GR65 GB1591 GB355B/C/D/460C
Certificates	ISO9001, ISO14001, ISO45001, EN1090, CIDB, COC, PVOC, SONCAP
