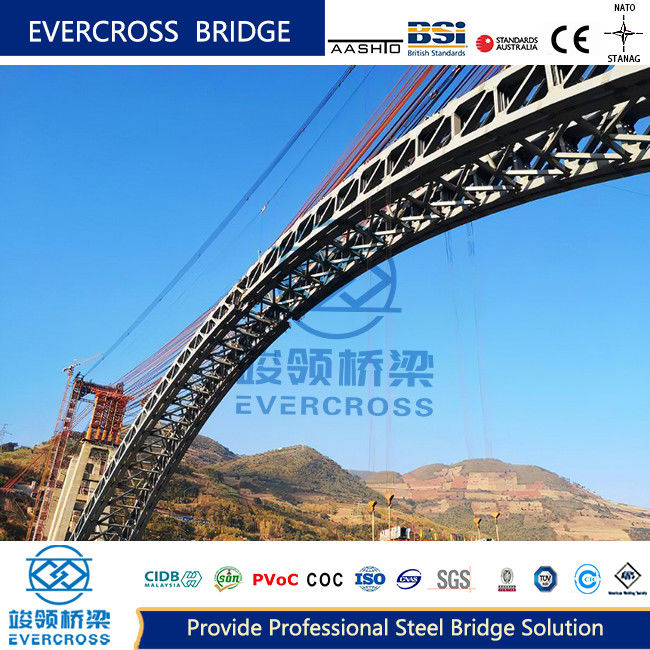

Contemporary Highway Steel Arch Bridge Combined System High Performance

Name: Contemporary Highway Steel Arch Bridge Combined System High Performance
Brand: EVERCROSS BRIDGE TECHNOLOGY (SHANGHAI) CO.,LTD.
SKU: COMPACT-200; COMPACT-100; CHINA 321 ; PB 100; LSB; GWD; DELTA; 450,etc
Price: 1,500.00 USD
Availability: InStock

Brand Name:	EVERCROSS
Model Number:	COMPACT-200; COMPACT-100; CHINA 321 ; PB 100; LSB; GWD; DELTA; 450,etc
MOQ:	negotiation
Price:	1000USD ~ 2000USD Per ton
Delivery Time:	negotiation
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CNAS; COC; PVOC; SONCAP; CIDB;FORM E;FORM L; FORM M, etc

Product Name:

Steel Arch Bridge

Bridge Deck:

Concrete Deck

Material:

Prefabricated Steel

Surface Finish:

Shot Blasting ,painted

Type:

Upper Bearing Type, Middle Bearing Type, Lower Bearing Type

Application:

Highway, Railway, Pedestrian Bridge

Packaging Details:

According to detailed order

Highlight:

Contemporary Steel Arch Bridge

Combined System Steel Arch Bridge

Combined System metal arch bridge

Product Description

Contemporary Highway Steel Arch Bridge Combined System High Performance

Product Specifications

Attribute	Value
Product Name	Steel Arch Bridge
Bridge Deck	Concrete Deck
Material	Prefabricated Steel
Surface Finish	Shot blasting, painted
Type	Upper bearing type, Middle bearing type, Lower bearing type
Application	Highway, Railway, Pedestrian Bridge

Structural Design of Steel Arch Bridge

The upper structure of steel arch bridge is mainly composed of arch ring, suspension rod (or arch column), tie rod, bridge beam and other components.

Arch Shape Characteristics

Steel arch bridges feature an arch-shaped structure that provides exceptional strength and stability. The arch efficiently distributes bridge and traffic loads to abutments or piers through compression forces.

Structural Classification

By section form: Steel box arch, steel pipe arch, steel truss arch
By carriageway position: Upper bearing type, middle bearing type, lower bearing type
By arch rib configuration: Parallel arch ribs, basket arch ribs, butterfly arch ribs
By boom layout: Parallel vertical boom, inclined boom, mesh boom

Structural Systems

Simple system arch bridge: Only the arch ring bears forces as a thrust arch structure.

Combined system arch bridge: Carriageway beam and arch work together to share forces.

Key Components

Arch Rib

The primary load-bearing member that mainly withstands axial pressure. Available in truss, box, or plate configurations. Truss arches offer lightweight construction with excellent span capacity.

Boom

Transfers deck loads to arch ribs. Available as rigid (steel pipe/section) or flexible (high-strength wire) configurations with various layout options.

Tie Bar

Absorbs arch thrust in non-thrust arch designs. Available in rigid or flexible configurations.

Cross Brace

Enhances transverse stiffness and stability. Common configurations include one-word, K-shaped, X-shaped, and meter-shaped braces.

Design Parameters

Rise span ratio: Typically 1/4~1/7 (1/4~1/5 for truss arches)
Arch rib height: Equal height or variable height configurations
Arch axis: Arc line, quadratic parabola, or catenary curves

Applications

Highway bridges with spans up to 552m
Railway bridges for extended spans
Pedestrian bridges combining safety and aesthetic appeal

Evercross Steel Bridges Specifications

Category	Specifications
Bridge Types	Bailey bridge, Modular bridge, Truss Bridge, Arch bridge, Plate bridge, Beam bridge, Box girder bridge, Suspension bridge, Cable-stayed bridge, Floating bridge
Design Spans	10M TO 300M Single span
Carriage Way	SINGLE LANE, DOUBLE LANES, MULTILANE, WALKWAY
Loading Capacity	AASHTO HL93.HS15-44, HS20-44, HS25-44, BS5400 HA+20HB, HA+30HB, AS5100 Truck-T44, IRC 70R Class A/B, NATO STANAG MLC80/MLC110
Steel Grade	EN10025 S355JR S355J0/EN10219 S460J0/EN10113 S460N/BS4360 Grade 55C, ASTM A572/A572M GR50/GR65, GB1591 GB355B/C/D/460C
Certificates	ISO9001, ISO14001, ISO45001, EN1090, CIDB, COC, PVOC, SONCAP
