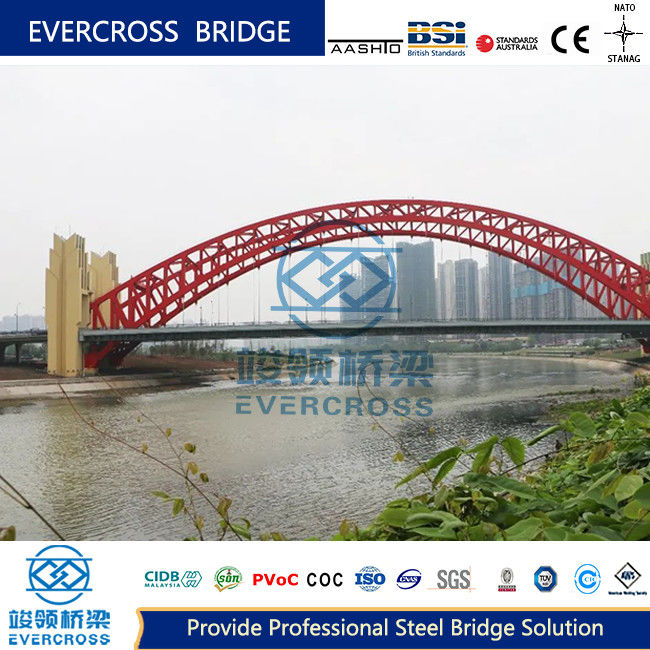

Prefab Design Steel Arch Bridge High Stability Arched Pedestrian Bridge

Name: Prefab Design Steel Arch Bridge High Stability Arched Pedestrian Bridge
Brand: EVERCROSS BRIDGE TECHNOLOGY (SHANGHAI) CO.,LTD.
SKU: COMPACT-200; COMPACT-100; CHINA 321 ; PB 100; LSB; GWD; DELTA; 450,etc
Price: 1,500.00 USD
Availability: InStock

Brand Name:	EVERCROSS
Model Number:	COMPACT-200; COMPACT-100; CHINA 321 ; PB 100; LSB; GWD; DELTA; 450,etc
MOQ:	negotiation
Price:	1000USD ~ 2000USD Per ton
Delivery Time:	negotiation
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CNAS; COC; PVOC; SONCAP; CIDB;FORM E;FORM L; FORM M, etc

Product Name:

Steel Arch Bridge

Bridge Deck:

Concrete Deck

Type:

Upper Bearing Type, Middle Bearing Type, Lower Bearing Type

Material:

Prefabricated Steel

Surface Finish:

Shot Blasting ,painted

Application:

Highway, Railway, Pedestrian Bridge

Packaging Details:

According to detailed order

Highlight:

Prefab Design Steel Arch Bridge

High Stability Arched Pedestrian Bridge

High Stability Steel Arch Bridge

Product Description

Prefab Design Steel Arch Bridge High Stability Arched Pedestrian Bridge

Product Specifications

Product Name	Steel Arch Bridge
Bridge Deck	Concrete Deck
Type	Upper bearing type, Middle bearing type, Lower bearing type
Material	Prefabricated Steel
Surface Finish	Shot blasting, painted
Application	Highway, Railway, Pedestrian Bridge

Structural Design of Steel Arch Bridge

The upper structure of steel arch bridge is primarily composed of arch ring, suspension rod (or arch column), tie rod, bridge beam and other components. Steel arch bridges have been used for centuries and continue to be a preferred choice for various bridge types.

Classification by Structure

Section form: Steel box arch, steel pipe arch, steel truss arch
Space posture: Parallel arch ribs, basket arch ribs, butterfly arch ribs
Carriageway position: Upper bearing type, middle bearing type, lower bearing type
Boom layout: Parallel vertical boom, inclined boom, mesh boom

Structural System Classification

Steel arch bridges include both composite system arch bridges and simple system arch bridges. Composite systems feature tie arches, loser arches, and lange arches, while simple systems rely solely on the arch ring as the main force component.

Main Arch Structure

Steel arches can be designed as truss arches, box arches, or plate arches. Truss arch bridges are particularly important for large spans, with design parameters including:

Arch rib truss layout
Arch axis configuration
Vector span ratio
Vault and arch foot height selection
Bar section form and area

Key Structural Components

Arch Rib: The primary load-bearing member that mainly withstands axial pressure. Available in box, pipe, or truss type sections, with trussed arches offering superior weight efficiency and span capacity.

Boom: Transfers deck loads to the arch rib. Available as rigid (steel pipe/section) or flexible (high-strength wire) configurations, with various elevation arrangements including parallel, inclined, or mesh patterns.

Tie Bar: Bears the thrust of non-thrust arches through axial tension. Available in rigid or flexible configurations.

Cross Brace: Enhances transverse stiffness and stability. Common configurations include one-word, K-shaped, X-shaped, and meter-shaped braces, strategically placed for optimal structural performance.

Design Advantages

Steel arch bridges combine strength, durability, and aesthetic appeal with efficient load transfer capabilities. Their prefabricated construction allows for rapid assembly, while the structural design accommodates long spans and heavy loads across various applications.

Evercross Steel Bridges Specifications

Product Range	Bailey bridge (Compact-200, Compact-100, LSB, PB100, China-321, BSB) Modular bridge (GWD, Delta, 450-type) Truss Bridge, Warren bridge, Arch bridge, Plate bridge Beam bridge, Box girder bridge, Suspension bridge, Cable-stayed bridge, Floating bridge
Design Spans	10M to 300M single span
Carriage Way	Single lane, double lanes, multilane, walkway
Loading Capacity	AASHTO HL93.HS15-44, HS20-44, HS25-44 BS5400 HA+20HB, HA+30HB AS5100 Truck-T44 IRC 70R Class A/B NATO STANAG MLC80/MLC110 Truck-60T, Trailer-80/100Ton
Steel Grade	EN10025 S355JR S355J0/EN10219 S460J0 AS/NZS3678/3679/1163/Grade 350 ASTM A572/A572M GR50/GR65 GB1591 GB355B/C/D/460C
Certifications	ISO9001, ISO14001, ISO45001, EN1090, CIDB, COC, PVOC, SONCAP
