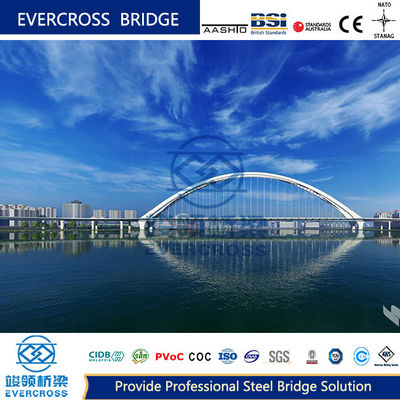

Professional Arch Type Prefabricated Steel Truss Pedestrian Bridge Flexible

Name: Professional Arch Type Prefabricated Steel Truss Pedestrian Bridge Flexible
Brand: EVERCROSS BRIDGE TECHNOLOGY (SHANGHAI) CO.,LTD.
SKU: COMPACT-200; COMPACT-100; CHINA 321 ; PB 100; LSB; GWD; DELTA; 450,etc
Price: 1,500.00 USD
Availability: InStock

Brand Name:	EVERCROSS
Model Number:	COMPACT-200; COMPACT-100; CHINA 321 ; PB 100; LSB; GWD; DELTA; 450,etc
MOQ:	negotiation
Price:	1000USD ~ 2000USD Per ton
Delivery Time:	negotiation
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CNAS; COC; PVOC; SONCAP; CIDB;FORM E;FORM L; FORM M, etc

Product Name:

Steel Arch Bridge

Bridge Deck:

Concrete Deck

Type:

Upper Bearing Type, Middle Bearing Type, Lower Bearing Type

Material:

Prefabricated Steel

Surface Finish:

Shot Blasting ,painted

Application:

Highway, Railway, Pedestrian Bridge

Packaging Details:

According to detailed order

Highlight:

Arch Type Prefabricated Steel Bridge

Flexible Prefabricated Steel Bridge

Flexible Steel Truss Pedestrian Bridge

Product Description

Professional Arch Type Prefabricated Steel Truss Pedestrian Bridge

Product Specifications

Attribute	Value
Product Name	Steel Arch Bridge
Bridge Deck	Concrete Deck
Type	Upper bearing type, Middle bearing type, Lower bearing type
Material	Prefabricated Steel
Surface Finish	Shot blasting, painted
Application	Highway, Railway, Pedestrian Bridge

Structural Design Features

Steel arch bridges combine strength, durability, and aesthetic appeal. The arch shape provides excellent load-bearing capabilities by efficiently transferring weight to supports. The prefabricated steel construction offers high tensile strength, enabling longer spans and lighter structures compared to conventional bridge types.

Structural Classification

By section form: Steel box arch, steel pipe arch, steel truss arch
By space posture: Parallel arch ribs, basket arch ribs, butterfly arch ribs
By carriageway position: Upper bearing, middle bearing, and lower bearing type arch bridges
By boom layout: Parallel vertical boom, inclined boom, mesh boom

Key Components

Arch Rib: The primary load-bearing member, mainly bearing axial pressure with some bending moment. Available in box, pipe, or truss configurations.

Boom: Transfers deck loads to arch ribs. Available as rigid (steel pipe/section) or flexible (high-strength steel wire) configurations.

Tie Bar: Bears the thrust of non-thrust arches through axial tension. Available in rigid and flexible configurations.

Technical Specifications

Design Spans: 10M to 300M single span

Carriage Way: Single lane, double lanes, multilane, walkway

Loading Capacity: AASHTO HL93.HS15-44 to HS25-44, BS5400 HA+20HB to HA+30HB

Steel Grade: EN10025 S355JR to S460J0, ASTM A572 GR50/GR65

Certifications: ISO9001, ISO14001, ISO45001, EN1090
