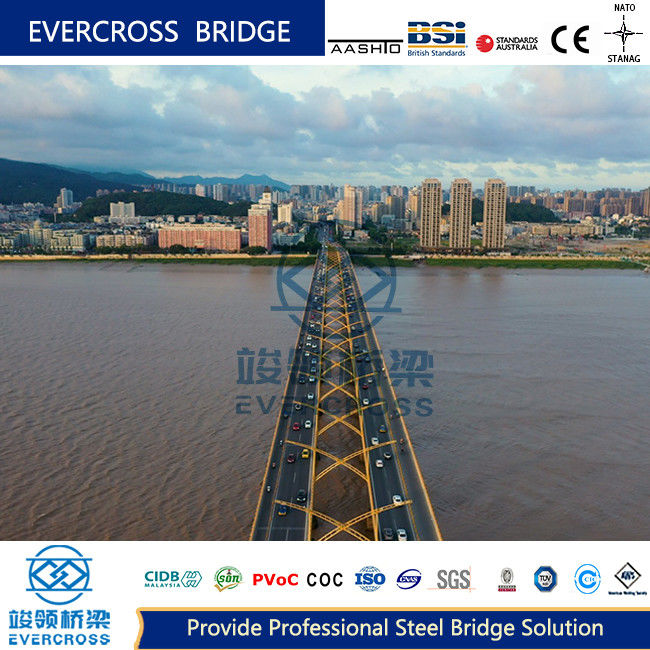

Customized Permanent Composite Beam Bridge With Steel Truss Concrete Deck

Name: Customized Permanent Composite Beam Bridge With Steel Truss Concrete Deck
Brand: EVERCROSS BRIDGE TECHNOLOGY (SHANGHAI) CO.,LTD.
SKU: COMPACT-200; COMPACT-100; CHINA 321 ; PB 100; LSB; GWD; DELTA; 450,etc
Price: 1,500.00 USD
Availability: InStock

Brand Name:	EVERCROSS
Model Number:	COMPACT-200; COMPACT-100; CHINA 321 ; PB 100; LSB; GWD; DELTA; 450,etc
MOQ:	negotiation
Price:	1000USD ~ 2000USD Per ton
Delivery Time:	negotiation
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CNAS; COC; PVOC; SONCAP; CIDB;FORM E;FORM L; FORM M, etc

Product Name:

Composite Beam Bridge

Bridge Deck:

Concrete

Material:

Prefabricated Steel

Spans:

Small Spans, Medium Spans, Large Spans

Durability:

Long-lasting

Installation:

Easy And Efficient Installation Process

Packaging Details:

According to detailed order

Highlight:

Customized Composite Beam Bridge

Steel Truss Composite Beam Bridge

Customized Steel Truss Bridge

Product Description

Customized Permanent Composite Beam Bridge With Steel Truss Concrete Deck

Key Features

Combines steel members and reinforced concrete for superior strength
Available in small, medium, and large spans
Long-lasting durability with easy installation process
Multiple structural configurations available
Ideal for highway and railway bridge applications

Attribute	Value
Product Name	Composite beam bridge
Bridge Deck	Concrete
Material	Prefabricated Steel
Spans	Small Spans, Medium Spans, Large Spans
Durability	Long-lasting
Installation	Easy and efficient installation process

Composite Beam Bridge Technology

The composite beam bridge combines steel members (plate beams, box beams, or truss beams) with reinforced concrete components through shear connectors, creating a unified structural system. This innovative design separates the beam rib from the bridge panel via longitudinal joints, allowing staged construction and stress distribution.

Structural Variations

Composite beam bridges are available in several configurations to meet different engineering requirements:

Composite Plate Girder Bridge

Ideal for medium and small spans, featuring I-section steel beams that reduce production costs while maintaining structural integrity.

Composite Box Girder Bridge

Offers superior torsional rigidity and stability with its box-type design, particularly suitable for locations with clearance constraints.

Composite Truss Bridge

Combines steel truss elements with concrete bridge panels for enhanced permeability and aesthetic appeal, though requiring more complex joint design.

Composite Rigid Frame Bridge

Integrates steel-concrete composite beams with concrete piers for improved seismic performance and larger under-bridge clearance.

Technical Advantages

Material Efficiency: Steel handles tension while concrete manages compression, optimizing material properties
Construction Benefits: Lightweight steel components simplify erection processes
Structural Performance: Increased stiffness reduces steel requirements while maintaining strength
Economic Benefits: Cost-effective solution especially for long-span applications
Durability: Concrete protects steel elements from corrosion and fire damage

Shear Connection Systems

Critical to composite action, various shear connectors ensure effective force transfer between steel and concrete components:

Evercross Steel Bridges Specifications

Product Range	Bailey bridge (Compact-200, Compact-100, LSB, PB100, China-321, BSB) Modular bridge (GWD, Delta, 450-type, etc.) Truss Bridge, Warren bridge, Arch bridge, Plate bridge Beam bridge, Box girder bridge, Suspension bridge Cable-stayed bridge, Floating bridge
Design Spans	10M TO 300M Single span
Carriage Way	SINGLE LANE, DOUBLE LANES, MULTILANE, WALKWAY
Loading Capacity	AASHTO HL93.HS15-44, HS20-44, HS25-44 BS5400 HA+20HB, HA+30HB AS5100 Truck-T44 IRC 70R Class A/B NATO STANAG MLC80/MLC110 Truck-60T, Trailer-80/100Ton
Steel Grade	EN10025 S355JR S355J0/EN10219 S460J0 AS/NZS3678/3679/1163/Grade 350 ASTM A572/A572M GR50/GR65 GB1591 GB355B/C/D/460C
Certifications	ISO9001, ISO14001, ISO45001, EN1090, CIDB, COC, PVOC, SONCAP
