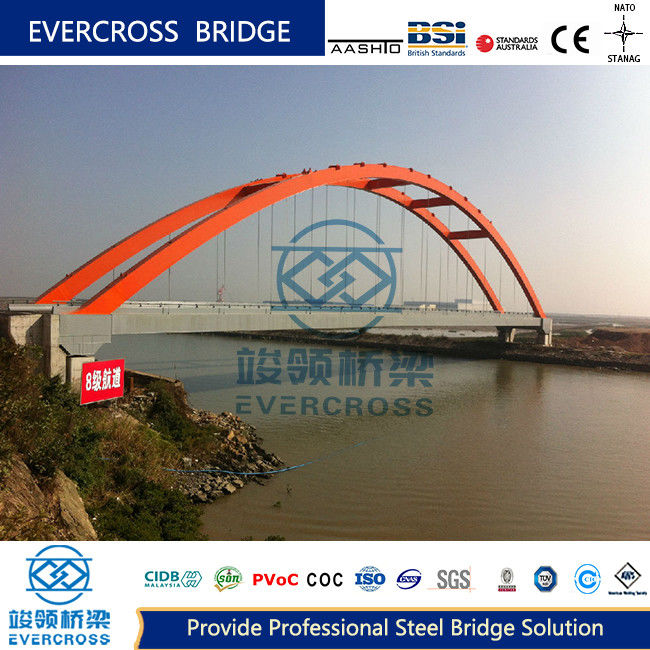

Heavy Duty Prefabricated Steel Arch Bridge Custom Steel Bridge For Roadway

Name: Heavy Duty Prefabricated Steel Arch Bridge Custom Steel Bridge For Roadway
Brand: EVERCROSS BRIDGE TECHNOLOGY (SHANGHAI) CO.,LTD.
SKU: COMPACT-200; COMPACT-100; CHINA 321 ; PB 100; LSB; GWD; DELTA; 450,etc
Price: 1,500.00 USD
Availability: InStock

Brand Name:	EVERCROSS
Model Number:	COMPACT-200; COMPACT-100; CHINA 321 ; PB 100; LSB; GWD; DELTA; 450,etc
MOQ:	negotiation
Price:	1000USD ~ 2000USD Per ton
Delivery Time:	negotiation
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CNAS; COC; PVOC; SONCAP; CIDB;FORM E;FORM L; FORM M, etc

Product Name:

Steel Arch Bridge

Bridge Deck:

Concrete Deck

Type:

Upper Bearing Type, Middle Bearing Type, Lower Bearing Type

Material:

Prefabricated Steel

Surface Finish:

Shot Blasting ,painted

Application:

Highway, Railway, Pedestrian Bridge

Packaging Details:

According to detailed order

Highlight:

Heavy Duty Custom Steel Bridge

Heavy Duty Steel Arch Bridge

Roadway Steel Arch Bridge

Product Description

Heavy Duty Prefabricated Steel Arch Bridge Custom Steel Bridge For Roadway

Product Name	Steel Arch Bridge
Bridge Deck	Concrete Deck
Type	Upper bearing type, Middle bearing type, Lower bearing type
Material	Prefabricated Steel
Surface Finish	Shot blasting, painted
Application	Highway, Railway, Pedestrian Bridge

Structural Form of Steel Arch Bridge

The upper structure of steel arch bridge is mainly composed of arch ring, suspension rod (or arch column), tie rod, bridge beam and other components.

Classification by Structure

Section form of main arch ring: Steel box arch, steel pipe arch, steel truss arch
Space posture of two arch ribs: Parallel arch ribs, basket arch ribs, butterfly arch ribs
Position of carriageway system: Upper bearing type, middle bearing type and lower bearing type arch bridge
Layout of boom: Parallel vertical boom, inclined boom, mesh boom

Structural System Classification

Steel arch bridges include both composite system arch bridges and simple system arch bridges. Composite systems include tie arch, loser arch, lange arch and other combined system arch bridges.

Main Arch Structure

Steel arch can be designed into truss arch, box arch, or plate arch. Truss arch bridges are common internationally, while China has built numerous steel box arch bridges. Truss arch bridges are particularly important for large span applications.

Key Design Parameters

Layout of arch rib truss
Arch axis configuration
Vector span ratio
Height selection for vault and arch foot
Boundary conditions
Bar section form and area

Trussed arch ribs can be classified as Pratt truss, Warren truss, K truss, or sub-truss forms. K-type trusses offer superior mechanical properties, W-type trusses are most economical, and P-type trusses provide construction and aesthetic advantages.

Key Components of Steel Arch Bridges

1. Arch Rib

The primary load-bearing member that mainly withstands axial pressure while also resisting bending moments. Available in box, pipe, or truss configurations, with trussed arches offering superior weight efficiency and span capacity.

2. Boom

Force transfer components that transmit deck loads to arch ribs. Available as rigid (steel pipe/section steel) or flexible (high-strength steel wire) configurations with various elevation arrangements including parallel vertical, inclined, or mesh patterns.

3. Tie Rod (Beam)

Critical for non-thrust arches, these components bear the arch's axial tension. Available in rigid or flexible configurations to suit different design requirements.

4. Cross Brace

Essential for maintaining transverse stiffness and stability, these components withstand horizontal forces while improving out-of-plane and torsional stiffness. Common configurations include one-word, K-shaped, X-shaped, and meter-shaped braces.

Applications & Features

Primary Applications

Road Bridges
Highway Overpasses
Pedestrian Bridges
Railway Bridges (for specific configurations)

Key Features

Steel arch bridges combine strength, versatility, and aesthetic appeal with features including durable deck systems, rehabilitation potential, and adaptive reuse capabilities.

Evercross Steel Bridges Specifications

Product Range	Bailey bridge (Compact-200, Compact-100, LSB, PB100, China-321, BSB) Modular bridge (GWD, Delta, 450-type, etc.) Truss Bridge, Warren bridge, Arch bridge Plate bridge, Beam bridge, Box girder bridge Suspension bridge, Cable-stayed bridge, Floating bridge
Design Spans	10M TO 300M Single span
Carriage Way	SINGLE LANE, DOUBLE LANES, MULTILANE, WALKWAY
Loading Capacity	AASHTO HL93.HS15-44, HS20-44, HS25-44 BS5400 HA+20HB, HA+30HB AS5100 Truck-T44 IRC 70R Class A/B NATO STANAG MLC80/MLC110 Truck-60T, Trailer-80/100Ton
Steel Grade	EN10025 S355JR S355J0/EN10219 S460J0/EN10113 S460N/BS4360 Grade 55C AS/NZS3678/3679/1163/Grade 350 ASTM A572/A572M GR50/GR65 GB1591 GB355B/C/D/460C
Certificates	ISO9001, ISO14001, ISO45001, EN1090, CIDB, COC, PVOC, SONCAP
