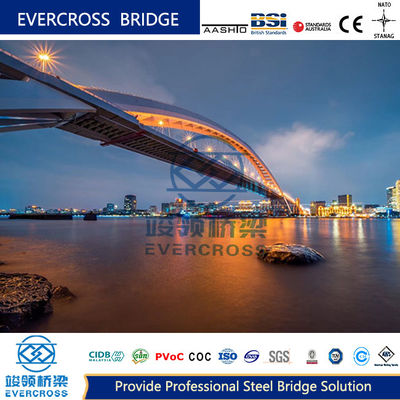

Concrete Deck Steel Rigid Frame Bridge Arch Type Bridge Middle Bearing Type

Name: Concrete Deck Steel Rigid Frame Bridge Arch Type Bridge Middle Bearing Type
Brand: EVERCROSS BRIDGE TECHNOLOGY (SHANGHAI) CO.,LTD.
SKU: COMPACT-200; COMPACT-100; CHINA 321 ; PB 100; LSB; GWD; DELTA; 450,etc
Price: 1,500.00 USD
Availability: InStock

Brand Name:	EVERCROSS
Model Number:	COMPACT-200; COMPACT-100; CHINA 321 ; PB 100; LSB; GWD; DELTA; 450,etc
MOQ:	negotiation
Price:	1000USD ~ 2000USD Per ton
Delivery Time:	negotiation
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CNAS; COC; PVOC; SONCAP; CIDB;FORM E;FORM L; FORM M, etc

Product Name:

Steel Arch Bridge

Bridge Deck:

Concrete Deck

Type:

Upper Bearing Type, Middle Bearing Type, Lower Bearing Type

Material:

Prefabricated Steel

Surface Finish:

Shot Blasting ,painted

Application:

Highway, Railway, Pedestrian Bridge

Packaging Details:

According to detailed order

Highlight:

Concrete Deck steel rigid frame bridge

steel rigid frame bridge Arch style

Concrete Deck arch type bridge

Product Description

Concrete Deck Steel Rigid Frame Bridge Arch Type Bridge Middle Bearing Type

Product Specifications

Attribute	Value
Product Name	Steel Arch Bridge
Bridge Deck	Concrete Deck
Type	Upper bearing type, Middle bearing type, Lower bearing type
Material	Prefabricated Steel
Surface Finish	Shot blasting, painted
Application	Highway, Railway, Pedestrian Bridge

Structural Components of Steel Arch Bridge

The upper structure of steel arch bridge is mainly composed of arch ring, suspension rod (or arch column), tie rod, bridge beam and other components.

Classification by Structure

Section form: Steel box arch, steel pipe arch, steel truss arch
Space posture: Parallel arch ribs, basket arch ribs, butterfly arch ribs
Carriageway position: Upper bearing type, middle bearing type and lower bearing type
Boom layout: Parallel vertical boom, inclined boom, mesh boom

Structural Systems

Simple system arch bridge: Only the arch ring is the main force component, with thrust borne by pier or foundation.

Combined system arch bridge: Carriageway beam and arch combination with common force distribution.

Main Arch Structure

Steel arches can be designed as truss arch, box arch, or plate arch. Truss arch bridges are particularly suitable for large spans with excellent economy and structural efficiency.

Key Components

Arch rib: Main load-bearing member primarily under axial pressure, available in box, pipe, or truss configurations.

Boom: Force transfer component connecting deck to arch rib, available in rigid (steel pipe/section) or flexible (steel wire) variants.

Tie bar: Bears arch thrust in non-thrust arches, available in rigid or flexible configurations.

Cross brace: Provides transverse stiffness and stability, with common configurations including "one-word", "K-shaped", "X-shaped", and "meter-shaped" supports.

Design Advantages

Strength & Durability: High-strength steel withstands heavy loads and compression forces
Ductility: Resilient to dynamic loads like earthquakes or wind forces
Versatility: Suitable for various applications including highway, railway, and pedestrian bridges
Economy: Prefabricated steel components reduce construction time and costs

Evercross Steel Bridges Specifications

Product Range	Bailey bridge (Compact-200, Compact-100, LSB, PB100, China-321, BSB) Modular bridge (GWD, Delta, 450-type, etc.) Truss Bridge, Warren bridge, Arch bridge, Plate bridge, Beam bridge Box girder bridge, Suspension bridge, Cable-stayed bridge, Floating bridge
Design Spans	10M TO 300M Single span
Carriage Way	SINGLE LANE, DOUBLE LANES, MULTILANE, WALKWAY
Loading Capacity	AASHTO HL93.HS15-44, HS20-44, HS25-44 BS5400 HA+20HB, HA+30HB AS5100 Truck-T44 IRC 70R Class A/B NATO STANAG MLC80/MLC110 Truck-60T, Trailer-80/100Ton
Steel Grade	EN10025 S355JR S355J0/EN10219 S460J0/EN10113 S460N/BS4360 Grade 55C AS/NZS3678/3679/1163/Grade 350 ASTM A572/A572M GR50/GR65 GB1591 GB355B/C/D/460C
Certificates	ISO9001, ISO14001, ISO45001, EN1090, CIDB, COC, PVOC, SONCAP
