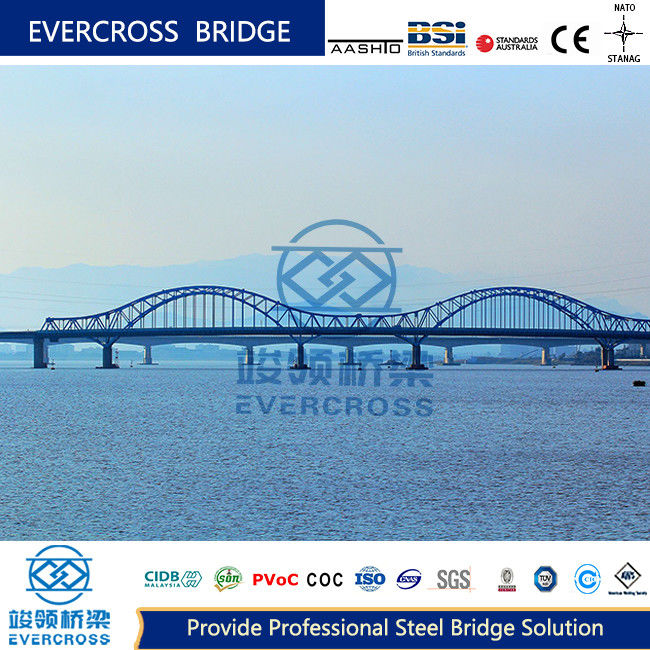

Highway Composite Beam Bridge Steel Truss Bridge Light Weight

Name: Highway Composite Beam Bridge Steel Truss Bridge Light Weight
Brand: EVERCROSS BRIDGE TECHNOLOGY (SHANGHAI) CO.,LTD.
SKU: COMPACT-200; COMPACT-100; CHINA 321 ; PB 100; LSB; GWD; DELTA; 450,etc
Price: 1,500.00 USD
Availability: InStock

Brand Name:	EVERCROSS
Model Number:	COMPACT-200; COMPACT-100; CHINA 321 ; PB 100; LSB; GWD; DELTA; 450,etc
MOQ:	negotiation
Price:	1000USD ~ 2000USD Per ton
Delivery Time:	negotiation
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CNAS; COC; PVOC; SONCAP; CIDB;FORM E;FORM L; FORM M, etc

Product Name:

Composite Beam Bridge

Bridge Deck:

Concrete

Material:

Prefabricated Steel

Spans:

Small Spans, Medium Spans, Large Spans

Durability:

Long-lasting

Installation:

Easy And Efficient Installation Process

Packaging Details:

According to detailed order

Highlight:

Highway Composite Beam Bridge

Highway Steel Truss Bridge

Steel Truss Bridge Light Weight

Product Description

Highway Composite Beam Bridge Steel Truss Bridge Light Weight

Product Specifications

Attribute	Value
Product Name	Composite beam bridge
Bridge Deck	Concrete
Material	Prefabricated Steel
Spans	Small Spans, Medium Spans, Large Spans
Durability	Long-lasting
Installation	Easy and efficient installation process

Product Description

The composite beam bridge is a composite structural bridge that combines steel members (such as steel plate beams, steel box beams, or steel truss beams) with reinforced concrete members through shear connectors to create a unified structural system.

Composite beam bridges are categorized into two types based on materials:

Concrete composite beams - integrated through in-situ concrete casting
Steel-concrete composite beams - combining steel beams with reinforced concrete slabs via shear connectors

Structural Characteristics

Combined section design increases stiffness while reducing steel quantity
Lower noise levels compared to all-steel bridges under live load
Rigid or flexible shear transfer mechanisms
Utilizes short section steel components like channel steel and angle steel

Structural Forms

Composite Plate Girder Bridge: Uses I-section steel beams for medium and small spans, reducing production and installation costs.

Composite Box Girder Bridge: Offers higher torsional rigidity and stability than I-section bridges, with increased crossing capacity.

Composite Truss Bridge: Replaces solid steel beams with steel trusses for better permeability and aesthetics, though with more complex joint designs.

Composite Rigid Frame Bridge: Consolidated with concrete piers for improved seismic performance and larger headroom under the bridge.

Key Features

Composite action between steel and concrete components
Optimal material combination leveraging steel's tensile strength and concrete's compressive strength
High strength-to-weight ratio
Improved structural stiffness and stability

Advantages

Lightweight construction reduces dead load and foundation requirements
Cost-effective material usage, especially for long spans
Enhanced performance through optimal material utilization
Reduced noise pollution compared to all-steel bridges
Simplified construction process with prefabricated components

Design Considerations

Composite beam bridges utilize a two-stage loading approach:

Stage 1: Steel beams support formwork and wet concrete
Stage 2: Completed composite section bears additional dead load and live load

Shear connectors (such as welded studs, channel steel, or perforated plates) are critical for effective load transfer between steel and concrete components.

Applications

Ideal for both highway and railway bridge projects requiring durable, efficient, and cost-effective solutions.

Evercross Steel Bridges Specifications

Product Range	Bailey bridge (Compact-200, Compact-100, LSB, PB100, China-321, BSB) Modular bridge (GWD, Delta, 450-type, etc.) Truss Bridge, Warren bridge, Arch bridge, Plate bridge, Beam bridge, Box girder bridge, Suspension bridge, Cable-stayed bridge, Floating bridge
Design Spans	10M to 300M Single span
Carriage Way	SINGLE LANE, DOUBLE LANES, MULTILANE, WALKWAY
Loading Capacity	AASHTO HL93.HS15-44, HS20-44, HS25-44 BS5400 HA+20HB, HA+30HB AS5100 Truck-T44 IRC 70R Class A/B NATO STANAG MLC80/MLC110 Truck-60T, Trailer-80/100Ton
Steel Grade	EN10025 S355JR S355J0/EN10219 S460J0/EN10113 S460N/BS4360 Grade 55C AS/NZS3678/3679/1163/Grade 350 ASTM A572/A572M GR50/GR65 GB1591 GB355B/C/D/460C
Certificates	ISO9001, ISO14001, ISO45001, EN1090, CIDB, COC, PVOC, SONCAP
