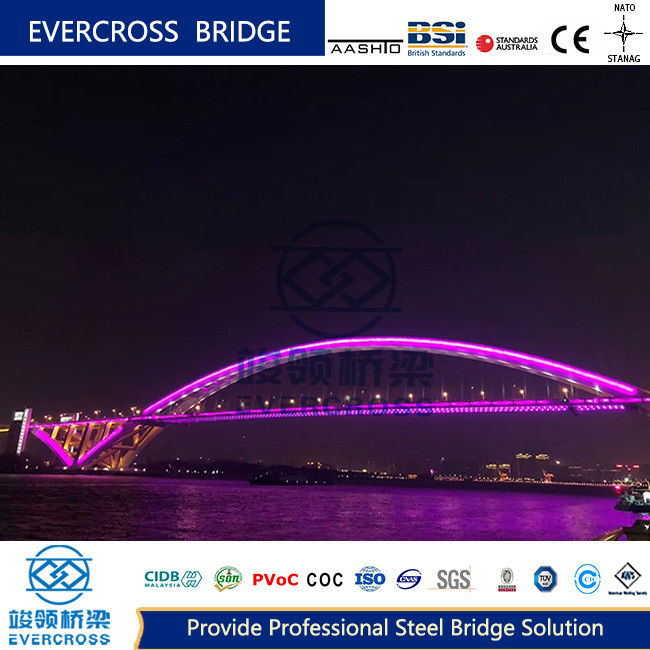

High Strength Steel Arch Bridge Long Life Temporary Steel Bridge

Name: High Strength Steel Arch Bridge Long Life Temporary Steel Bridge
Brand: EVERCROSS BRIDGE TECHNOLOGY (SHANGHAI) CO.,LTD.
SKU: COMPACT-200; COMPACT-100; CHINA 321 ; PB 100; LSB; GWD; DELTA; 450,etc
Price: 1,500.00 USD
Availability: InStock

Brand Name:	EVERCROSS
Model Number:	COMPACT-200; COMPACT-100; CHINA 321 ; PB 100; LSB; GWD; DELTA; 450,etc
MOQ:	negotiation
Price:	1000USD ~ 2000USD Per ton
Delivery Time:	negotiation
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CNAS; COC; PVOC; SONCAP; CIDB;FORM E;FORM L; FORM M, etc

Product Name:

Steel Arch Bridge

Bridge Deck:

Concrete Deck

Type:

Upper Bearing Type, Middle Bearing Type, Lower Bearing Type

Material:

Prefabricated Steel

Surface Finish:

Shot Blasting ,painted

Application:

Highway, Railway, Pedestrian Bridge

Packaging Details:

According to detailed order

Highlight:

high strength Steel Arch Bridge

Long Life Temporary Steel Bridge

high strength Temporary Steel Bridge

Product Description

High Strength Steel Arch Bridge Long Life Temporary Steel Bridge

Product Specifications

Attribute	Value
Product Name	Steel Arch Bridge
Bridge Deck	Concrete Deck
Type	Upper bearing type, Middle bearing type, Lower bearing type
Material	Prefabricated Steel
Surface Finish	Shot blasting, painted
Application	Highway, Railway, Pedestrian Bridge

Structural Design Features

The upper structure of steel arch bridge is mainly composed of arch ring, suspension rod (or arch column), tie rod, bridge beam and other components.

Classification by Structure

Section form: Steel box arch, steel pipe arch, steel truss arch
Space posture: Parallel arch ribs, basket arch ribs, butterfly arch ribs
Carriageway position: Upper bearing type, middle bearing type and lower bearing type
Boom layout: Parallel vertical boom, inclined boom, mesh boom

Structural Systems

Steel arch bridges include both composite system arch bridges and simple system arch bridges. Composite systems include tie arch, loser arch, and lange arch configurations.

Main Arch Structure

Steel arches can be designed as truss arch, box arch, or plate arch. Truss arch bridges are particularly important for large span applications.

Key Components

1. Arch Rib

The primary load-bearing members that mainly withstand axial pressure with some bending moment. Available in box, pipe, or truss configurations.

2. Boom

Force transfer components that transmit deck loads to arch ribs. Available as rigid (steel pipe/section) or flexible (steel wire/strand) configurations.

3. Tie Rod (Beam)

For non-thrust arches, these components bear the axial tension from arch thrust. Available in rigid or flexible configurations.

4. Cross Brace

Essential for transverse stiffness and stability, these components withstand horizontal forces. Common configurations include "one-word", "K-shaped", "X-shaped", and "meter-shaped" braces.

Design Advantages

Steel arch bridges offer efficient load transfer, long spans, and rapid construction. They provide reliable, visually appealing solutions for diverse bridge applications across highways, railways, and pedestrian pathways.

Evercross Steel Bridges Overview

Category	Specifications
Bridge Types	Bailey bridge, Modular bridge, Truss Bridge, Warren bridge, Arch bridge, Plate bridge, Beam bridge, Box girder bridge, Suspension bridge, Cable-stayed bridge, Floating bridge
Design Spans	10M TO 300M Single span
Carriage Way	SINGLE LANE, DOUBLE LANES, MULTILANE, WALKWAY
Loading Capacity	AASHTO HL93.HS15-44, HS20-44, HS25-44, BS5400 HA+20HB, HA+30HB, AS5100 Truck-T44, IRC 70R Class A/B, NATO STANAG MLC80/MLC110, Truck-60T, Trailer-80/100Ton
Steel Grade	EN10025 S355JR S355J0/EN10219 S460J0/EN10113 S460N/BS4360 Grade 55C, AS/NZS3678/3679/1163/Grade 350, ASTM A572/A572M GR50/GR65, GB1591 GB355B/C/D/460C
Certificates	ISO9001, ISO14001, ISO45001, EN1090, CIDB, COC, PVOC, SONCAP
