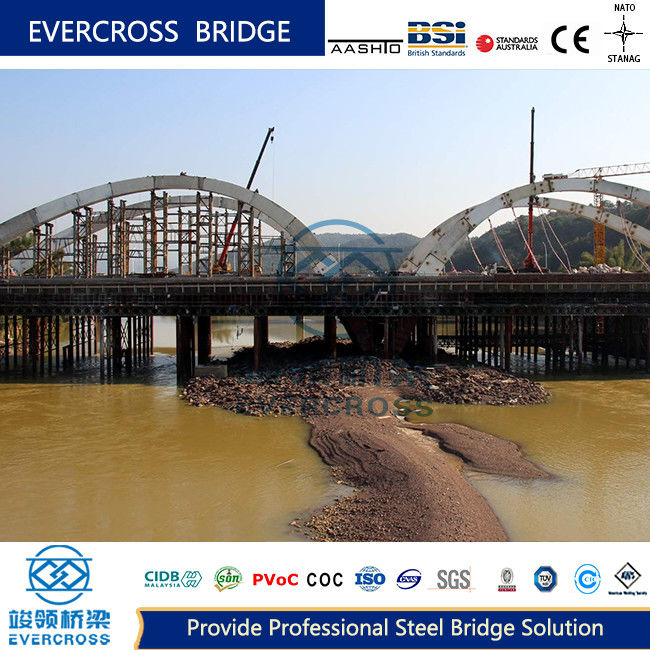

High Performance Large Span Steel Tied Arch Bridge With Paint Surface

Name: High Performance Large Span Steel Tied Arch Bridge With Paint Surface
Brand: EVERCROSS BRIDGE TECHNOLOGY (SHANGHAI) CO.,LTD.
SKU: COMPACT-200; COMPACT-100; CHINA 321 ; PB 100; LSB; GWD; DELTA; 450,etc
Price: 1,500.00 USD
Availability: InStock

Brand Name:	EVERCROSS
Model Number:	COMPACT-200; COMPACT-100; CHINA 321 ; PB 100; LSB; GWD; DELTA; 450,etc
MOQ:	negotiation
Price:	1000USD ~ 2000USD Per ton
Delivery Time:	negotiation
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CNAS; COC; PVOC; SONCAP; CIDB;FORM E;FORM L; FORM M, etc

Product Name:

Steel Arch Bridge

Bridge Deck:

Concrete Deck

Type:

Upper Bearing Type, Middle Bearing Type, Lower Bearing Type

Material:

Prefabricated Steel

Surface Finish:

Shot Blasting ,painted

Application:

Highway, Railway, Pedestrian Bridge

Packaging Details:

According to detailed order

Highlight:

Large Span steel tied arch bridge

Large Span metal arch bridge

Paint Surface steel tied arch bridge

Product Description

High Performance Large Span Steel Tied Arch Bridge With Paint Surface

Product Specifications

Attribute	Value
Product Name	Steel Arch Bridge
Bridge Deck	Concrete Deck
Type	Upper bearing type, Middle bearing type, Lower bearing type
Material	Prefabricated Steel
Surface Finish	Shot blasting, painted
Application	Highway, Railway, Pedestrian Bridge

Structural Design

The steel arch bridge employs an arch structure made primarily of steel, designed to bear weight and forces while distributing them evenly to supports. Known for strength, durability, and aesthetic appeal, the arch shape provides excellent load-bearing capabilities through efficient weight transfer.

Classification by Structure

Section form: Steel box arch, steel pipe arch, steel truss arch
Space posture: Parallel arch ribs, basket arch ribs, butterfly arch ribs
Carriageway position: Upper bearing type, middle bearing type, lower bearing type
Boom layout: Parallel vertical boom, inclined boom, mesh boom

Structural Systems

Simple system arch bridge: Only the arch ring bears force (thrust arch structure)
Combined system arch bridge: Carriageway beam and arch work together (tie arch, loser arch, lange arch)

Key Components

Arch Rib

The primary load-bearing member that mainly withstands axial pressure with some bending moment. Available in truss arch, box arch, or plate arch designs. Truss arches offer light weight, greater span capacity, and good economy.

Boom

Transfers deck load to arch ribs. Available as rigid (steel pipe/section steel) or flexible (high-strength steel wire) designs. Arranged as parallel vertical, inclined, or mesh booms in single or double configurations.

Tie Bar

Bears the thrust of non-thrust arches through rigid or flexible tie rods that withstand significant axial tension.

Cross Brace

Ensures transverse stiffness and stability while withstanding horizontal forces. Common configurations include one-word, K-shaped, X-shaped, and meter-shaped braces.

Design Parameters

Arch axis: Arc line, quadratic parabola, or catenary for optimal force distribution
Rise span ratio: Typically 1/4~1/5 for steel truss arches
Height variation: Equal height or variable height arches for large spans
Vector span ratio: 1/4~1/7 range, adjusted for geological conditions

Material Properties

Flexibility: Allows shaping into curved, aesthetically pleasing profiles
Fatigue Resistance: Withstands repeated loading cycles without deterioration
Constructability: Ideal for prefabrication and modular construction methods

Evercross Steel Bridges Overview

Category	Specifications
Bridge Types	Bailey bridge, Modular bridge, Truss Bridge, Warren bridge, Arch bridge, Plate bridge, Beam bridge, Box girder bridge, Suspension bridge, Cable-stayed bridge, Floating bridge
Design Spans	10M TO 300M Single span
Carriage Way	SINGLE LANE, DOUBLE LANES, MULTILANE, WALKWAY
Loading Capacity	AASHTO HL93.HS15-44, HS20-44, HS25-44, BS5400 HA+20HB, HA+30HB, AS5100 Truck-T44, IRC 70R Class A/B, NATO STANAG MLC80/MLC110, Truck-60T, Trailer-80/100Ton
Steel Grade	EN10025 S355JR S355J0/EN10219 S460J0/EN10113 S460N/BS4360 Grade 55C, AS/NZS3678/3679/1163/Grade 350, ASTM A572/A572M GR50/GR65, GB1591 GB355B/C/D/460C
Certificates	ISO9001, ISO14001, ISO45001, EN1090, CIDB, COC, PVOC, SONCAP
