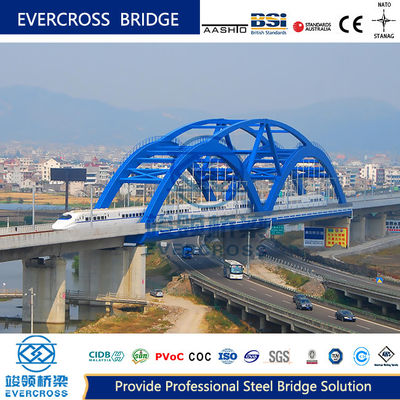

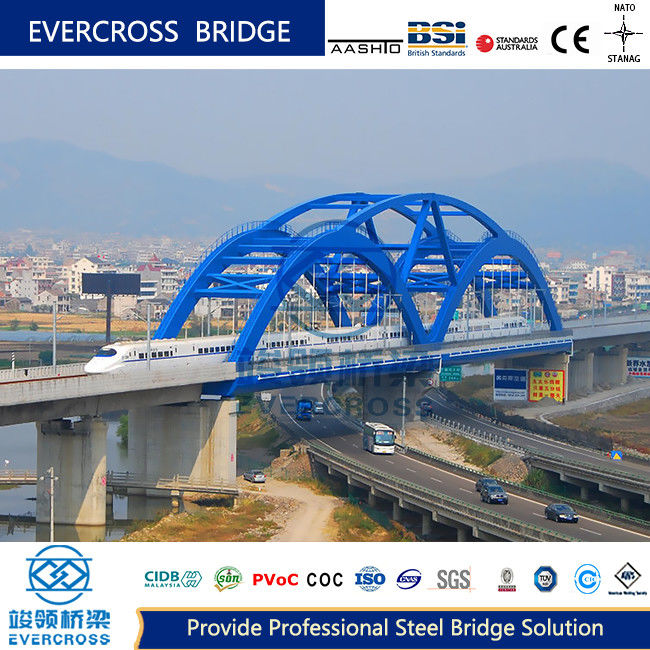

Easy Assembly Steel Truss Arch Bridge Large Span Big Loading Capacity

Name: Easy Assembly Steel Truss Arch Bridge Large Span Big Loading Capacity
Brand: EVERCROSS BRIDGE TECHNOLOGY (SHANGHAI) CO.,LTD.
SKU: COMPACT-200; COMPACT-100; CHINA 321 ; PB 100; LSB; GWD; DELTA; 450,etc
Price: 1,500.00 USD
Availability: InStock

Brand Name:	EVERCROSS
Model Number:	COMPACT-200; COMPACT-100; CHINA 321 ; PB 100; LSB; GWD; DELTA; 450,etc
MOQ:	negotiation
Price:	1000USD ~ 2000USD Per ton
Delivery Time:	negotiation
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CNAS; COC; PVOC; SONCAP; CIDB;FORM E;FORM L; FORM M, etc

Product Name:

Steel Arch Bridge

Bridge Deck:

Concrete Deck

Type:

Upper Bearing Type, Middle Bearing Type, Lower Bearing Type

Material:

Prefabricated Steel

Surface Finish:

Shot Blasting ,painted

Application:

Highway, Railway, Pedestrian Bridge

Packaging Details:

According to detailed order

Highlight:

Easy Assembly Steel Truss Arch Bridge

Easy Assembly metal arch bridge

Large Span Steel Arch Bridge

Product Description

Easy Assembly Steel Truss Arch Bridge - Large Span with High Loading Capacity

Attribute	Value
Product Name	Steel Arch Bridge
Bridge Deck	Concrete Deck
Type	Upper bearing type, Middle bearing type, Lower bearing type
Material	Prefabricated Steel
Surface Finish	Shot blasting, painted
Application	Highway, Railway, Pedestrian Bridge

Structural Design of Steel Arch Bridge

The upper structure of steel arch bridge is primarily composed of arch ring, suspension rod (or arch column), tie rod, bridge beam and other components.

Structural Variations

Intermediate structure has two forms: arch rib with longitudinal beam system or suspended bridge floor structure with tie rod system
Section form classification: steel box arch, steel pipe arch, steel truss arch
Space posture: parallel arch ribs, basket arch ribs, butterfly arch ribs
Carriageway position: upper bearing type, middle bearing type, lower bearing type
Boom layout: parallel vertical boom, inclined boom, mesh boom

Structural Systems

Simple system arch bridge: Only the arch ring bears main forces with thrust directly transferred to foundation.

Combined system arch bridge: Carriageway beam and arch work together, including tie arch, loser arch, and lange arch variations.

Key Design Parameters

Arch rib truss layout
Arch axis configuration
Vector span ratio
Vault and arch foot height selection
Boundary conditions
Bar section form and area

Main Arch Structure

Steel arches can be designed as truss, box, or plate arches. Truss arch bridges are particularly suitable for large spans with excellent economy and structural efficiency.

Truss variations include Pratt, Warren, K truss, and sub-truss forms - each offering distinct mechanical and economic advantages.

Primary Bridge Components

1. Arch Rib

The main load-bearing member primarily resisting axial pressure with some bending moment. Available in box, pipe, or truss configurations with truss type offering superior span capacity and economy.

2. Boom

Transfer component transmitting deck loads to arch ribs. Available as rigid (steel pipe/section) or flexible (high-strength wire) configurations with various elevation arrangements.

3. Tie Bar

Absorbs arch thrust in non-thrust designs, available as rigid or flexible configurations.

4. Cross Brace

Provides transverse stiffness and stability with various configurations including one-word, K-shaped, X-shaped, and meter-shaped braces strategically placed along the span.

Arch Bridge Specifications

Bridge Types	Bailey bridge (Compact-200, Compact-100, LSB, PB100, China-321, BSB) Modular bridge (GWD, Delta, 450-type, etc.) Truss Bridge, Warren bridge, Arch bridge, Plate bridge, Beam bridge, Box girder bridge, Suspension bridge, Cable-stayed bridge, Floating bridge
Design Spans	10M to 300M Single span
Carriage Way	SINGLE LANE, DOUBLE LANES, MULTILANE, WALKWAY
Loading Capacity	AASHTO HL93.HS15-44, HS20-44, HS25-44 BS5400 HA+20HB, HA+30HB AS5100 Truck-T44 IRC 70R Class A/B NATO STANAG MLC80/MLC110 Truck-60T, Trailer-80/100Ton
Steel Grade	EN10025 S355JR S355J0/EN10219 S460J0/EN10113 S460N/BS4360 Grade 55C AS/NZS3678/3679/1163/Grade 350 ASTM A572/A572M GR50/GR65 GB1591 GB355B/C/D/460C
Certificates	ISO9001, ISO14001, ISO45001, EN1090, CIDB, COC, PVOC, SONCAP
