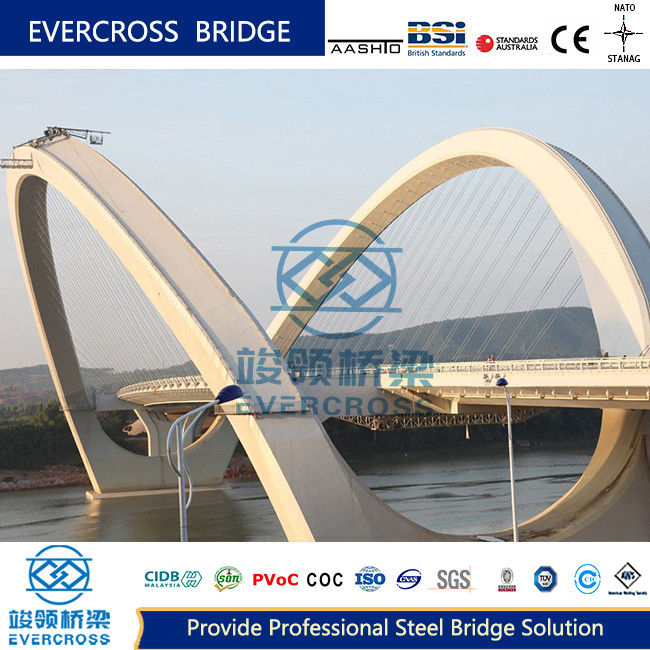

Wind Resistance Steel Arch Bridge Long Life Prefabricated Steel Bridge

Name: Wind Resistance Steel Arch Bridge Long Life Prefabricated Steel Bridge
Brand: EVERCROSS BRIDGE TECHNOLOGY (SHANGHAI) CO.,LTD.
SKU: COMPACT-200; COMPACT-100; CHINA 321 ; PB 100; LSB; GWD; DELTA; 450,etc
Price: 1,500.00 USD
Availability: InStock

Brand Name:	EVERCROSS
Model Number:	COMPACT-200; COMPACT-100; CHINA 321 ; PB 100; LSB; GWD; DELTA; 450,etc
MOQ:	negotiation
Price:	1000USD ~ 2000USD Per ton
Delivery Time:	negotiation
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CNAS; COC; PVOC; SONCAP; CIDB;FORM E;FORM L; FORM M, etc

Product Name:

Steel Arch Bridge

Bridge Deck:

Concrete Deck

Type:

Upper Bearing Type, Middle Bearing Type, Lower Bearing Type

Material:

Prefabricated Steel

Surface Finish:

Shot Blasting ,painted

Application:

Highway, Railway, Pedestrian Bridge

Packaging Details:

According to detailed order

Highlight:

Steel Arch Bridge Long Life

Long Life Prefabricated Steel Bridge

wind resistance Steel Arch Bridge

Product Description

Wind Resistance Steel Arch Bridge Long Life Prefabricated Steel Bridge

Product Name	Steel Arch Bridge
Bridge Deck	Concrete Deck
Type	Upper bearing type, Middle bearing type, Lower bearing type
Material	Prefabricated Steel
Surface Finish	Shot blasting, painted
Application	Highway, Railway, Pedestrian Bridge

Structural Overview

The steel arch bridge is designed with an arch structure primarily made of steel, engineered to efficiently distribute weight and forces from traffic loads to supports at each end (abutments or piers). This prefabricated solution offers long life and high load capacity.

Structural Classification

By section form: Steel box arch, steel pipe arch, steel truss arch
By space posture: Parallel arch ribs, basket arch ribs, butterfly arch ribs
By carriageway position: Upper bearing, middle bearing, and lower bearing types
By boom layout: Parallel vertical boom, inclined boom, mesh boom

Structural Systems

Simple system arch bridge: Features only the arch ring as the main force component, with thrust directly borne by piers or foundation.

Combined system arch bridge: Combines carriageway beam and arch for shared load bearing.

Key Components

Arch Rib

The primary load-bearing member that mainly withstands axial pressure with some bending moment. Available in box, pipe, or truss configurations, with truss arches offering superior span capacity and economy.

Boom

Transfers deck loads to arch ribs, primarily functioning as axial tension members. Available in rigid (steel pipe/section) or flexible (high-strength wire) configurations.

Tie Bar

Bears arch thrust in non-thrust arch designs, available in rigid or flexible configurations to handle significant axial tension.

Cross Brace

Ensures transverse stiffness and stability, with common configurations including one-word, K-shaped, X-shaped, and meter-shaped braces strategically placed along the arch.

Design Parameters

Rise span ratio: Typically 1/4~1/5 for steel truss arches, balancing thrust and structural requirements.

Arch axis: Optimized as arc line, quadratic parabola, or catenary to align with pressure lines.

Arch height: Variable height designs adapt to span requirements and force distribution.

Applications & Features

Steel arch bridges serve diverse applications from highway to railway use, with specialized configurations like tie arches for long spans and Roser arches for heavy-duty requirements. Their prefabricated nature allows for rehabilitation and adaptive reuse, preserving structural integrity while meeting modern demands.

Evercross Steel Bridges Specifications

Product Range	Bailey bridge (Compact-200, Compact-100, LSB, PB100, China-321, BSB), Modular bridge (GWD, Delta, 450-type), Truss Bridge, Warren bridge, Arch bridge, Plate bridge, Beam bridge, Box girder bridge, Suspension bridge, Cable-stayed bridge, Floating bridge
Design Spans	10M TO 300M Single span
Carriage Way	SINGLE LANE, DOUBLE LANES, MULTILANE, WALKWAY
Loading Capacity	AASHTO HL93.HS15-44, HS20-44, HS25-44, BS5400 HA+20HB, HA+30HB, AS5100 Truck-T44, IRC 70R Class A/B, NATO STANAG MLC80/MLC110, Truck-60T, Trailer-80/100Ton
Steel Grade	EN10025 S355JR S355J0/EN10219 S460J0/EN10113 S460N/BS4360 Grade 55C, AS/NZS3678/3679/1163/Grade 350, ASTM A572/A572M GR50/GR65, GB1591 GB355B/C/D/460C
Certificates	ISO9001, ISO14001, ISO45001, EN1090, CIDB, COC, PVOC, SONCAP
