Prefabricated Steel Bridge Segmental Box Girder Bridge Easy Maintenance

Name: Prefabricated Steel Bridge Segmental Box Girder Bridge Easy Maintenance
Brand: EVERCROSS BRIDGE TECHNOLOGY (SHANGHAI) CO.,LTD.
SKU: COMPACT-200; COMPACT-100; CHINA 321 ; PB 100; LSB; GWD; DELTA; 450,etc
Price: 1,500.00 USD
Availability: InStock

Brand Name:	EVERCROSS
Model Number:	COMPACT-200; COMPACT-100; CHINA 321 ; PB 100; LSB; GWD; DELTA; 450,etc
MOQ:	negotiation
Price:	1000USD ~ 2000USD Per ton
Delivery Time:	negotiation
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CNAS; COC; PVOC; SONCAP; CIDB;FORM E;FORM L; FORM M, etc

Product Name:

Steel Box-girder Bridge

Bridge Deck:

Concrete

Type:

Single Box Girder Bridge；Double Box Girder Bridge；Multiple Box Girder Bridge

Material:

Q345B Steel

Grade:

Q345B-Q460C

Application:

Permanent Steel Structural Bridge

Steel Grade:

Q345B-Q460C

Seismic Resistance:

Anti

Width:

10m

Wind Resistance:

Class12

Installation Time:

6months

Height:

Standard:

AISI, ASTM, BS, DIN, GB, JIS

Turnaround Time:

60 To 90 Days

Load Capacity:

150ton

Packaging Details:

According to detailed order

Highlight:

Prefabricated segmental box girder bridge

segmental box girder bridge Easy Maintenance

Prefabricated Steel Bridge Easy Maintenance

Product Description

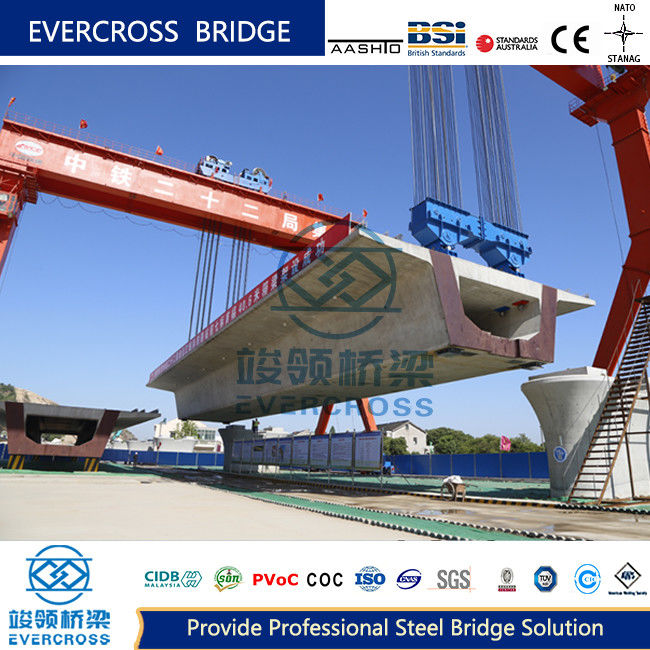

Prefabricated Steel Bridge Segmental Box Girder Bridge

Professional steel box girder bridge offering quick installation and easy maintenance solutions for permanent structural applications.

Product Specifications

Attribute	Value
Product Name	Steel Box-girder bridge
Bridge Deck	Concrete
Type	Single Box Girder Bridge; Double Box Girder Bridge; Multiple Box Girder Bridge
Material	Q345B steel
Grade	Q345B-Q460C
Application	Permanent Steel Structural Bridge
Seismic Resistance	Anti-seismic design
Width	10m
Wind Resistance	Class 12
Installation Time	6 months
Height	3m
Standard	AISI, ASTM, BS, DIN, GB, JIS
Turnaround Time	60 to 90 days
Load Capacity	150ton

Structural Composition

The steel box-girder bridge consists of:

Top plate (bridge panel)
Beam web
Bottom plate
Longitudinal stiffener
Transverse stiffener
Diaphragm plate (cross beam)

Standard plate thickness ranges from 12-30mm for main components and 10-20mm for secondary plates. Manufactured in factory fragments (10-30m sections) with site welding for final assembly.

Orthotropic Steel Bridge Panels

Featuring longitudinal rib sections in open and closed configurations with inverted T-shape cross-sections for optimal structural performance.

Bridge Types and Applications

Box girder construction serves as the primary beam form for various bridge types including beam bridges, suspension bridges, and cable-stayed bridges.

Single Box Steel Beam Bridge

Ideal for bridges with smaller widths (≤3 lanes) or width-to-span ratios <1/10. Features include:

Effective flange width: main beam web interval ≤Le/5
Main beam cantilever length ≤Le/10
Steel deck improves bridge panel stiffness

Double Box Steel Girder Bridge

Recommended for wider bridges where single box dimensions become impractical for production, transportation, or installation.

Multi-box Steel Girder Bridge

Optimal solution for applications with small spans and large bridge widths, featuring uniformly spaced main beams for balanced load distribution.

Structural Support Systems

Engineered support configurations ensure structural stability:

Single-box bridges require two end supports for torque resistance
Multi-box bridges utilize one support per steel box
Temporary fulcrum supports strengthen during construction

Mechanical Characteristics

Engineered to withstand various stress conditions:

Compression flange stability under bending moment
Torsional resistance through transverse partitions
Web reinforcement to prevent buckling

Key Advantages

Lightweight construction with steel savings up to 20%
Superior flexural and torsional stiffness
Rapid installation with minimal maintenance requirements
Excellent suitability for continuous beam formation
Aesthetic, streamlined appearance
Hollow structure facilitates maintenance access

Applications

Versatile solutions for:

Road bridges
Railway crossings
High-speed rail infrastructure

Evercross Steel Bridges Specifications

Category	Specifications
Bridge Types	Bailey bridge, Modular bridge, Truss Bridge, Warren bridge, Arch bridge, Plate bridge, Beam bridge, Box girder bridge, Suspension bridge, Cable-stayed bridge, Floating bridge
Design Spans	10M to 300M Single span
Carriage Way	SINGLE LANE, DOUBLE LANES, MULTILANE, WALKWAY
Loading Capacity	AASHTO HL93.HS15-44, HS20-44, HS25-44, BS5400 HA+20HB, HA+30HB, AS5100 Truck-T44, IRC 70R Class A/B, NATO STANAG MLC80/MLC110, Truck-60T, Trailer-80/100Ton
Steel Grade	EN10025 S355JR S355J0/EN10219 S460J0/EN10113 S460N/BS4360 Grade 55C, AS/NZS3678/3679/1163/Grade 350, ASTM A572/A572M GR50/GR65, GB1591 GB355B/C/D/460C
Certificates	ISO9001, ISO14001, ISO45001, EN1090, CIDB, COC, PVOC, SONCAP
