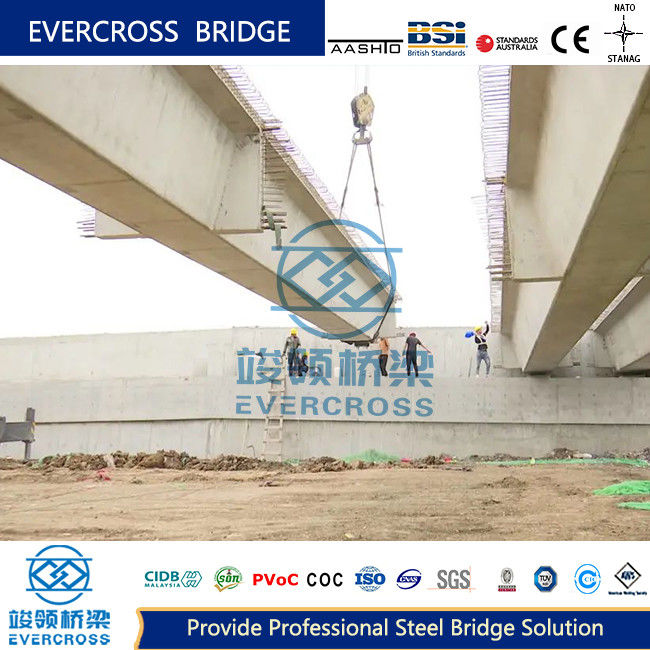

Fast Installed Prefabricated Segmental Box Girder Bridge AISI ASTM Standard

Name: Fast Installed Prefabricated Segmental Box Girder Bridge AISI ASTM Standard
Brand: EVERCROSS BRIDGE TECHNOLOGY (SHANGHAI) CO.,LTD.
SKU: COMPACT-200; COMPACT-100; CHINA 321 ; PB 100; LSB; GWD; DELTA; 450,etc
Price: 1,500.00 USD
Availability: InStock

Brand Name:	EVERCROSS
Model Number:	COMPACT-200; COMPACT-100; CHINA 321 ; PB 100; LSB; GWD; DELTA; 450,etc
MOQ:	negotiation
Price:	1000USD ~ 2000USD Per ton
Delivery Time:	negotiation
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CNAS; COC; PVOC; SONCAP; CIDB;FORM E;FORM L; FORM M, etc

Product Name:

Steel Box-girder Bridge

Bridge Deck:

Concrete

Type:

Single Box Girder Bridge；Double Box Girder Bridge；Multiple Box Girder Bridge

Material:

Prefabricated Steel

Standard:

AISI, ASTM, BS, DIN, GB, JIS

Dimensions:

Customized

Packaging Details:

According to detailed order

Highlight:

Fast Installed Segmental Box Girder Bridge

Fast Installed steel tub girder bridge

ASTM Segmental Box Girder Bridge

Product Description

Fast Installed Prefabricated Segmental Box Girder Bridge AISI ASTM Standard

Product Name	Steel Box-girder bridge
Bridge Deck	Concrete
Type	Single Box Girder Bridge; Double Box Girder Bridge; Multiple Box Girder Bridge
Material	Prefabricated Steel
Standard	AISI, ASTM, BS, DIN, GB, JIS
Dimensions	Customized

Steel Box-Girder Bridge Structure

The steel box-girder bridge is composed of top plate (bridge panel), beam web, bottom plate, longitudinal stiffener, transverse stiffener, and diaphragm plate (cross beam). Factory welding is preferred to ensure weld quality, with strict quality control measures.

Orthotropic Steel Bridge Panels

The top plate features vertical and horizontal stiffeners forming an orthogonal bridge panel. This design offers excellent mechanical properties in both bridge directions, efficiently bears local wheel loads, and optimizes steel usage.

Box girders serve as primary beam forms for various bridge types including beam bridges, suspension bridges, and cable-stayed bridges.

Bridge Types and Applications

Single Box Steel Beam Bridge

Ideal for bridges with width ≤3 lanes or width-to-span ratio <1/10. Features include:

Effective flange width: main beam web interval ≤Le/5
Main beam cantilever length ≤Le/10
Beam spacing: 1.5m-3m (open rib) or 2m-4m (closed rib)

Double Box Steel Girder Bridge

Used when bridge width is large or single box dimensions become impractical for production, transportation, or installation.

Multi-box Steel Girder Bridge

Optimal for wide bridges with small spans, featuring uniformly spaced main beams for balanced load distribution.

Structural Components

Longitudinal Beam

Reduces span of reinforced concrete bridge panels and enhances steel bridge panel stiffness. Spacing ≤3m for concrete panels.

Transverse Beam

Spacing ≤6m when longitudinal beams are present (max 20m without). Ensures lateral load distribution and supports longitudinal beams/bridge panels.

Support Systems

Single-box bridges require two end supports for stability. Multi-box bridges typically use one support per box, with temporary fulcrums for structural reinforcement during installation.

Mechanical Characteristics

Steel box-girder bridges are designed to withstand:

Bending moment-induced compression flange instability
Torque-induced distortion
Concentrated force-induced web crumpling

Structural Reinforcement Measures

Critical reinforcement includes transverse partitions to prevent distortion, stiffening ribs to maintain flange stability, and web reinforcement to resist buckling during fabrication and installation.

Advantages

Superior structural efficiency and stiffness
Versatile applications for road, rail, and high-speed rail
Rapid installation and simplified maintenance
Enhanced durability and longevity
Sustainable construction solution
Lightweight design with optimized steel usage
Excellent torsional resistance and aesthetic appeal

Evercross Steel Bridges Specifications

Product Range	Bailey bridge (Compact-200, Compact-100, LSB, PB100, China-321, BSB), Modular bridge (GWD, Delta, 450-type), Truss Bridge, Warren bridge, Arch bridge, Plate bridge, Beam bridge, Box girder bridge, Suspension bridge, Cable-stayed bridge, Floating bridge
Design Spans	10M to 300M Single span
Carriage Way	SINGLE LANE, DOUBLE LANES, MULTILANE, WALKWAY
Loading Capacity	AASHTO HL93.HS15-44, HS20-44, HS25-44, BS5400 HA+20HB, HA+30HB, AS5100 Truck-T44, IRC 70R Class A/B, NATO STANAG MLC80/MLC110, Truck-60T, Trailer-80/100Ton
Steel Grade	EN10025 S355JR S355J0/EN10219 S460J0/EN10113 S460N/BS4360 Grade 55C, AS/NZS3678/3679/1163/Grade 350, ASTM A572/A572M GR50/GR65, GB1591 GB355B/C/D/460C
Certificates	ISO9001, ISO14001, ISO45001, EN1090, CIDB, COC, PVOC, SONCAP
Welding Standards	AWS D1.1/AWS D1.5, AS/NZS 1554 or equivalent
Bolting Standards	ISO898, AS/NZS1252, BS3692 or equivalent
Galvanization Standards	ISO1461, AS/NZS 4680, ASTM-A123, BS1706 or equivalent
