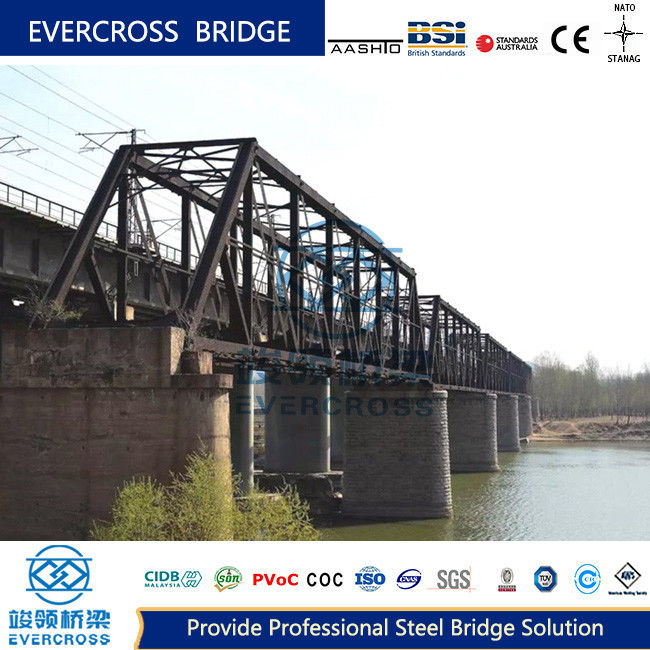

Short Span Single Lanes Steel Truss Bridge Railroad Truss Bridges

Name: Short Span Single Lanes Steel Truss Bridge Railroad Truss Bridges
Brand: EVERCROSS BRIDGE TECHNOLOGY (SHANGHAI) CO.,LTD.
SKU: COMPACT-200; COMPACT-100; CHINA 321 ; PB 100; LSB; GWD; DELTA; 450,etc
Price: 1,500.00 USD
Availability: InStock

Brand Name:	EVERCROSS
Model Number:	COMPACT-200; COMPACT-100; CHINA 321 ; PB 100; LSB; GWD; DELTA; 450,etc
MOQ:	negotiation
Price:	1000USD ~ 2000USD Per ton
Delivery Time:	negotiation
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CNAS; COC; PVOC; SONCAP; CIDB;FORM E;FORM L; FORM M, etc

Product Name:

Steel Truss Bridge

Material:

Prefabricate Steel

Spans:

Short And Medium Spans

Bridge Deck:

Composite Deck

Surface Protection:

Painted

Standard:

AISI, ASTM, BS, DIN, GB, JIS

Surface Finish:

Painted Or Galvanized

Size:

Customized Size

Packaging Details:

According to detailed order

Highlight:

Short Span Steel Truss Bridge

Short Span Railroad Truss Bridges

Single Lanes Railroad Truss Bridges

Product Description

Short Span Single Lanes Steel Truss Bridge Railroad Truss Bridges

Attribute	Value
Product Name	Steel Truss Bridge
Material	Prefabricate Steel
Spans	Short And Medium Spans
Bridge Deck	Composite Deck
Surface Protection	Painted
Standard	AISI, ASTM, BS, DIN, GB, JIS
Surface Finish	Painted or Galvanized
Size	Customized Size

Steel Truss Bridge Overview

The steel truss bridge is a structural system between beams and arches, combining a bent upper beam structure and pressure-bearing lower column into an integrated compression-bending and thrust structure.

Structural Components

Main Girder

The primary load-bearing structure composed of upper chord, lower chord and belly rod (diagonal and vertical bars). Nodes are categorized as large or small with defined pitch distances.

Bracing System

Includes longitudinal and horizontal connections that stabilize the structure against lateral loads. The system connects main trusses and adjusts force distribution across components.

Bridge Deck System

Comprising longitudinal beams and connections that transfer loads from the deck to the main truss through a defined force transmission path.

Bridge Floor

The walking surface for vehicles and pedestrians, similar in form to steel beam and combined beam bridges.

Main Truss Types

Triangular Truss

Simple structure with fixed design, easy to install and manufacture.

Diagonal Bar Truss

Features multiple bar specifications with large internal forces in vertical rods and all large nodes.

K-Shaped Truss

Distributes shear force across two diagonal rods, suitable for mounting/dismounting bridges with complex structure for small/medium spans.

Double-Vented Bar Truss

Ideal for large spans with short compression rods that enhance buckling stability and joint plate arrangement.

Key Advantages

Cost-effective material usage and shorter construction time
Architectural flexibility for aesthetic designs
Large span capability with fast construction
Energy efficient and fully customizable
Low maintenance requirements

Applications

Emergency or temporary bridges
Iconic landmarks and architectural features
River and waterway crossings
Railroad and vehicular bridges
Various span lengths and load requirements

Evercross Steel Bridges Specifications

Product Line	Bailey bridge (Compact-200, Compact-100, LSB, PB100, China-321, BSB), Modular bridge (GWD, Delta, 450-type), Truss Bridge, Warren bridge, Arch bridge, Plate bridge, Beam bridge, Box girder bridge, Suspension bridge, Cable-stayed bridge, Floating bridge
Design Spans	10M to 300M single span
Carriage Way	Single lane, double lanes, multilane, walkway
Loading Capacity	AASHTO HL93.HS15-44, HS20-44, HS25-44, BS5400 HA+20HB, HA+30HB, AS5100 Truck-T44, IRC 70R Class A/B, NATO STANAG MLC80/MLC110, Truck-60T, Trailer-80/100Ton
Steel Grade	EN10025 S355JR S355J0/EN10219 S460J0/EN10113 S460N/BS4360 Grade 55C, AS/NZS3678/3679/1163/Grade 350, ASTM A572/A572M GR50/GR65, GB1591 GB355B/C/D/460C
Certificates	ISO9001, ISO14001, ISO45001, EN1090, CIDB, COC, PVOC, SONCAP
Welding Standards	AWS D1.1/AWS D1.5, AS/NZS 1554 or equivalent
Bolts	ISO898, AS/NZS1252, BS3692 or equivalent
Galvanization Code	ISO1461, AS/NZS 4680, ASTM-A123, BS1706 or equivalent
