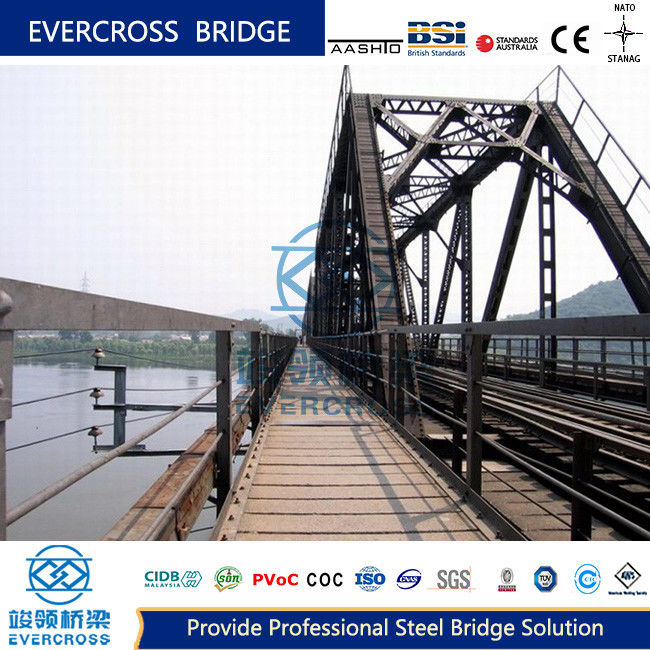

Portable Truss Steel Bridge With Composite Deck EN10113 S460N

Name: Portable Truss Steel Bridge With Composite Deck EN10113 S460N
Brand: EVERCROSS BRIDGE TECHNOLOGY (SHANGHAI) CO.,LTD.
SKU: COMPACT-200; COMPACT-100; CHINA 321 ; PB 100; LSB; GWD; DELTA; 450,etc
Price: 1,500.00 USD
Availability: InStock

Brand Name:	EVERCROSS
Model Number:	COMPACT-200; COMPACT-100; CHINA 321 ; PB 100; LSB; GWD; DELTA; 450,etc
MOQ:	negotiation
Price:	1000USD ~ 2000USD Per ton
Delivery Time:	negotiation
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CNAS; COC; PVOC; SONCAP; CIDB;FORM E;FORM L; FORM M, etc

Product Name:

Steel Truss Bridge

Material:

Prefabricate Steel

Spans:

Short And Medium Spans

Bridge Deck:

Composite Deck

Surface Protection:

Painted

Standard:

AISI, ASTM, BS, DIN, GB, JIS

Surface Finish:

Painted Or Galvanized

Size:

Customized Size

Packaging Details:

According to detailed order

Highlight:

EN10113 Truss Steel Bridge

Composite Deck Truss Steel Bridge

S460N Portable Steel Bridge

Product Description

Portable Truss Steel Bridge With Composite Deck EN10113 S460N

Product Specifications

Product Name	Steel Truss Bridge
Material	Prefabricate Steel
Spans	Short And Medium Spans
Bridge Deck	Composite Deck
Surface Protection	Painted
Standard	AISI, ASTM, BS, DIN, GB, JIS
Surface Finish	Painted or Galvanized
Size	Customized Size

Steel Truss Bridge Overview

The steel truss bridge is a structural system that combines beam and arch elements, featuring an integrated upper beam structure and pressure-bearing lower columns. This rigid connection creates a compression-bending and thrust structure with excellent load-bearing capabilities.

Structural Components

Main Girder: Primary load-bearing structure composed of upper chord, lower chord, and belly rods (diagonal and vertical bars)
Bracing: Includes longitudinal and horizontal connections that stabilize the structure against lateral loads
Bridge Deck System: Transfers loads from longitudinal beams to cross beams and then to the main truss
Bridge Floor: Walking surface for vehicles and pedestrians, available in upper or lower bearing configurations

Main Truss Types

Triangular Truss

Simple structure with fixed design, easy to install and manufacture.

Diagonal Bar Truss

Features multiple bar specifications with large internal forces in vertical rods.

K-Shaped Truss

Distributes shear force across two diagonal rods, ideal for mounting and dismounting bridges.

Double-Vented Bar Truss

Excellent for large spans with short compression rods that enhance buckling stability.

Key Advantages

Large span capability
Rapid construction and deployment
Exceptional durability against corrosion and weathering
Versatile design configurations for various applications
Aesthetic architectural appearance
Fully customizable solutions

Applications

Ideal for emergency or temporary bridges that require quick assembly and disassembly, particularly useful for disaster recovery situations and temporary crossings during maintenance operations.

Evercross Steel Bridges Specifications

Bridge Types	Bailey bridge (Compact-200, Compact-100, LSB, PB100, China-321, BSB), Modular bridge (GWD, Delta, 450-type), Truss Bridge, Warren bridge, Arch bridge, Plate bridge, Beam bridge, Box girder bridge, Suspension bridge, Cable-stayed bridge, Floating bridge
Design Spans	10M to 300M single span
Carriage Way	Single lane, double lanes, multilane, walkway
Loading Capacity	AASHTO HL93, HS15-44, HS20-44, HS25-44, BS5400 HA+20HB, HA+30HB, AS5100 Truck-T44, IRC 70R Class A/B, NATO STANAG MLC80/MLC110, Truck-60T, Trailer-80/100Ton
Steel Grade	EN10025 S355JR S355J0/EN10219 S460J0/EN10113 S460N/BS4360 Grade 55C, AS/NZS3678/3679/1163/Grade 350, ASTM A572/A572M GR50/GR65, GB1591 GB355B/C/D/460C
Certificates	ISO9001, ISO14001, ISO45001, EN1090, CIDB, COC, PVOC, SONCAP
Welding Standards	AWS D1.1/AWS D1.5, AS/NZS 1554 or equivalent
Bolts	ISO898, AS/NZS1252, BS3692 or equivalent
Galvanization Code	ISO1461, AS/NZS 4680, ASTM-A123, BS1706 or equivalent
