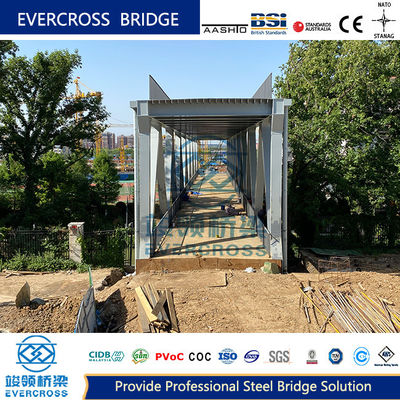

ODM High Strength Steel Truss Bridge Rigid Connection Prefab Steel Bridge

Name: ODM High Strength Steel Truss Bridge Rigid Connection Prefab Steel Bridge
Brand: EVERCROSS BRIDGE TECHNOLOGY (SHANGHAI) CO.,LTD.
SKU: COMPACT-200; COMPACT-100; CHINA 321 ; PB 100; LSB; GWD; DELTA; 450,etc
Price: 1,500.00 USD
Availability: InStock

Brand Name:	EVERCROSS
Model Number:	COMPACT-200; COMPACT-100; CHINA 321 ; PB 100; LSB; GWD; DELTA; 450,etc
MOQ:	negotiation
Price:	1000USD ~ 2000USD Per ton
Delivery Time:	negotiation
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CNAS; COC; PVOC; SONCAP; CIDB;FORM E;FORM L; FORM M, etc

Product Name:

Steel Truss Bridge

Material:

Prefabricate Steel

Spans:

Short And Medium Spans

Bridge Deck:

Composite Deck

Surface Protection:

Painted

Standard:

AISI, ASTM, BS, DIN, GB, JIS

Surface Finish:

Painted Or Galvanized

Size:

Customized Size

Packaging Details:

According to detailed order

Highlight:

ODM Prefab Steel Bridge

High Strength Steel Pedestrian Truss Bridge

High Strength Prefab Steel Bridge

Product Description

ODM High Strength Steel Truss Bridge Rigid Connection Prefab Steel Bridge

Product Specifications

Attribute	Value
Product Name	Steel Truss Bridge
Material	Prefabricated Steel
Spans	Short And Medium Spans
Bridge Deck	Composite Deck
Surface Protection	Painted
Standard	AISI, ASTM, BS, DIN, GB, JIS
Surface Finish	Painted or Galvanized
Size	Customized Size

Steel Truss Bridge Overview

The steel truss bridge is a structural system between beams and arches, combining a bent upper beam structure with pressure-bearing lower columns in an integrated design. This rigid connection creates a compression-bending and thrust structure that efficiently distributes loads.

Structural Configuration

Based on bridge floor position, we offer two configurations:

Upper Bearing: Bridge floor located above the main truss
Lower Bearing: Bridge floor located below the main truss

Key Structural Components

Main Girder

The primary load-bearing structure composed of upper chord, lower chord, and belly rods (diagonal and vertical bars). Nodes are categorized as large or small with defined pitch distances.

Bracing System

Includes longitudinal and horizontal connections that stabilize the structure against lateral loads. The system features:

Upper and lower horizontal longitudinal connections for transverse load resistance
Bridge frame and crosslink transverse connections to enhance torsional stiffness

Bridge Deck System

Comprising longitudinal beams, transverse beams, and their connections, this system transfers loads from the deck to the main truss through a defined path.

Bridge Floor

The walking surface for vehicles and pedestrians, designed similarly to steel beam and combined beam bridges.

Truss Types

We manufacture several truss configurations to meet different engineering requirements:

Triangular Truss

Simple design with fixed specifications for easy installation and manufacturing.

Diagonal Bar Truss

Features multiple bar specifications with large nodes and significant vertical rod internal forces.

K-Shaped Truss

Shear forces distributed across two diagonal rods, creating shorter sections ideal for mounting/dismounting bridges.

Double-Vented Bar Truss

Features two diagonal rods per node, excellent for large spans with favorable buckling stability and simplified joint arrangements.

Key Advantages

Large span capability
Rapid construction
Excellent seismic performance
Wide application range
Aesthetic appearance
Fully customizable designs
High strength-to-weight ratio
Durable triangular truss configuration

Applications

Our steel truss bridges serve diverse applications including:

Urban bridges and highway viaducts
Railroad bridges (standard gauge and light rail)
Industrial material transport systems
Pedestrian overpasses
Specialty spans from 10m to 300m

Evercross Steel Bridges Specifications

Category	Specifications
Bridge Types	Bailey bridge, Modular bridge, Truss Bridge, Warren bridge, Arch bridge, Plate bridge, Beam bridge, Box girder bridge, Suspension bridge, Cable-stayed bridge, Floating bridge
Design Spans	10M TO 300M Single span
Carriage Way	SINGLE LANE, DOUBLE LANES, MULTILANE, WALKWAY
Loading Capacity	AASHTO HL93.HS15-44, HS20-44, HS25-44, BS5400 HA+20HB, HA+30HB, AS5100 Truck-T44, IRC 70R Class A/B, NATO STANAG MLC80/MLC110, Truck-60T, Trailer-80/100Ton
Steel Grade	EN10025 S355JR S355J0/EN10219 S460J0/EN10113 S460N/BS4360 Grade 55C, AS/NZS3678/3679/1163/Grade 350, ASTM A572/A572M GR50/GR65, GB1591 GB355B/C/D/460C
Certificates	ISO9001, ISO14001, ISO45001, EN1090, CIDB, COC, PVOC, SONCAP
