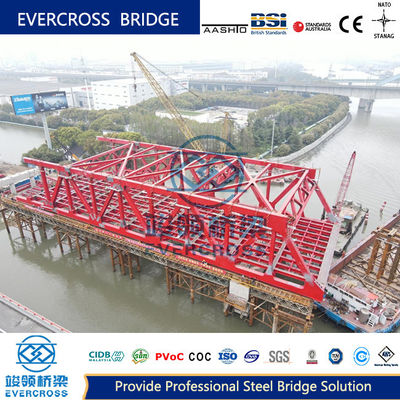

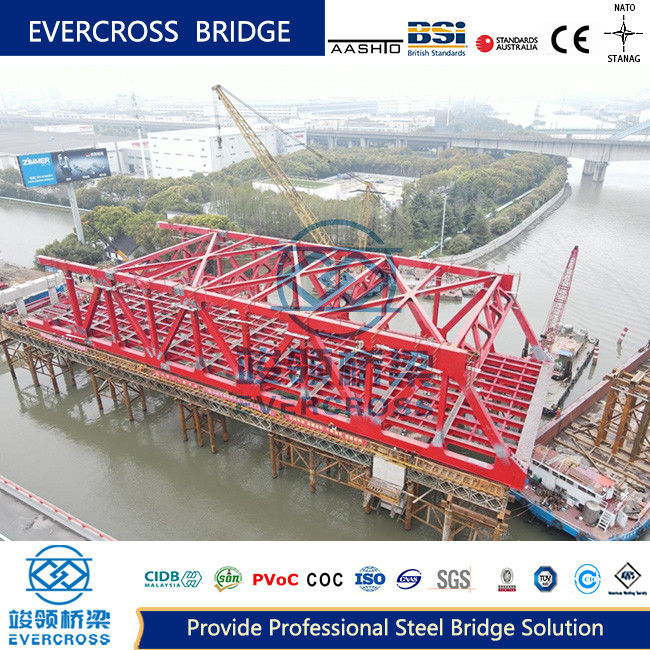

The steel truss bridge is a structural system between beams and arches, combining a bent upper beam structure with pressure-bearing lower columns in an integrated design. This rigid connection creates a compression-bending and thrust structure that efficiently distributes loads.

The primary load-bearing structure composed of upper chord, lower chord, and belly rods (diagonal and vertical bars). Nodes are categorized as large or small, with pitch referring to the distance between nodes.

Includes longitudinal and horizontal connections that stabilize the structure against lateral loads. The system connects main trusses to form a robust space structure resistant to wind, rocking forces, and torsion.

Comprising longitudinal beams and cross beams that transfer loads from the deck to the main truss structure.

The walking surface for vehicles and pedestrians, available in upper or lower bearing configurations relative to the main truss.

• Large span capability
• Fast construction speed
• Energy efficient design
• Wide application range
• Fully customizable configurations
• High strength-to-weight ratio
• Durable against corrosion and weathering

Simple structure with fixed design for easy installation and manufacturing.

Features multiple bar specifications with large nodes and significant vertical rod forces.

Distributes shear forces across two diagonal rods, ideal for mounting and dismounting bridges.

Optimized for large spans with short compression rods that enhance buckling stability.
