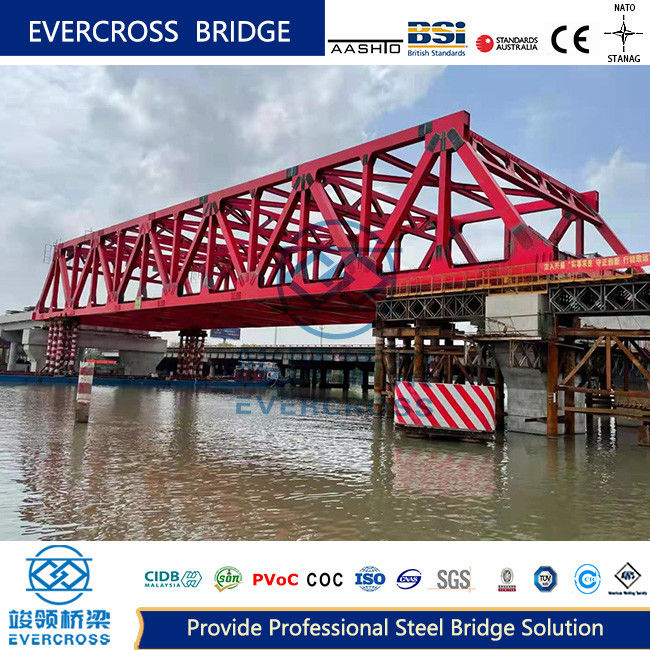

The steel truss bridge is a structural system between beams and arches, combining a bent upper beam structure and pressure-bearing lower column into an integrated compression-bending and thrust structure.

• Main Girder: Primary load-bearing structure composed of upper chord, lower chord, and belly rods (diagonal and vertical bars)
• Bracing: Longitudinal and horizontal connections that stabilize the structure against lateral loads
• Bridge Deck System: Transfers load from deck to main truss through longitudinal beams and cross beams
• Bridge Floor: Roadway or platform for vehicles and pedestrians

• Triangular truss pattern for optimal load distribution
• Available in upper or lower bearing configurations
• Versatile span lengths from short to long distances
• Off-site fabrication enables rapid construction
• Economical and standardized design for easy manufacturing

Simple structure with fixed design for easy installation and manufacturing.

Features multiple bar specifications with large nodes and significant vertical rod forces.

Distributes shear force through two diagonal rods, ideal for mounting/dismounting bridges.

Optimized for large spans with short compression rods that enhance buckling stability.

• Excellent seismic performance
• Wide range of applications
• Capable of large spans
• Energy efficient construction
• Attractive architectural appearance
• Fully customizable designs
