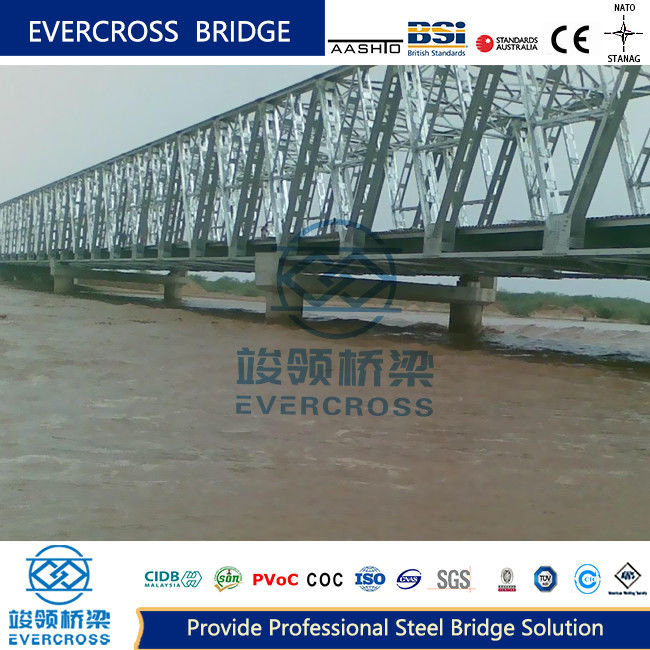

Medium Spans Prefabricated Truss Bridge EN10025-4 S460J0M Fast Installed

Name: Medium Spans Prefabricated Truss Bridge EN10025-4 S460J0M Fast Installed
Brand: EVERCROSS BRIDGE TECHNOLOGY (SHANGHAI) CO.,LTD.
SKU: COMPACT-200; COMPACT-100; CHINA 321 ; PB 100; LSB; GWD; DELTA; 450,etc
Price: 1,500.00 USD
Availability: InStock

Brand Name:	EVERCROSS
Model Number:	COMPACT-200; COMPACT-100; CHINA 321 ; PB 100; LSB; GWD; DELTA; 450,etc
MOQ:	negotiation
Price:	1000USD ~ 2000USD Per ton
Delivery Time:	negotiation
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CNAS; COC; PVOC; SONCAP; CIDB;FORM E;FORM L; FORM M, etc

Product Name:

Steel Truss Bridge

Material:

Prefabricate Steel

Spans:

Short And Medium Spans

Bridge Deck:

Composite Deck

Surface Protection:

Painted

Standard:

AISI, ASTM, BS, DIN, GB, JIS

Surface Finish:

Painted Or Galvanized

Size:

Customized Size

Packaging Details:

According to detailed order

Highlight:

Medium Spans Prefabricated Truss Bridge

Fast Installed Prefabricated Truss Bridge

Fast Installed metal truss bridge

Product Description

Medium Spans Prefabricated Truss Bridge EN10025-4 S460J0M

Product Specifications

Attribute	Value
Product Name	Steel Truss Bridge
Material	Prefabricated Steel
Spans	Short and Medium Spans
Bridge Deck	Composite Deck
Surface Protection	Painted
Standard	AISI, ASTM, BS, DIN, GB, JIS
Surface Finish	Painted or Galvanized
Size	Customized Size

Steel Truss Bridge Overview

The steel truss bridge is an efficient structural system combining beam and arch elements, featuring integrated upper beam structures and pressure-bearing lower columns. This rigid connection creates a compression-bending structure that offers superior load distribution.

Structural Components

Main Girder

The primary load-bearing structure composed of upper chord, lower chord, and belly rod (including diagonal and vertical bars). Pitch refers to the distance between nodes.

Bracing System

Includes longitudinal and horizontal connections
Creates stable space structure for lateral load resistance
Reduces chord free length and increases torsional stiffness

Bridge Deck System

Comprising longitudinal beams, transverse beams, and their connections, transferring loads from deck to main truss through a systematic force transmission path.

Bridge Deck

The roadway platform for vehicles and pedestrians, available in configurations similar to steel beam and combined beam bridges.

Truss Configuration Types

Triangular Truss

Simple structure with fixed design, offering easy installation and manufacturing.

Diagonal Bar Truss

Features multiple bar specifications with large internal forces in vertical rods.

K-Shaped Truss

Distributes shear force across two diagonal rods, ideal for mounting/dismounting bridges with short, lightweight components.

Double-Vented Bar Truss

Excellent for large spans with short compression rods that enhance buckling stability and simplify joint arrangements.

Key Advantages

Sustainable Construction: Made from highly recyclable steel materials
Structural Efficiency: Optimal load distribution through integrated design
Customization: Available in multiple configurations for various span requirements
Durability: Long service life with painted or galvanized surface protection

Technical Specifications

Evercross Steel Bridges Overview

Category	Specifications
Bridge Types	Bailey bridge, Modular bridge, Truss Bridge, Warren bridge, Arch bridge, Plate bridge, Beam bridge, Box girder bridge, Suspension bridge, Cable-stayed bridge, Floating bridge
Design Spans	10M to 300M Single span
Carriage Way	Single lane, Double lanes, Multilane, Walkway
Loading Capacity	AASHTO HL93.HS15-44, HS20-44, HS25-44, BS5400 HA+20HB, HA+30HB, AS5100 Truck-T44, IRC 70R Class A/B, NATO STANAG MLC80/MLC110
Steel Grade	EN10025 S355JR S355J0/EN10219 S460J0/EN10113 S460N/BS4360 Grade 55C, ASTM A572/A572M GR50/GR65, GB1591 GB355B/C/D/460C
Certifications	ISO9001, ISO14001, ISO45001, EN1090, CIDB, COC, PVOC, SONCAP
