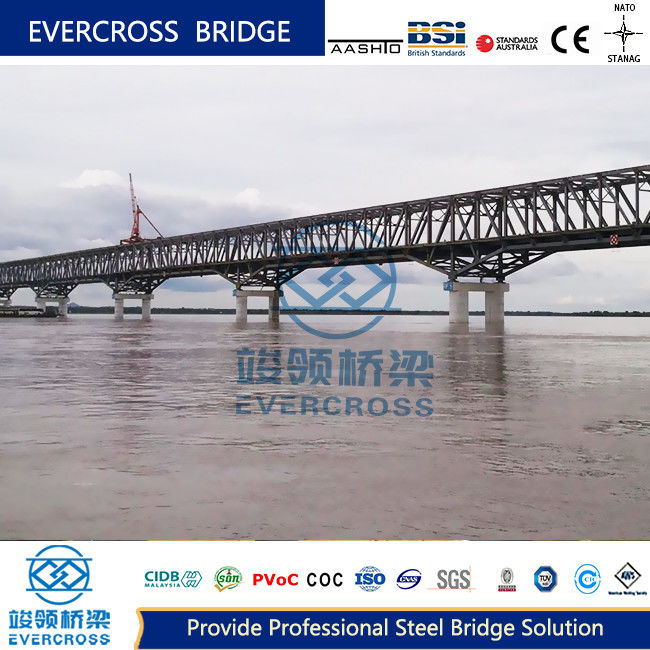

High Strength Simple Bailey Truss Bridge Prefab Steel Bridges With Steel Deck

Name: High Strength Simple Bailey Truss Bridge Prefab Steel Bridges With Steel Deck
Brand: EVERCROSS BRIDGE TECHNOLOGY (SHANGHAI) CO.,LTD.
SKU: COMPACT-200; COMPACT-100; CHINA 321 ; PB 100; LSB; GWD; DELTA; 450,etc
Price: 1,500.00 USD
Availability: InStock

Brand Name:	EVERCROSS
Model Number:	COMPACT-200; COMPACT-100; CHINA 321 ; PB 100; LSB; GWD; DELTA; 450,etc
MOQ:	negotiation
Price:	1000USD ~ 2000USD Per ton
Delivery Time:	negotiation
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CNAS; COC; PVOC; SONCAP; CIDB;FORM E;FORM L; FORM M, etc

Product Name:

Steel Truss Bridge

Material:

Prefabricate Steel

Spans:

Short And Medium Spans

Bridge Deck:

Composite Deck

Surface Protection:

Painted

Standard:

AISI, ASTM, BS, DIN, GB, JIS

Surface Finish:

Painted Or Galvanized

Size:

Customized Size

Packaging Details:

According to detailed order

Highlight:

Steel Deck Bailey Truss Bridge

Steel Deck Prefab Steel Bridges

High Strength Bailey Truss Bridge

Product Description

High Strength Simple Bailey Truss Bridge Prefab Steel Bridges With Steel Deck

Attribute	Value
Product Name	Steel Truss Bridge
Material	Prefabricate Steel
Spans	Short And Medium Spans
Bridge Deck	Composite Deck
Surface Protection	Painted
Standard	AISI, ASTM, BS, DIN, GB, JIS
Surface Finish	Painted or Galvanized
Size	Customized Size

Steel Truss Bridge Overview

The steel truss bridge is a structural system combining beam and arch elements, featuring an integrated upper beam structure and lower pressure-bearing columns. This rigid connection creates a compression-bending and thrust structure that efficiently distributes loads.

Structural Components

Main Girder: Primary load-bearing structure composed of upper chord, lower chord, and belly rods (diagonal and vertical bars). Nodes are categorized as large or small with defined pitch distances.

Bracing: Includes longitudinal and horizontal connections that stabilize the structure against lateral loads. The system reduces chord free length and enhances torsional stiffness.

Bridge Deck System: Comprises longitudinal beams and cross beams that transfer loads from the deck to the main truss structure.

Bridge Floor: The walking/riding surface for vehicles and pedestrians, similar in form to steel beam bridges.

Truss Bridge Types

Triangular Truss

Simple design with fixed specifications, offering easy installation and manufacturing.

Diagonal Bar Truss

Features multiple bar specifications with significant vertical rod internal forces and large nodes.

K-Shaped Truss

Distributes shear force across two diagonal rods, creating shorter sections ideal for mounting/dismounting bridges. Complex for small spans but efficient for large spans.

Double-Vented Bar Truss

Excellent for large spans with short compression rods that enhance buckling stability. Features simplified joint plate arrangements.

Applications

Highway and Road Bridges
Pedestrian Bridges
Iconic Landmarks

Key Advantages

Large span capability
Rapid construction from prefabricated components
Exceptional durability against corrosion and weathering
Superior seismic performance
Customizable designs for diverse applications

Evercross Steel Bridges Specifications

Category	Specifications
Bridge Types	Bailey bridge, Modular bridge, Truss Bridge, Warren bridge, Arch bridge, Plate bridge, Beam bridge, Box girder bridge, Suspension bridge, Cable-stayed bridge, Floating bridge
Design Spans	10M to 300M Single span
Carriage Way	SINGLE LANE, DOUBLE LANES, MULTILANE, WALKWAY
Loading Capacity	AASHTO HL93.HS15-44, HS20-44, HS25-44, BS5400 HA+20HB, HA+30HB, AS5100 Truck-T44, IRC 70R Class A/B, NATO STANAG MLC80/MLC110, Truck-60T, Trailer-80/100Ton
Steel Grade	EN10025 S355JR S355J0/EN10219 S460J0/EN10113 S460N/BS4360 Grade 55C, AS/NZS3678/3679/1163/Grade 350, ASTM A572/A572M GR50/GR65, GB1591 GB355B/C/D/460C
Certificates	ISO9001, ISO14001, ISO45001, EN1090, CIDB, COC, PVOC, SONCAP
Welding Standards	AWS D1.1/AWS D1.5, AS/NZS 1554 or equivalent
Bolts	ISO898, AS/NZS1252, BS3692 or equivalent
Galvanization Code	ISO1461, AS/NZS 4680, ASTM-A123, BS1706 or equivalent
