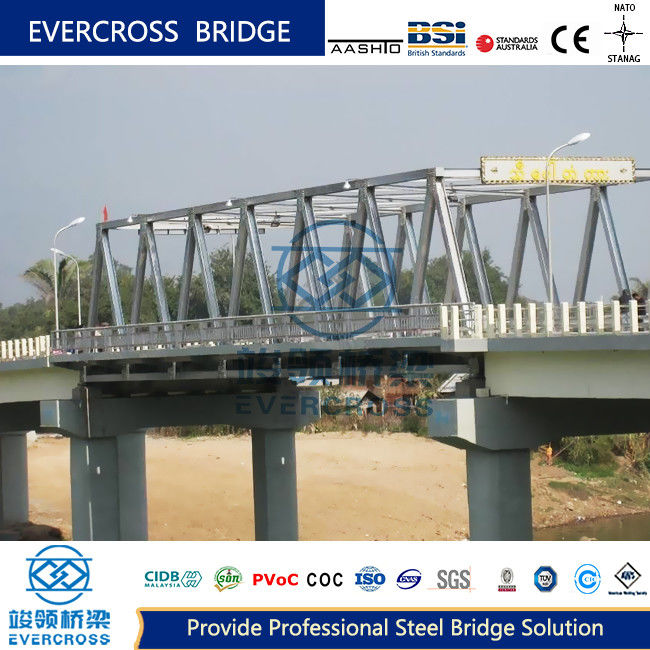

Economic Steel Truss Bridge Structural Steel Bridge With Double Lanes

Name: Economic Steel Truss Bridge Structural Steel Bridge With Double Lanes
Brand: EVERCROSS BRIDGE TECHNOLOGY (SHANGHAI) CO.,LTD.
SKU: COMPACT-200; COMPACT-100; CHINA 321 ; PB 100; LSB; GWD; DELTA; 450,etc
Price: 1,500.00 USD
Availability: InStock

Brand Name:	EVERCROSS
Model Number:	COMPACT-200; COMPACT-100; CHINA 321 ; PB 100; LSB; GWD; DELTA; 450,etc
MOQ:	negotiation
Price:	1000USD ~ 2000USD Per ton
Delivery Time:	negotiation
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CNAS; COC; PVOC; SONCAP; CIDB;FORM E;FORM L; FORM M, etc

Product Name:

Steel Truss Bridge

Material:

Prefabricate Steel

Spans:

Short And Medium Spans

Bridge Deck:

Composite Deck

Surface Protection:

Painted

Standard:

AISI, ASTM, BS, DIN, GB, JIS

Surface Finish:

Painted Or Galvanized

Size:

Customized Size

Packaging Details:

According to detailed order

Highlight:

Double Lanes Steel Truss Bridge

Economic Structural Steel Bridge

Double Lanes Structural Steel Bridge

Product Description

Economic Steel Truss Bridge Structural Steel Bridge With Double Lanes

Product Specifications

Attribute	Value
Product Name	Steel Truss Bridge
Material	Prefabricate Steel
Spans	Short And Medium Spans
Bridge Deck	Composite Deck
Surface Protection	Painted
Standard	AISI, ASTM, BS, DIN, GB, JIS
Surface Finish	Painted or Galvanized
Size	Customized Size

Steel Truss Bridge Overview

The steel truss bridge is a structural system between beams and arches, combining a bent upper beam structure and pressure-bearing lower column into an integrated compression-bending and thrust structure.

Bridge Types by Position

Upper Bearing: Bridge floor located in the upper part of the main truss
Lower Bearing: Bridge floor located in the lower part of the main truss

Common Truss Types

Warren Truss: Features alternating diagonals in a zigzag pattern with vertical support members
Howe Truss: Utilizes diagonal members sloping away from the span center with vertical supports

Structural Components

Main Girder

The primary load-bearing structure composed of upper chord, lower chord, and belly rod (diagonal and vertical bars). Nodes are categorized as large or small with defined pitch distances.

Bracing System

Includes longitudinal and horizontal connections that stabilize the structure against lateral loads. The system supports transverse forces and enhances torsional stiffness.

Bridge Deck System

Comprising longitudinal beams and connections that transfer loads from the deck to the main truss through a defined force path.

Bridge Floor

The walking surface for vehicles and pedestrians, similar in form to steel beam and combined beam bridges.

Main Truss Categories

Triangular Truss

Simple structure with fixed design, easy to manufacture and install.

Diagonal Bar Truss

Features multiple bar specifications with large internal forces in vertical rods and all large nodes.

K-Shaped Truss

Distributes shear force across two diagonal rods, suitable for mounting/dismounting bridges with complex structure for small/medium spans.

Double-Vented Bar Truss

Ideal for large spans with short compression rods that enhance buckling stability and simplify joint plate arrangements.

Key Advantages

Large span capability
Rapid construction through prefabrication
High strength and durability for heavy loads
Excellent seismic performance
Aesthetic architectural appearance
Wide range of applications

Applications

Urban bridges and highway viaducts
Railroad bridges for standard gauge and light rail systems
Industrial bridges for material transportation
Medium and small span reinforced concrete structures
Long span prestressed reinforced concrete constructions

Evercross Steel Bridges Specifications

Category	Specifications
Bridge Types	Bailey bridge, Modular bridge, Truss Bridge, Warren bridge, Arch bridge, Plate bridge, Beam bridge, Box girder bridge, Suspension bridge, Cable-stayed bridge, Floating bridge
Design Spans	10M TO 300M Single span
Carriage Way	SINGLE LANE, DOUBLE LANES, MULTILANE, WALKWAY
Loading Capacity	AASHTO HL93.HS15-44, HS20-44, HS25-44, BS5400 HA+20HB, HA+30HB, AS5100 Truck-T44, IRC 70R Class A/B, NATO STANAG MLC80/MLC110, Truck-60T, Trailer-80/100Ton
Steel Grade	EN10025 S355JR S355J0/EN10219 S460J0/EN10113 S460N/BS4360 Grade 55C, AS/NZS3678/3679/1163/Grade 350, ASTM A572/A572M GR50/GR65, GB1591 GB355B/C/D/460C
Certificates	ISO9001, ISO14001, ISO45001, EN1090, CIDB, COC, PVOC, SONCAP
Welding	AWS D1.1/AWS D1.5, AS/NZS 1554 or equivalent
Bolts	ISO898, AS/NZS1252, BS3692 or equivalent
Galvanization Code	ISO1461, AS/NZS 4680, ASTM-A123, BS1706 or equivalent
