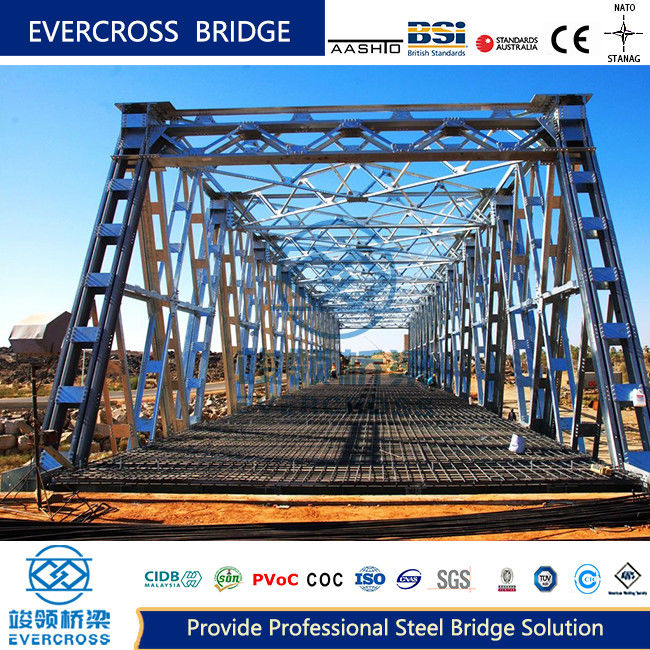

COC Certificate Prefabricated Truss Bridge Composite Deck Truss Bridge Galvanized

Name: COC Certificate Prefabricated Truss Bridge Composite Deck Truss Bridge Galvanized
Brand: EVERCROSS BRIDGE TECHNOLOGY (SHANGHAI) CO.,LTD.
SKU: COMPACT-200; COMPACT-100; CHINA 321 ; PB 100; LSB; GWD; DELTA; 450,etc
Price: 1,500.00 USD
Availability: InStock

Brand Name:	EVERCROSS
Model Number:	COMPACT-200; COMPACT-100; CHINA 321 ; PB 100; LSB; GWD; DELTA; 450,etc
MOQ:	negotiation
Price:	1000USD ~ 2000USD Per ton
Delivery Time:	negotiation
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CNAS; COC; PVOC; SONCAP; CIDB;FORM E;FORM L; FORM M, etc

Product Name:

Steel Truss Bridge

Material:

Prefabricate Steel

Spans:

Short And Medium Spans

Bridge Deck:

Composite Deck

Surface Protection:

Painted

Standard:

AISI, ASTM, BS, DIN, GB, JIS

Surface Finish:

Painted Or Galvanized

Size:

Customized Size

Packaging Details:

According to detailed order

Highlight:

COC Prefabricated Truss Bridge

COC Composite Deck Truss Bridge

Galvanized Composite Deck Truss Bridge

Product Description

COC Certificate Prefabricated Truss Bridge Composite Deck Truss Bridge Galvanized

Product Specifications

Attribute	Value
Product Name	Steel Truss Bridge
Material	Prefabricate Steel
Spans	Short And Medium Spans
Bridge Deck	Composite Deck
Surface Protection	Painted
Standard	AISI, ASTM, BS, DIN, GB, JIS
Surface Finish	Painted or Galvanized
Size	Customized Size

Steel Truss Bridge Overview

Prefabricated Steel Truss Bridge with professional loading capacity. Steel truss bridges utilize a framework of steel trusses to support the bridge deck, featuring interconnected bars arranged in triangular patterns for excellent strength and stiffness.

Structural Components

Main Girder

The primary load-bearing structure composed of upper chord, lower chord and belly rod (diagonal bar and vertical bar). Nodes are categorized into large and small nodes with pitch referring to the distance between nodes.

Bracing System

Includes longitudinal and horizontal connections that transform the structure into a stable space system capable of withstanding lateral loads. The system manages transverse forces while supporting chord stability.

Bridge Deck System

Comprising longitudinal beams, transverse beams, and their connections. Load distribution flows from deck to longitudinal beams, then to transverse beams, and finally to the main truss structure.

Truss Bridge Types

Triangular Truss

Simple structure with fixed design, easy to install and manufacture.

Diagonal Bar Truss

Features multiple bar specifications with large internal force capacity in vertical rods.

K-Shaped Truss

Distributes shear force across two diagonal rods, ideal for small to medium spans with complex structure.

Double-Vented Bar Truss

Optimized for large spans with short compression rods that enhance buckling stability.

Key Features

Versatile span lengths from short to long distances
Off-site fabrication enables rapid construction
Triangular steel member configuration for optimal strength
Excellent seismic performance and durability
Energy efficient design with wide application range

Evercross Steel Bridges Specifications

Bridge Types	Bailey bridge, Modular bridge, Truss Bridge, Warren bridge, Arch bridge, Plate bridge, Beam bridge, Box girder bridge, Suspension bridge, Cable-stayed bridge, Floating bridge
Design Spans	10M to 300M single span
Carriage Way	Single lane, Double lanes, Multilane, Walkway
Loading Capacity	AASHTO HL93.HS15-44, HS20-44, HS25-44, BS5400 HA+20HB, HA+30HB, AS5100 Truck-T44, IRC 70R Class A/B, NATO STANAG MLC80/MLC110, Truck-60T, Trailer-80/100Ton
Steel Grade	EN10025 S355JR S355J0/EN10219 S460J0/EN10113 S460N/BS4360 Grade 55C, AS/NZS3678/3679/1163/Grade 350, ASTM A572/A572M GR50/GR65, GB1591 GB355B/C/D/460C
Certificates	ISO9001, ISO14001, ISO45001, EN1090, CIDB, COC, PVOC, SONCAP
