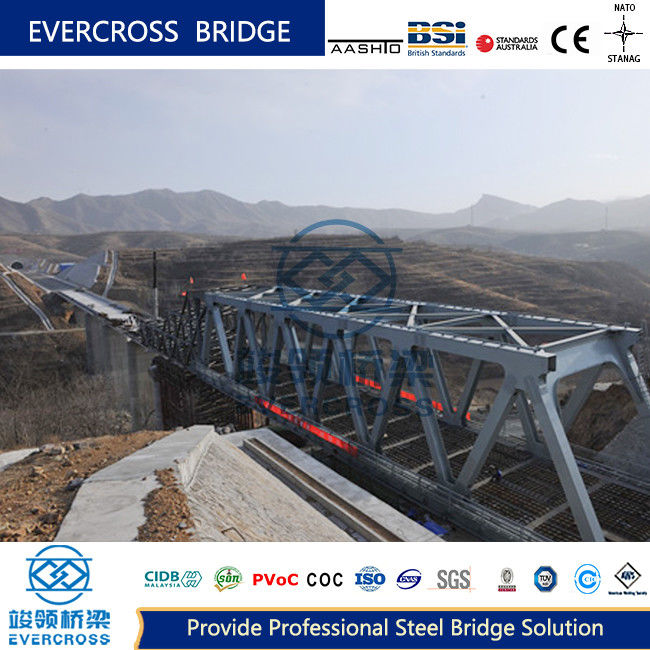

Customization Rigid Beam Truss Bridge Easy Assembly High Durability

Name: Customization Rigid Beam Truss Bridge Easy Assembly High Durability
Brand: EVERCROSS BRIDGE TECHNOLOGY (SHANGHAI) CO.,LTD.
SKU: COMPACT-200; COMPACT-100; CHINA 321 ; PB 100; LSB; GWD; DELTA; 450,etc
Price: 1,500.00 USD
Availability: InStock

Brand Name:	EVERCROSS
Model Number:	COMPACT-200; COMPACT-100; CHINA 321 ; PB 100; LSB; GWD; DELTA; 450,etc
MOQ:	negotiation
Price:	1000USD ~ 2000USD Per ton
Delivery Time:	negotiation
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CNAS; COC; PVOC; SONCAP; CIDB;FORM E;FORM L; FORM M, etc

Product Name:

Steel Truss Bridge

Material:

Prefabricate Steel

Spans:

Short And Medium Spans

Bridge Deck:

Composite Deck

Surface Protection:

Painted

Standard:

AISI, ASTM, BS, DIN, GB, JIS

Surface Finish:

Painted Or Galvanized

Size:

Customized Size

Packaging Details:

According to detailed order

Highlight:

Rigid beam truss bridge

beam truss bridge Easy Assembly

steel beam bridge Easy Assembly

Product Description

Steel Truss Bridge - Customizable Rigid Beam Structure

Key Specifications

Product Name	Steel Truss Bridge
Material	Prefabricated Steel
Spans	Short and Medium Spans
Bridge Deck	Composite Deck
Surface Protection	Painted or Galvanized
Standards	AISI, ASTM, BS, DIN, GB, JIS
Size	Customized Sizes Available

Structural Overview

The steel truss bridge is an integrated structural system combining beam and arch elements. Its rigid connection between beam and column provides exceptional load distribution and structural stability.

Primary Structural Components

Main Girder: The primary load-bearing element composed of upper chord, lower chord, and belly rods (diagonal and vertical bars).

Bracing System: Includes longitudinal and horizontal connections that transform the structure into a stable space frame capable of withstanding lateral loads.

Bridge Deck System: Transfers loads from vehicles/pedestrians through longitudinal beams to the main truss structure.

Truss Configuration Types

Triangular Truss: Simple design with fixed geometry, easy to manufacture and install.

Diagonal Bar Truss: Features multiple bar specifications and large node connections.

K-Shaped Truss: Shear forces distributed through two diagonal rods, ideal for medium spans.

Double-Vented Bar Truss: Optimized for large spans with short compression rods for enhanced stability.

Technical Advantages

High strength-to-weight ratio for efficient load distribution
Exceptional durability against corrosion and weathering
Energy efficient construction process
Excellent seismic performance
Customizable designs for various applications
Rapid construction compared to conventional bridges

Evercross Steel Bridge Specifications

Bridge Types	Bailey bridge, Modular bridge, Truss Bridge, Warren bridge, Arch bridge, Plate bridge, Beam bridge, Box girder bridge, Suspension bridge, Cable-stayed bridge, Floating bridge
Design Spans	10M to 300M single span
Carriage Way	Single lane, Double lanes, Multilane, Walkway
Loading Capacity	AASHTO HL93, HS15-44 to HS25-44, BS5400 HA+20HB to HA+30HB, AS5100 Truck-T44, IRC 70R Class A/B, NATO STANAG MLC80/MLC110
Steel Grade	EN10025 S355JR to S460J0, ASTM A572 GR50/GR65, GB1591 GB355B/C/D/460C
Certifications	ISO9001, ISO14001, ISO45001, EN1090, CIDB, COC, PVOC, SONCAP
