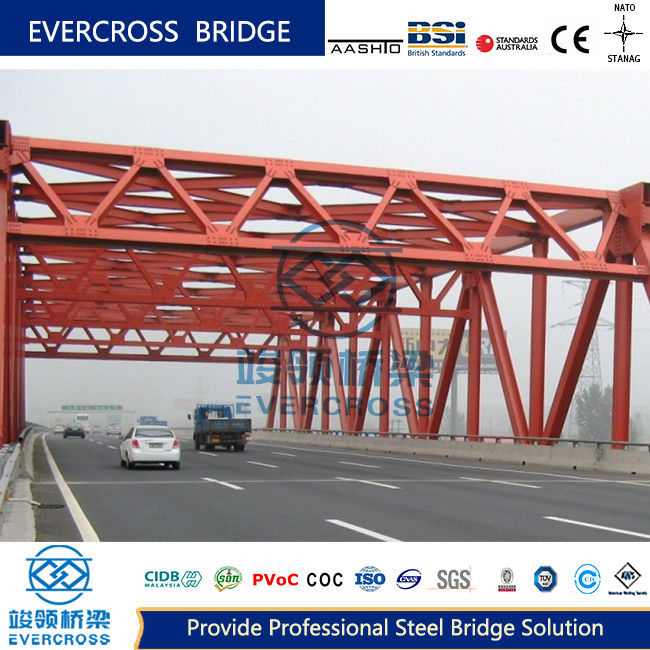

PVOC Certificate Steel Rigid Frame Bridge OEM Professional Big Loading Capacity

Brand Name:	EVERCROSS
Model Number:	COMPACT-200; COMPACT-100; CHINA 321 ; PB 100; LSB; GWD; DELTA; 450,etc
MOQ:	negotiation
Price:	1000USD ~ 2000USD Per ton
Delivery Time:	negotiation
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CNAS; COC; PVOC; SONCAP; CIDB;FORM E;FORM L; FORM M, etc

Product Name:

Steel Truss Bridge

Material:

Prefabricate Steel

Spans:

Short And Medium Spans

Bridge Deck:

Composite Deck

Surface Protection:

Painted

Surface Finish:

Painted Or Galvanized

Size:

Customized Size

Packaging Details:

According to detailed order

Highlight:

PVOC Steel Rigid Frame Bridge

OEM Steel Rigid Frame Bridge

Product Description

Steel Truss Bridge with PVOC Certification

Product Specifications

Attribute	Value
Product Name	Steel Truss Bridge
Material	Prefabricate Steel
Spans	Short And Medium Spans
Bridge Deck	Composite Deck
Surface Protection	Painted
Surface Finish	Painted or Galvanized
Size	Customized Size

Structural Overview

The steel truss bridge is an integrated structural system combining beam and arch elements. Its rigid connection between beam and column creates a compression-bending structure that efficiently distributes loads.

Structural Components

Main Girder

The primary load-bearing element composed of upper chord, lower chord, and belly rods (diagonal and vertical bars). Nodes are strategically placed to optimize load distribution.

Bracing System

Includes longitudinal and horizontal connections that stabilize the structure against lateral loads. The system enhances torsional stiffness and ensures even force distribution across components.

Bridge Deck System

Comprising longitudinal beams and cross beams that efficiently transfer vehicle/pedestrian loads to the main truss structure.

Key Advantages

Large span capability
Rapid construction timeline
Energy efficient manufacturing
Architecturally appealing design
Excellent seismic performance
Fully customizable configurations

Truss Bridge Types

Triangular Truss

Simple structure with fixed design parameters, offering easy installation and manufacturing.

Diagonal Bar Truss

Features multiple bar specifications with large internal forces at vertical rods and nodes.

K-Shaped Truss

Shear forces distributed across two diagonal rods, ideal for mounting/dismounting bridges with medium spans.

Double-Vented Bar Truss

Optimized for large spans with short compression rods that enhance buckling stability and joint arrangement.

Technical Specifications

Parameter	Specification
Design Spans	10M to 300M Single span
Carriage Way	Single lane, Double lanes, Multilane, Walkway
Loading Capacity	AASHTO HL93, HS15-44 to HS25-44, NATO STANAG MLC80/110, Truck-60T, Trailer-80/100Ton
Steel Grade	EN10025 S355JR to S460N, ASTM A572 GR50/65, GB1591 GB355B/C/D/460C
Certifications	ISO9001, ISO14001, ISO45001, EN1090, CIDB, COC, PVOC, SONCAP
