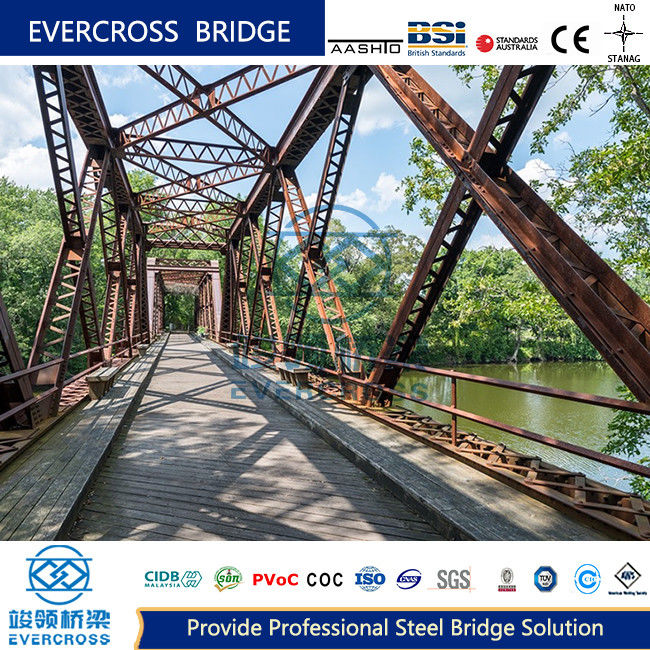

Permanent Steel Girder Railway Bridge Custom Single Lane For Ferry

Name: Permanent Steel Girder Railway Bridge Custom Single Lane For Ferry
Brand: EVERCROSS BRIDGE TECHNOLOGY (SHANGHAI) CO.,LTD.
SKU: COMPACT-200; COMPACT-100; CHINA 321 ; PB 100; LSB; GWD; DELTA; 450,etc
Price: 1,500.00 USD
Availability: InStock

Brand Name:	EVERCROSS
Model Number:	COMPACT-200; COMPACT-100; CHINA 321 ; PB 100; LSB; GWD; DELTA; 450,etc
MOQ:	negotiation
Price:	1000USD ~ 2000USD Per ton
Delivery Time:	negotiation
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CNAS; COC; PVOC; SONCAP; CIDB;FORM E;FORM L; FORM M, etc

Product Name:

Steel Truss Bridge

Bridge Deck:

Composite Deck

Type:

Permanent Bridge

Spans:

Short And Medium Spans

Material:

Prefabricate Steel

Surface Protection:

Painted

Standard:

AISI, ASTM, BS, DIN, GB, JIS

Surface Finish:

Painted Or Galvanized

Size:

Customized Size

Packaging Details:

According to detailed order

Highlight:

Permanent Steel Girder Railway Bridge

Steel Girder Railway Bridge Custom

Product Description

Permanent Steel Girder Railway Bridge Custom Single Lane For Ferry

Attribute	Value
Product Name	Steel Truss Bridge
Bridge Deck	Composite Deck
Type	Permanent Bridge
Spans	Short And Medium Spans
Material	Prefabricate Steel
Surface Protection	Painted
Standard	AISI, ASTM, BS, DIN, GB, JIS
Surface Finish	Painted or Galvanized
Size	Customized Size

The steel truss bridge is a structural system between beams and arches, combining a bent upper beam structure and pressure-bearing lower column into an integrated unit. This rigid connection creates a compression-bending and thrust structure that efficiently distributes loads.

Structural Components

Main Girder

The primary load-bearing structure composed of upper chord, lower chord, and belly rod (including diagonal and vertical bars). Nodes are categorized as large or small, with pitch referring to the distance between nodes.

Bracing

Includes longitudinal and horizontal connections that stabilize the structure against lateral loads. The longitudinal system handles transverse forces while the transverse connection enhances torsional stiffness and load distribution.

Bridge Deck System

Comprising longitudinal beams and connections that transfer loads from the deck to the main truss through a systematic force transmission path.

Bridge Floor

The walking surface for vehicles and pedestrians, designed similarly to steel beam bridges for optimal performance.

Truss Bridge Categories

Triangular Truss

Simple structure with fixed design, easy to install and manufacture. Offers excellent structural efficiency for various span requirements.

Diagonal Bar Truss

Features multiple bar specifications with large internal forces in vertical rods. All connections utilize large nodes for enhanced stability.

K-Shaped Truss

Distributes shear forces through two diagonal rods, creating shorter sections ideal for mounting and dismounting bridges. Particularly suitable for small to medium spans.

Double-Vented Bar Truss

Optimized for large spans with short compression rods that improve buckling stability. The compact joint design simplifies construction while maintaining strength.

Key Advantages

Large span capability
Rapid construction timeline
Energy efficient design
Aesthetic architectural appearance
Superior seismic performance
Wide application range
Fully customizable configurations

Typical Applications

Ideal for urban bridges, highway viaducts, and overpasses with small to medium spans. Suitable for reinforced concrete structures, prestressed concrete designs, and various rigid frame configurations including T-shaped and continuous rigid frames.

Evercross Steel Bridges Specifications

Category	Specifications
Bridge Types	Bailey bridge (Compact-200, Compact-100, LSB, PB100, China-321, BSB), Modular bridge (GWD, Delta, 450-type), Truss Bridge, Warren bridge, Arch bridge, Plate bridge, Beam bridge, Box girder bridge, Suspension bridge, Cable-stayed bridge, Floating bridge
Design Spans	10M TO 300M Single span
Carriage Way	SINGLE LANE, DOUBLE LANES, MULTILANE, WALKWAY
Loading Capacity	AASHTO HL93.HS15-44, HS20-44, HS25-44, BS5400 HA+20HB, HA+30HB, AS5100 Truck-T44, IRC 70R Class A/B, NATO STANAG MLC80/MLC110, Truck-60T, Trailer-80/100Ton
Steel Grade	EN10025 S355JR S355J0/EN10219 S460J0/EN10113 S460N/BS4360 Grade 55C, AS/NZS3678/3679/1163/Grade 350, ASTM A572/A572M GR50/GR65, GB1591 GB355B/C/D/460C
Certificates	ISO9001, ISO14001, ISO45001, EN1090, CIDB, COC, PVOC, SONCAP
