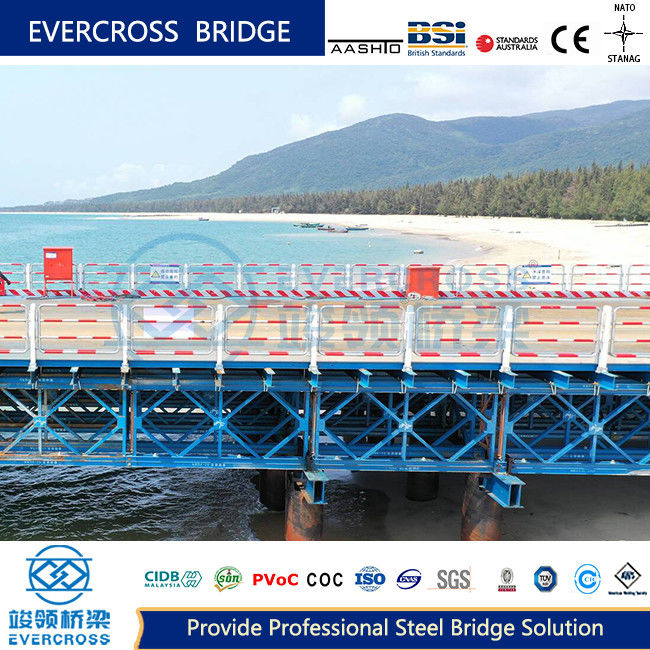

Introduction of Bailey Type Trestle Bridge

The Bailey trestle bridge is composed of standardized, prefabricated steel panels and components that can be easily assembled on-site.

These modular elements include chords, web members, transoms, and bracing, which can be quickly connected to form the bridge structure.

Applications of Bailey Type Trestle Bridge

Dam and Hydraulic Structure Construction

In the case of a hydro - electric power plant construction, the trestle bridge allows for the transportation of heavy turbine components and generators to the powerhouse site. It also provides access for workers to install penstocks and other water - conveyance systems.

Industrial Construction Sites

In industrial construction, such as building a large chemical plant or a steel mill, a trestle bridge can be used to connect different production units. It allows for the transportation of raw materials between storage areas and processing plants. For example, in a steel mill, it can provide a way to transport iron ore from the stockyard to the blast furnace area.

Temporary Support for Heavy Equipment Installation

When installing heavy industrial equipment such as large - scale reactors, boilers, or industrial furnaces, the trestle bridge can serve as a support structure for lifting and positioning the equipment. It can bear the weight of the lifting cranes and the equipment during the installation process.

Features of Bailey Type Trestle Bridge

Trestle bridges typically have an open - frame structure. They are composed of vertical supports (usually piles) and horizontal members (such as beams and trusses). This open - frame design allows for good ventilation and reduces wind resistance compared to some more enclosed bridge structures. For example, in a steel - framed trestle bridge, the spaces between the structural members allow air to flow freely through the bridge, which is beneficial in areas with strong winds or in industrial settings where ventilation is important.

Trestle bridges are highly versatile and can be used in a wide range of applications. They are suitable for both temporary and permanent structures. In construction projects, they serve as temporary access bridges, allowing the transportation of construction materials and equipment. For example, during the construction of a large - scale bridge over a river, a trestle bridge can be built alongside to provide access for cranes and trucks. They can also be used as permanent structures in industrial areas, such as in ports for loading and unloading operations or in mines for transporting ore.
