S355JR S460J0 Steel Deck Bridges Temporary Bailey Bridge Construction

Name: S355JR S460J0 Steel Deck Bridges Temporary Bailey Bridge Construction
Brand: EVERCROSS BRIDGE TECHNOLOGY (SHANGHAI) CO.,LTD.
SKU: COMPACT-200; COMPACT-100; CHINA 321 ; PB 100; LSB; GWD; DELTA; 450,etc
Price: 1,500.00 USD
Availability: InStock

Brand Name:	EVERCROSS
Model Number:	COMPACT-200; COMPACT-100; CHINA 321 ; PB 100; LSB; GWD; DELTA; 450,etc
MOQ:	negotiation
Price:	1000USD ~ 2000USD Per ton
Delivery Time:	negotiation
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CNAS; COC; PVOC; SONCAP; CIDB;FORM E;FORM L; FORM M, etc

Product Name:

Bailey Bridge

Steel:

S355JR, S355J0, S460J0, ASTM Gr65, Gr50, Etc

Type:

CB100, CB200

Deck:

Steel Deck

Standard:

AASHTO, BS5400, AS5100, IRC, Etc

Annual Output:

100,000 Tons

Packaging Details:

According to detailed order

Highlight:

S460J0 Steel Deck Bridges

S355JR Temporary Bailey Bridge

S460J0 Temporary Bailey Bridge

Product Description

S355JR S460J0 Steel Deck Bridges Temporary Bailey Bridge Construction

Product Specifications

Attribute	Value
Product Name	Bailey Bridge
Steel	S355JR, S355J0, S460J0, ASTM Gr65, Gr50, etc
Type	CB100, CB200
Deck	Steel Deck
Standard	AASHTO, BS5400, AS5100, IRC, etc
Annual output	100,000 Tons

Product Description

Bailey Bridge Good Corrosion Resistance Modular Design Stainless Steel Bridge

Bailey Bridges Description:

Bailey bridge is a modular, portable bridge designed for quick assembly and disassembly, ideal for temporary or emergency use. Developed by Sir Donald Bailey during World War II, it consists of prefabricated panels that can be connected with minimal tools and manpower.

Introduction of Bailey Bridges

Bailey Bridge is a standard bridge equipment, adopted extensively and the most popular in the world.

Compact-200 Bailey bridge Truss Allowable Internal Force Table (Half-bridge)

Allowable InternalConfigurationForce	Allowable Bending Moment[M](kN·m)	Allowable Shears force[Q](kN)	High-shears Union Allowable Shears Force [Q]H(kN)
SS	SS	1127	257
SSR	2254	257	348
DS	DS	2525	514
DSR1	3381	514	696
DSR2	5050	514	696
TS	TS	3800	771
TSR2	5635	771	1044
TSR3	7600	771	1044
QS	QS	5050	1028
QSR3	7889	1028	1392
QSR4	10100	1028	1392

Applications of Bailey Bridges

Military Use: Frequently used in military operations for quick deployment of crossing points.
Disaster Relief: Ideal for emergency situations where infrastructure has been damaged.
Temporary Crossings: Often employed for temporary road or rail crossings during construction projects.

Features of Bailey Bridge

Load Capacity: Designed to support heavy loads, including military vehicles, depending on the specific configuration.
Lightweight Design: Made from high-strength steel, which reduces the overall weight while maintaining load capacity.
Versatile Span Lengths: Can be configured to span different lengths, typically from 10 to 60 meters (33 to 200 feet).
Durability: Resistant to corrosion and weathering, especially when properly maintained or treated.

Bailey Bridges Competitive Advantage

Durability: Weather Resistant: Designed to withstand harsh environmental conditions, with proper maintenance extending service life.
Versatility: Multiple Applications: Suitable for a range of uses, from temporary field crossings to permanent installations in various environments.
Adaptability to Terrain: Versatile Installation: Can be deployed in diverse terrains, including remote or challenging locations where other solutions may not be practical.
Ease of Disassembly: Relocatable: Can be easily taken apart and moved to a different location, making them ideal for temporary needs.

Bailey Bridges Specifications

Single lane:	Standard roadway: 3.15m / 4.2m	Single lane: 30ft-200ft
Double lane:	Standard roadway:7.35m	Double lane:30ft-180ft
Load:	design according to different requirements
Deck:	steel deck
Bridge type:	CB100, CB200

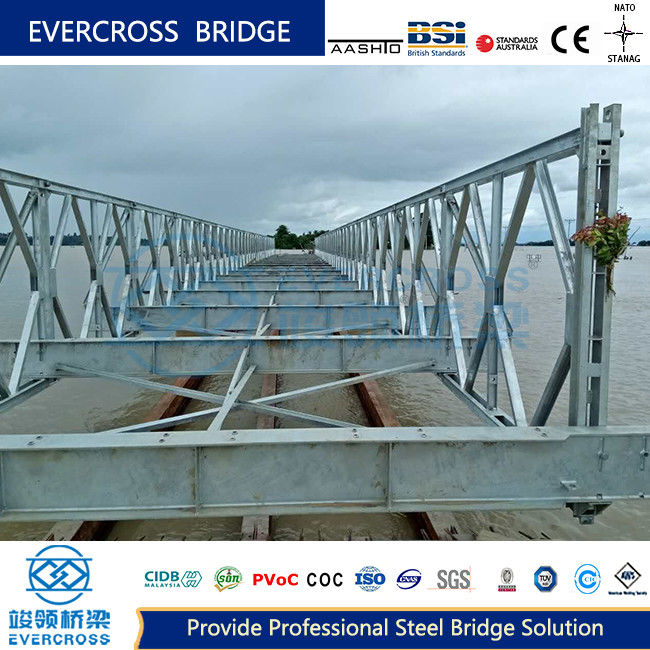

S355JR S460J0 Steel Deck Bridges Temporary Bailey Bridge Construction 2

Bailey Bridges Advantage

Ease of Disassembly: Can be easily dismantled and relocated, making them ideal for temporary uses or projects that require flexibility.
Adaptability: Can be used in diverse environments, including difficult terrains and locations with limited access.
Durability: Resistant to environmental factors, with proper maintenance extending its lifespan.
Minimal Equipment Needed: Requires only basic tools for assembly, reducing the need for heavy machinery and specialized labor.

Evercross Steel Bridges Overview

EVERCROSS STEEL BRIDGE SPECIFICATION
EVERCROSSSTEEL BRIDGE	Bailey bridge (Compact-200, Compact-100, LSB, PB100, China-321, BSB)Modular bridge (GWD, Delta, 450-type, etc.),Truss Bridge, Warren bridge,Arch bridge, Plate bridge, Beam bridge, Box girder bridge,Suspension bridge, Cable-stayed bridge,Floating bridge, etc.
DESIGN SPANS	10M TO 300M Single span
CARRIAGE WAY	SINGLE LANE, DOUBLE LANES, MULTILANE, WALKWAY, ETC
LOADING CAPACITY	AASHTO HL93.HS15-44, HS20-44, HS25-44,BS5400 HA+20HB, HA+30HB,AS5100 Truck-T44,IRC 70R Class A/B,NATO STANAG MLC80/MLC110.Truck-60T, Trailer-80/100Ton, etc.
STEEL GRADE	EN10025 S355JR S355J0/EN10219 S460J0/EN10113 S460N/BS4360 Grade 55CAS/NZS3678/3679/1163/Grade 350,ASTM A572/A572M GR50/GR65GB1591 GB355B/C/D/460C, etc.
CERTIFICATES	ISO9001, ISO14001, ISO45001, EN1090, CIDB, COC, PVOC, SONCAP, etc.
WELDING	AWS D1.1/AWS D1.5AS/NZS 1554 or equivalent
BOLTS	ISO898, AS/NZS1252, BS3692 or equivalent
GALVANIZATION CODE	ISO1461AS/NZS 4680ASTM-A123,BS1706or equivalent
