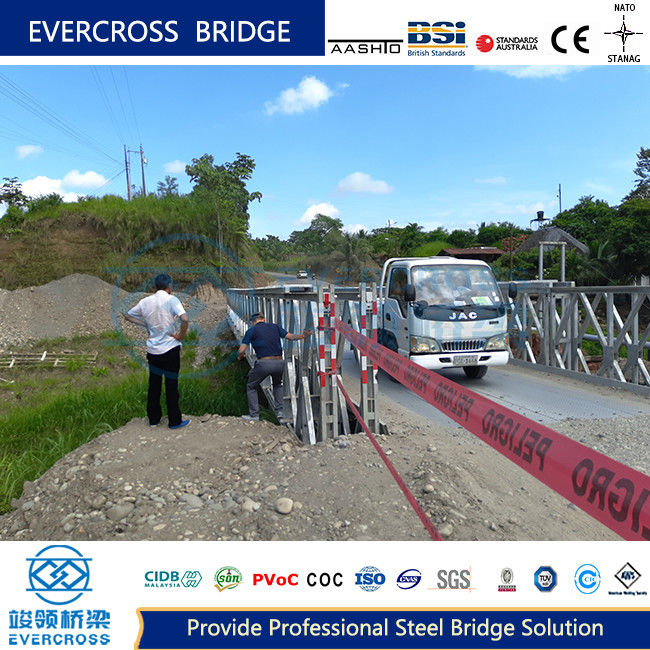

Compact 200 Bailey Bridge Military Bailey Bridge Double Rows Single Layer

Name: Compact 200 Bailey Bridge Military Bailey Bridge Double Rows Single Layer
Brand: EVERCROSS BRIDGE TECHNOLOGY (SHANGHAI) CO.,LTD.
SKU: COMPACT-200; COMPACT-100; CHINA 321 ; PB 100; LSB; GWD; DELTA; 450,etc
Price: 1,500.00 USD
Availability: InStock

Brand Name:	EVERCROSS
Model Number:	COMPACT-200; COMPACT-100; CHINA 321 ; PB 100; LSB; GWD; DELTA; 450,etc
MOQ:	negotiation
Price:	1000USD ~ 2000USD Per ton
Delivery Time:	negotiation
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CNAS; COC; PVOC; SONCAP; CIDB;FORM E;FORM L; FORM M, etc

Product Name:

Bailey Bridge

Steel:

S355JR, S355J0, S460J0, ASTM Gr65, Gr50, Etc

Type:

CB100, CB200

Deck:

Steel Deck

Standard:

AASHTO, BS5400, AS5100, IRC, Etc

Annual Output:

100,000 Tons

Packaging Details:

According to detailed order

Highlight:

Compact 200 Bailey Bridge

Military Bailey Bridge Double Rows

Single Layer Compact Bailey Bridge

Product Description

Compact 200 Bailey Bridge Military Bailey Bridge Double Rows Single Layer

Product Attributes

Product Name	Bailey Bridge
Steel	S355JR, S355J0, S460J0, ASTM Gr65, Gr50, etc
Type	CB100, CB200
Deck	Steel Deck
Standard	AASHTO, BS5400, AS5100, IRC, etc
Annual output	100,000 Tons

Steel Bridge Structure Double Rows Single Layer Reinforced DSR

The Bailey Bridge is a fabricated steel bridge characterized by lightweight components, easy disassembly, and strong adaptability. It can be quickly assembled using simple tools and manpower. Originally developed for military use as the Compact-100 Bailey Bridge, it is now widely employed in rescue operations, disaster relief, traffic engineering, municipal water projects, and bridge reinforcement.

During the 2008 Wenchuan earthquake, Bailey Bridges played a crucial role in transporting relief materials, evacuating the wounded, and assisting mass evacuations.

Bailey Bridge Applications

Mining Operations: Facilitates access and material transport in remote mining sites
Rural Accessibility: Provides practical solutions in isolated areas where traditional construction is impractical
Traffic Maintenance: Keeps traffic flowing during permanent bridge construction or repairs
Pedestrian Access: Adaptable for temporary crossings in urban areas or parks

Competitive Advantages

High Load Capacity: Supports heavy military and construction vehicles in demanding conditions
Minimal Equipment: Requires only basic tools for assembly, reducing need for heavy machinery
Versatility: Suitable for temporary field crossings to permanent installations

Technical Specifications

Configuration	Roadway Width	Span Length
Single lane	3.15m / 4.2m	30ft-200ft
Double lane	7.35m	30ft-180ft
Load: Designed according to specific requirements \| Deck: Steel deck \| Bridge type: CB100, CB200

Key Benefits

Cost-Effective: More economical than traditional bridges, especially in emergencies
Durability: Resistant to environmental factors with proper maintenance
Adaptability: Effective in diverse terrains and limited access locations

Evercross Steel Bridges Overview

Bridge Types	Bailey bridge (Compact-200, Compact-100, LSB, PB100, China-321, BSB) Modular bridge (GWD, Delta, 450-type, etc.) Truss Bridge, Warren bridge, Arch bridge, Plate bridge Beam bridge, Box girder bridge, Suspension bridge Cable-stayed bridge, Floating bridge
Design Spans	10M TO 300M Single span
Carriage Way	SINGLE LANE, DOUBLE LANES, MULTILANE, WALKWAY
Loading Capacity	AASHTO HL93.HS15-44, HS20-44, HS25-44 BS5400 HA+20HB, HA+30HB AS5100 Truck-T44 IRC 70R Class A/B NATO STANAG MLC80/MLC110 Truck-60T, Trailer-80/100Ton
Steel Grade	EN10025 S355JR S355J0/EN10219 S460J0/EN10113 S460N/BS4360 Grade 55C AS/NZS3678/3679/1163/Grade 350 ASTM A572/A572M GR50/GR65 GB1591 GB355B/C/D/460C
Certifications	ISO9001, ISO14001, ISO45001, EN1090, CIDB, COC, PVOC, SONCAP

Design Features

Lightweight Construction: High-strength steel reduces weight while maintaining capacity
Adjustable Spans: Configurable from 10 to 60 meters (33 to 200 feet)
Heavy-Duty Performance: Engineered for military and construction vehicle loads
Weather Resistance: Corrosion-resistant with proper treatment and maintenance

Versatile Bridge Solutions

The Bailey Bridge system can be configured as temporary emergency bridges, fixed installations, or even suspension bridges of varying spans. With minimal components, lightweight construction, and low cost, it requires no special tools or heavy equipment for assembly. The bridge elements are portable yet strong enough to carry significant loads, making it an outstanding example of practical military engineering adapted for civilian applications.
