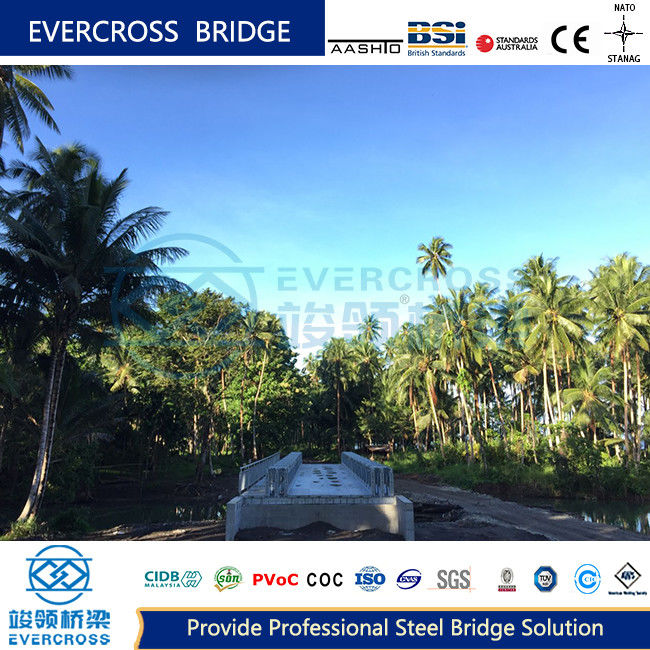

CHINA 321 Temporary Modern Steel Bailey Bridge Easy And Fast Erection

Name: CHINA 321 Temporary Modern Steel Bailey Bridge Easy And Fast Erection
Brand: EVERCROSS BRIDGE TECHNOLOGY (SHANGHAI) CO.,LTD.
SKU: COMPACT-200; COMPACT-100; CHINA 321 ; PB 100; LSB; GWD; DELTA; 450,etc
Price: 1,500.00 USD
Availability: InStock

Brand Name:	EVERCROSS
Model Number:	COMPACT-200; COMPACT-100; CHINA 321 ; PB 100; LSB; GWD; DELTA; 450,etc
MOQ:	negotiation
Price:	1000USD ~ 2000USD Per ton
Delivery Time:	negotiation
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CNAS; COC; PVOC; SONCAP; CIDB;FORM E;FORM L; FORM M, etc

Product Name:

Bailey Bridge

Steel:

S355JR, S355J0, S460J0, ASTM Gr65, Gr50, Etc

Type:

CB100, CB200

Deck:

Steel Deck

Standard:

AASHTO, BS5400, AS5100, IRC, Etc

Annual Output:

100,000 Tons

Packaging Details:

According to detailed order

Highlight:

Fast Erection Temporary bailey bridge for sale

Fast Erection Steel Bailey Bridge

CHINA 321 temporary bailey bridge

Product Description

CHINA 321 Temporary Modern Steel Bailey Bridge

Product Specifications

Attribute	Value
Product Name	Bailey Bridge
Steel	S355JR, S355J0, S460J0, ASTM Gr65, Gr50, etc
Type	CB100, CB200
Deck	Steel Deck
Standard	AASHTO, BS5400, AS5100, IRC, etc
Annual output	100,000 Tons

Product Overview

The Bailey Bridge is a fabricated steel bridge characterized by lightweight components, easy disassembly, and strong adaptability. It can be quickly erected with simple tools and manpower.

Applications

The compact 100 Bailey bridge (HZCB100) is a steel truss bridge suitable for temporary or semi-permanent use. Its modular design offers:

Component interchangeability
Reusability
Simple structure
Easy transportation
Rapid erection

Widely used in construction trestle bridges, suspension bridges, platforms, formwork support, gantry cranes, and bridge erecting machines.

Technical Specifications

HD100 Bailey Bridge Geometric Properties

Geometric property	W(cm3)	J(cm4)
SS	3578.5	250497.2
SSR	7699.1	577434.4
DS	7157.1	500994.4
TS	10735.6	751491.6

Note: The value in the table is for half of the bridge. Full bridge values should be multiplied by 2.

HD100 Bailey Bridge Truss Allowable Internal Forces

Bridge Type	Unreinforced Bridge	Reinforced Bridge
Allowable Bending Moment [M] (kN·m)	788.2 - 4653.2	1687.5 - 9618.8
Allowable Shear Force [Q] (kN)	245.2 - 698.9	245.2 - 698.9

Note: The value in the table is for half of the bridge. Full bridge values should be multiplied by 2.

Key Advantages

Heavy loading capacity
Excellent stability
Long fatigue life
Lightweight construction
Cost-effective
Fast and easy erection

Standard Specifications

Single Lane	Standard roadway: 3.15m / 4.2m \| Span: 30ft-200ft
Double Lane	Standard roadway: 7.35m \| Span: 30ft-180ft
Load	Designed according to different requirements
Deck	Steel deck
Bridge Type	CB100, CB200

EVERCROSS Steel Bridge Specifications

Bridge Types	Bailey bridge (Compact-200, Compact-100, LSB, PB100, China-321, BSB), Modular bridge (GWD, Delta, 450-type), Truss Bridge, Warren bridge, Arch bridge, Plate bridge, Beam bridge, Box girder bridge, Suspension bridge, Cable-stayed bridge, Floating bridge
Design Spans	10M TO 300M Single span
Carriage Way	SINGLE LANE, DOUBLE LANES, MULTILANE, WALKWAY
Loading Capacity	AASHTO HL93.HS15-44, HS20-44, HS25-44, BS5400 HA+20HB, HA+30HB, AS5100 Truck-T44, IRC 70R Class A/B, NATO STANAG MLC80/MLC110, Truck-60T, Trailer-80/100Ton
Steel Grade	EN10025 S355JR S355J0/EN10219 S460J0/EN10113 S460N/BS4360 Grade 55CAS/NZS3678/3679/1163/Grade 350, ASTM A572/A572M GR50/GR65GB1591 GB355B/C/D/460C

Key Features

Lightweight Design: Made from high-strength steel, reducing weight while maintaining load capacity
Versatile Span Lengths: Configurable from 10 to 60 meters (33 to 200 feet)
Load Capacity: Supports heavy loads including military vehicles
Durability: Resistant to corrosion and weathering with proper maintenance
Simple Construction: Requires no special tools or heavy equipment
