Heavy Loading Bailey Truss Bridge 100 Type Load 40 Tons Great Stability

Name: Heavy Loading Bailey Truss Bridge 100 Type Load 40 Tons Great Stability
Brand: EVERCROSS BRIDGE TECHNOLOGY (SHANGHAI) CO.,LTD.
SKU: COMPACT-200; COMPACT-100; CHINA 321 ; PB 100; LSB; GWD; DELTA; 450,etc
Price: 1,500.00 USD
Availability: InStock

Brand Name:	EVERCROSS
Model Number:	COMPACT-200; COMPACT-100; CHINA 321 ; PB 100; LSB; GWD; DELTA; 450,etc
MOQ:	negotiation
Price:	1000USD ~ 2000USD Per ton
Delivery Time:	negotiation
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CNAS; COC; PVOC; SONCAP; CIDB;FORM E;FORM L; FORM M, etc

Product Name:

Bailey Bridge

Steel:

S355JR, S355J0, S460J0, ASTM Gr65, Gr50, Etc

Type:

CB100, CB200

Deck:

Steel Deck

Standard:

AASHTO, BS5400, AS5100, IRC, Etc

Annual Output:

100,000 Tons

Packaging Details:

According to detailed order

Highlight:

Heavy Loading bailey truss bridge

Great Stability bailey truss bridge

Heavy Loading bailey bridge construction

Product Description

Heavy Loading Bailey Truss Bridge 100 Type Load 40 Tons Great Stability

Product Specifications

Product Name	Bailey Bridge
Steel	S355JR, S355J0, S460J0, ASTM Gr65, Gr50, etc
Type	CB100, CB200
Deck	Steel Deck
Standard	AASHTO, BS5400, AS5100, IRC, etc
Annual output	100,000 Tons

Product Overview

The Heavy Loading 100-Type Bailey Steel Bridge with a load capacity of 40 tons is a fabricated steel bridge characterized by light components, convenient disassembly, and strong adaptability. It can be built quickly with simple tools and manpower.

Key Features

Heavy loading capacity
Great stability
Long fatigue life
Light weight
Low cost
Easy and fast erection

Technical Specifications

Single lane	Standard roadway: 3.15m / 4.2m	Single lane: 30ft-200ft
Double lane	Standard roadway: 7.35m	Double lane: 30ft-180ft
Load	Design according to different requirements
Deck	Steel deck
Bridge type	CB100, CB200

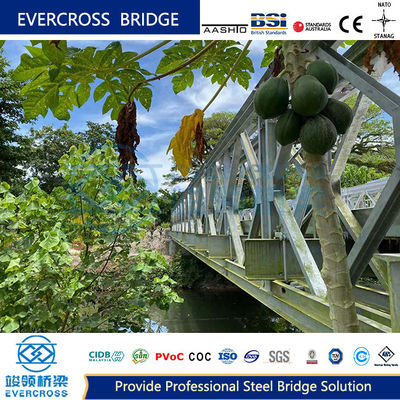

Heavy Loading Bailey Truss Bridge 100 Type Load 40 Tons Great Stability 2

Applications

The compact 100 Bailey bridge (HZCB100) is a steel truss bridge that can be used as a temporary bridge or semi-permanent bridge. Its modular design provides good interchangeability, reusability, simple structure, convenient transportation, and rapid erection period.

Applications include:

Construction trestle bridges
Suspension bridges
Construction platforms
Cast-in-place construction formwork support
Large tonnage gantry cranes
Bridge erecting machines
Beam bridges, arch bridges, rigid frame bridges
Cable-stayed bridges, suspension bridges
Passenger foot-bridges

Key Advantages

Load Capacity: Designed to support heavy loads, including military vehicles
Durability: Resistant to corrosion and weathering when properly maintained
Simple Assembly: Requires no special tools or heavy machinery
Adaptability: Suitable for various terrains and conditions

Evercross Steel Bridges Specifications

Bridge Types	Bailey bridge (Compact-200, Compact-100, LSB, PB100, China-321, BSB), Modular bridge (GWD, Delta, 450-type, etc.), Truss Bridge, Warren bridge, Arch bridge, Plate bridge, Beam bridge, Box girder bridge, Suspension bridge, Cable-stayed bridge, Floating bridge, etc.
Design Spans	10M TO 300M Single span
Carriage Way	SINGLE LANE, DOUBLE LANES, MULTILANE, WALKWAY, ETC
Loading Capacity	AASHTO HL93.HS15-44, HS20-44, HS25-44, BS5400 HA+20HB, HA+30HB, AS5100 Truck-T44, IRC 70R Class A/B, NATO STANAG MLC80/MLC110. Truck-60T, Trailer-80/100Ton, etc.
Steel Grade	EN10025 S355JR S355J0/EN10219 S460J0/EN10113 S460N/BS4360 Grade 55CAS/NZS3678/3679/1163/Grade 350, ASTM A572/A572M GR50/GR65GB1591 GB355B/C/D/460C, etc.
Certificates	ISO9001, ISO14001, ISO45001, EN1090, CIDB, COC, PVOC, SONCAP, etc.

Summary of Benefits

Heavy loading capacity
Great stability and long fatigue life
Simple structure
Convenient transport
Speedy erection
Easy disassembling
