CB100 CB200 Type Compact Bailey Bridge Steel Highway Bridge With Steel Deck

Name: CB100 CB200 Type Compact Bailey Bridge Steel Highway Bridge With Steel Deck
Brand: EVERCROSS BRIDGE TECHNOLOGY (SHANGHAI) CO.,LTD.
SKU: COMPACT-200; COMPACT-100; CHINA 321 ; PB 100; LSB; GWD; DELTA; 450,etc
Price: 1,500.00 USD
Availability: InStock

Brand Name:	EVERCROSS
Model Number:	COMPACT-200; COMPACT-100; CHINA 321 ; PB 100; LSB; GWD; DELTA; 450,etc
MOQ:	negotiation
Price:	1000USD ~ 2000USD Per ton
Delivery Time:	negotiation
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CNAS; COC; PVOC; SONCAP; CIDB;FORM E;FORM L; FORM M, etc

Product Name:

Bailey Bridge

Steel:

S355JR, S355J0, S460J0, ASTM Gr65, Gr50, Etc

Type:

CB100, CB200

Deck:

Steel Deck

Standard:

AASHTO, BS5400, AS5100, IRC, Etc

Annual Output:

100,000 Tons

Packaging Details:

According to detailed order

Highlight:

CB200 Type Compact Bailey Bridge

CB100 Type Compact Bailey Bridge

CB200 Type Steel Highway Bridge

Product Description

CB100 CB200 Type Compact Bailey Bridge Steel Highway Bridge With Steel Deck

Product Specifications

Attribute	Value
Product Name	Bailey Bridge
Steel	S355JR, S355J0, S460J0, ASTM Gr65, Gr50, etc
Type	CB100, CB200
Deck	Steel Deck
Standard	AASHTO, BS5400, AS5100, IRC, etc
Annual output	100,000 Tons

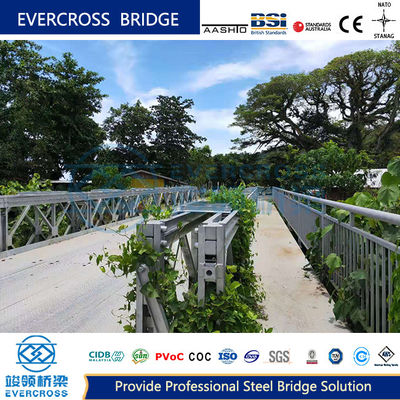

51m Single-Span Compact-100 Assembled Highway Steel Bridge

Bailey bridge is a fabricated steel bridge, characterized by light components, convenient disassembly and strong adaptability, and can be built quickly with simple tools and manpower.

Originally developed for military use, Bailey Bridges are now widely used in rescue and disaster relief, traffic engineering, municipal water conservancy engineering, and dangerous bridge reinforcement. For example, during the 2008 Wenchuan earthquake, Bailey Bridges played a key role in transporting relief materials and evacuating people.

Technical Specifications

Single lane:	Standard roadway: 3.15m / 4.2m	Single lane: 30ft-200ft
Double lane:	Standard roadway:7.35m	Double lane:30ft-180ft
Load:	Design according to different requirements
Deck:	Steel deck
Bridge type:	CB100, CB200

HD100 Bailey Bridge Geometric Property Table

Geometric property	W(cm3)	J(cm4)
Mechanism structure SS	3578.5	250497.2
SSR	7699.1	577434.4
DS	7157.1	500994.4
DSR	15398.3	1154868.8
TS	10735.6	751491.6
TSR	23097.4	1732303.2
DD	14817.9	2148588.8
DDR	30641.7	4596255.2
TD	22226.8	3222883.2
TDS	45962.6	6894390

Note: The value in the table is the value of half of the bridge, and the full bridge should be multiplied by 2.

Applications

Military Operations: Temporary crossings for armed forces and logistics support in combat zones
Disaster Relief: Emergency access in areas affected by natural disasters and humanitarian aid routes
Civil Engineering Projects: Temporary bridges during construction of permanent structures

Competitive Advantages

Rapid Deployment: Quick assembly ideal for emergencies and military operations
Portability: Modular design allows easy transport to remote locations
Cost-Effectiveness: Lower construction costs compared to traditional bridges
Flexibility: Various configurations for different spans and load requirements

Key Features

Modular construction from standardized components
Lightweight high-strength steel design
Heavy loading capacity with great stability
Simple structure with long fatigue life
Convenient transport and speedy erection
Easy disassembling for reuse

EVERCROSS Steel Bridge Specifications

Bridge Types:	Bailey bridge (Compact-200, Compact-100, LSB, PB100, China-321, BSB), Modular bridge (GWD, Delta, 450-type, etc.), Truss Bridge, Warren bridge, Arch bridge, Plate bridge, Beam bridge, Box girder bridge, Suspension bridge, Cable-stayed bridge, Floating bridge
Design Spans:	10M TO 300M Single span
Carriage Way:	SINGLE LANE, DOUBLE LANES, MULTILANE, WALKWAY
Loading Capacity:	AASHTO HL93.HS15-44, HS20-44, HS25-44, BS5400 HA+20HB, HA+30HB, AS5100 Truck-T44, IRC 70R Class A/B, NATO STANAG MLC80/MLC110, Truck-60T, Trailer-80/100Ton
Steel Grade:	EN10025 S355JR S355J0/EN10219 S460J0/EN10113 S460N/BS4360 Grade 55CAS/NZS3678/3679/1163/Grade 350, ASTM A572/A572M GR50/GR65GB1591 GB355B/C/D/460C
Certificates:	ISO9001, ISO14001, ISO45001, EN1090, CIDB, COC, PVOC, SONCAP

CB100 CB200 Type Compact Bailey Bridge Steel Highway Bridge With Steel Deck 3
