Modern Design Steel Structure Temporary Bailey Bridge For Construction CB100

Name: Modern Design Steel Structure Temporary Bailey Bridge For Construction CB100
Brand: EVERCROSS BRIDGE TECHNOLOGY (SHANGHAI) CO.,LTD.
SKU: COMPACT-200; COMPACT-100; CHINA 321 ; PB 100; LSB; GWD; DELTA; 450,etc
Price: 1,500.00 USD
Availability: InStock

Brand Name:	EVERCROSS
Model Number:	COMPACT-200; COMPACT-100; CHINA 321 ; PB 100; LSB; GWD; DELTA; 450,etc
MOQ:	negotiation
Price:	1000USD ~ 2000USD Per ton
Delivery Time:	negotiation
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CNAS; COC; PVOC; SONCAP; CIDB;FORM E;FORM L; FORM M, etc

Product Name:

Bailey Bridge

Steel:

S355JR, S355J0, S460J0, ASTM Gr65, Gr50, Etc

Type:

CB100, CB200

Deck:

Steel Deck

Standard:

AASHTO, BS5400, AS5100, IRC, Etc

Annual Output:

100,000 Tons

Packaging Details:

According to detailed order

Highlight:

Modern Design temporary bailey bridge

Modern Design Steel Structure Bridge

CB100 temporary bailey bridge

Product Description

Modern Design Steel Structure Temporary Bailey Bridge For Construction CB100

Product Specifications

Product Name	Bailey Bridge
Steel	S355JR, S355J0, S460J0, ASTM Gr65, Gr50, etc
Type	CB100, CB200
Deck	Steel Deck
Standard	AASHTO, BS5400, AS5100, IRC, etc
Annual output	100,000 Tons

Product Overview

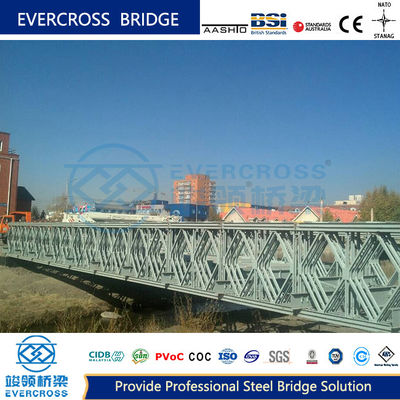

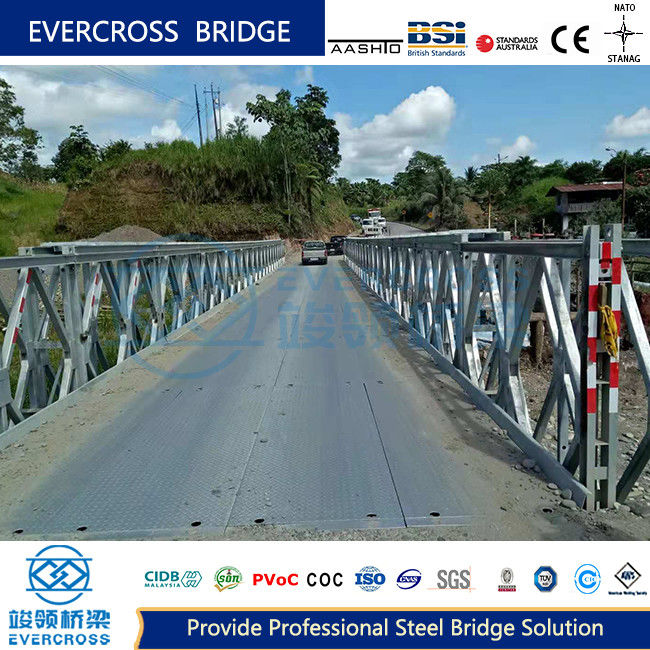

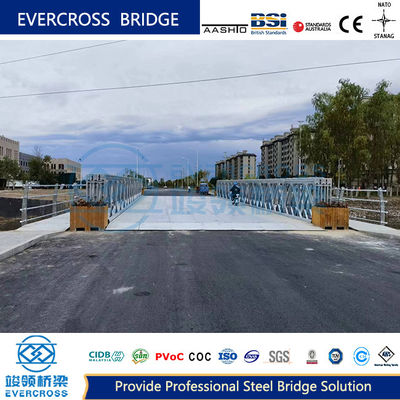

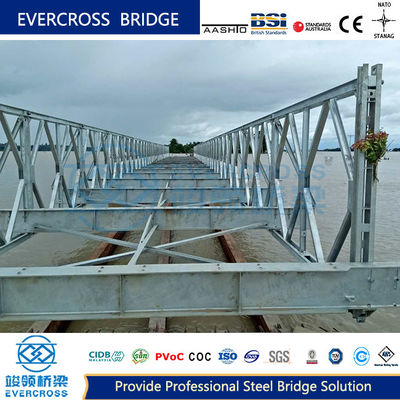

The Bailey Bridge is a fabricated steel structure characterized by lightweight components, easy disassembly, and strong adaptability. It can be rapidly constructed using simple tools and manpower. Originally developed for military use, these bridges are now widely employed in disaster relief, transportation projects, municipal engineering, and bridge reinforcement.

Key Advantages

Heavy loading capacity
Exceptional stability
Long fatigue life
Lightweight construction
Cost-effective solution
Quick and easy assembly

Technical Specifications

Configuration	Single Lane	Double Lane
Standard Roadway	3.15m / 4.2m	7.35m
Span Range	30ft-200ft	30ft-180ft
Load Capacity	Custom designed to project requirements
Bridge Types	CB100, CB200

Compact-200 Bailey Bridge Truss Specifications

Internal Configuration	Allowable Bending Moment [M] (kN*m)	Allowable Shear Force [Q] (kN)	High-shear Union Allowable Shear Force [Q]H (kN)
SS \| SS	1127	257	348
SSR	2254	257	348
DS \| DS	2525	514	696
TS \| TS	3800	771	1044
QS \| QS	5050	1028	1392

Applications

The modular design of Bailey Bridges allows for versatile applications including:

Temporary construction trestle bridges
Suspension bridges and construction platforms
Formwork support for cast-in-place construction
Large tonnage gantry cranes and bridge erecting machines
Emergency disaster relief bridges
Pedestrian footbridges

Technical Standards & Certifications

Steel Grades: EN10025 S355JR, S355J0, S460J0, ASTM A572 GR50/GR65, GB355B/C/D/460C

Certifications: ISO9001, ISO14001, ISO45001, EN1090, CIDB, COC, PVOC, SONCAP

Welding Standards: AWS D1.1/D1.5, AS/NZS 1554

Galvanization: ISO1461, AS/NZS 4680, ASTM-A123, BS1706
