Prefabricated Steel Truss Pedestrian Bridge Bailey Type Platform With Large Load Capacity

Name: Prefabricated Steel Truss Pedestrian Bridge Bailey Type Platform With Large Load Capacity
Brand: EVERCROSS BRIDGE TECHNOLOGY (SHANGHAI) CO.,LTD.
SKU: COMPACT-200; COMPACT-100; CHINA 321 ; PB 100; LSB; GWD; DELTA; 450,etc
Price: 1,500.00 USD
Availability: InStock

Brand Name:	Evercross
Model Number:	COMPACT-200; COMPACT-100; CHINA 321 ; PB 100; LSB; GWD; DELTA; 450,etc
MOQ:	negotiation
Price:	1000USD ~ 2000USD Per ton
Delivery Time:	negotiation
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CNAS; COC; PVOC; SONCAP; CIDB;FORM E;FORM L; FORM M, etc

Product Name:

Bailey Bridge Pier

Loading Standard:

Hl93/Ha+20hb/T44/Class A/B/MLC110/dB24

Steel Grade:

S355/ S460/Gr 55c/Gr350/Gr50/Gr65/GB355/460

Stress Characteristics:

Truss Bridge

Application:

Over Water Bridge, Tractor Bridge, Pontoon, Footbridge, Public Iron Dual Purpose Bridge, Highway Bridge

Standard:

AISI, ASTM, BS, DIN, GB, JIS

Packaging Details:

According to detailed order

Highlight:

Prefabricated Steel Truss Pedestrian Bridge

steel pedestrian bridge Bailey Platform

Large Load Capacity Bailey Type Bridge

Product Description

Prefabricated Steel Truss Pedestrian Bridge Bailey Type Platform With Large Load Capacity

Product Specifications

Product Name	Bailey Bridge Pier
Loading Standard	Hl93/Ha+20hb/T44/Class a/B/MLC110/dB24
Steel Grade	S355/ S460/Gr 55c/Gr350/Gr50/Gr65/GB355/460
Stress Characteristics	Truss Bridge
Application	Over Water Bridge, Tractor Bridge, Pontoon, Footbridge, Public Iron Dual Purpose Bridge, Highway Bridge
Standard	AISI, ASTM, BS, DIN, GB, JIS

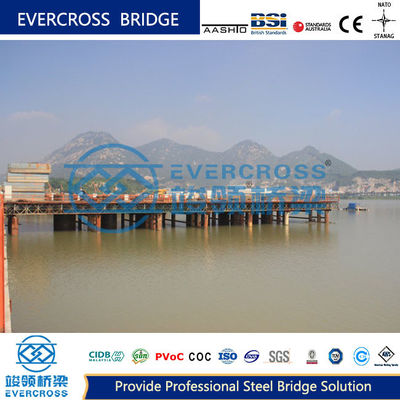

Bailey Type Trestle Bridge And Platform Overview

The Bailey platform, also known as the Bailey bridge, is a modular, portable, and temporary bridge design with origins in military applications that continues to serve diverse construction needs.

During construction, support height and positioning are determined based on site conditions, with appropriate measures implemented to ensure stability. These bridges feature simple structures and cost-effectiveness while meeting rigorous safety and transportation requirements.

Particularly valuable in mountainous regions where conventional land and water transportation cannot meet construction demands, these temporary bridges provide essential access solutions.

Key Features

Exceptional Load-Bearing Capacity

The Bailey platform is engineered to support heavy military vehicles, tanks, artillery, and other substantial loads. Its unique design distributes weight across transom beams and trestle legs, preventing excessive stress on individual components.

Applications

Event Staging Solutions

Ideal for temporary platforms at outdoor events including concerts, festivals, and expositions. Provides stable, elevated surfaces for stages and seating, with the flexibility to create temporary bridges or walkways for improved accessibility and crowd management.

The Bailey platform's modular design, rapid deployment capabilities, and versatility make it invaluable across military, emergency response, construction, and event applications. Its proven ability to support heavy loads while maintaining stability ensures continued relevance in diverse scenarios.
