Bailey Type Trestle Bridge And Platform

The Bailey platform is an important component of the overall Bailey bridge design. Here's a closer look at what it entails:

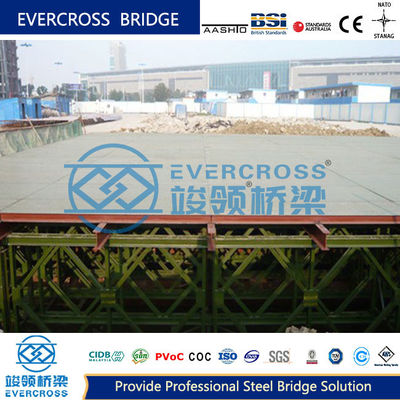

The Bailey platform refers to the horizontal deck or surface of the Bailey bridge that vehicles and pedestrians traverse.

It is constructed using the individual "chesses" - the wooden or steel planks that are laid across the transom beams of the pier structure.

The construction technology principle of the bailey platform is to assemble the frame which is composed of connectors and steel pipes, and fix it in a suitable position to form a stable support system.

When the land and water transportation on both sides of the bridge cannot meet the construction and transportation requirements in the mountain area, the construction bridge should be built. The construction bridge generally has the characteristics of simple structure and low cost, but it should be safe and firm to meet the requirements of engineering construction and transportation.

During the construction process, the appropriate height and position of the support are determined according to the actual situation, and corresponding measures are taken to support and fix.

Ease of Maintenance:

• The modular design of the Bailey platform allows for easy inspection, repair, and maintenance of individual components
• Ensures continued reliability and operational readiness of the bridge, even in challenging field conditions
• Modular construction enables rapid assembly and disassembly
• Highly versatile and reusable design

Construction and Infrastructure:

• Used as a temporary working platform for construction projects
• Building new bridges or repairing existing ones
• Provides stable, elevated surface for workers, equipment, and materials
