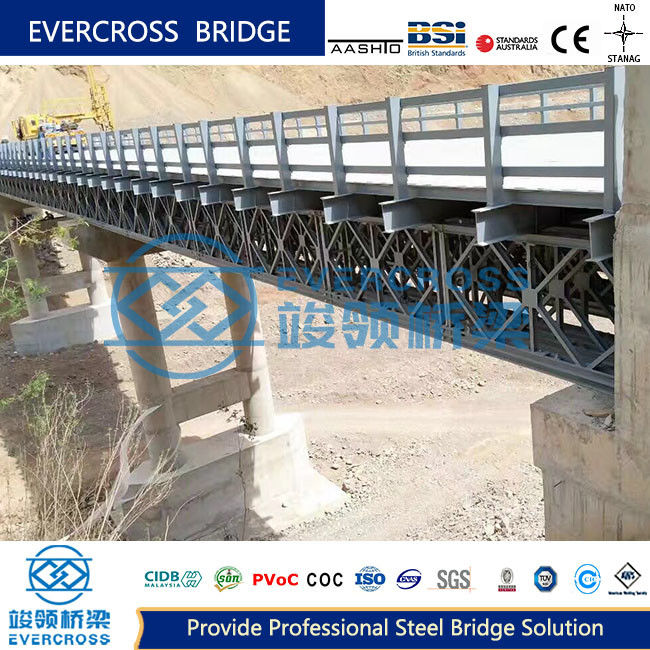

Introduction of Bailey Type Trestle Bridge And Platform

The Bailey Trestle Bridge is a temporary bridge built for engineering construction and transportation needs.

The main structure is composed of Bailey beam, support frame, beam, longitudinal beam, bridge panel, railing, abutment and pier, with large carrying capacity and flexible width design. This kind of construction bridge has low cost and rapid construction, and is widely used in road and bridge construction.

When the land and water transportation on both sides of the bridge can not meet the construction and transportation requirements in the mountain area, the construction bridge should be built. The construction bridge generally has the characteristics of simple structure and low cost, but it should be safe and firm to meet the requirements of engineering construction and transportation.

During the construction process, the appropriate height and position of the support are determined according to the actual situation, and corresponding measures are taken to support and fix.

The construction technology principle of the bailey platform is to assemble the frame which is composed of connectors and steel pipes , and fix it in a suitable position to form a stable support system.

Features of Bailey Type Trestle Bridge And Platform

The Bailey trestle bridge is designed to support a wide range of loads, including military vehicles, heavy equipment, and civilian traffic.

The load-bearing capacity can be increased by using additional panels or by constructing the bridge with multiple decks.

Transportability:

The modular components of the Bailey trestle bridge can be easily transported, often by truck or rail, to the construction site.

The lightweight and compact nature of the individual elements facilitate efficient transportation and handling.

Applications of Bailey Type Trestle Bridge And Platform

Highways, railways, or pipelines.
